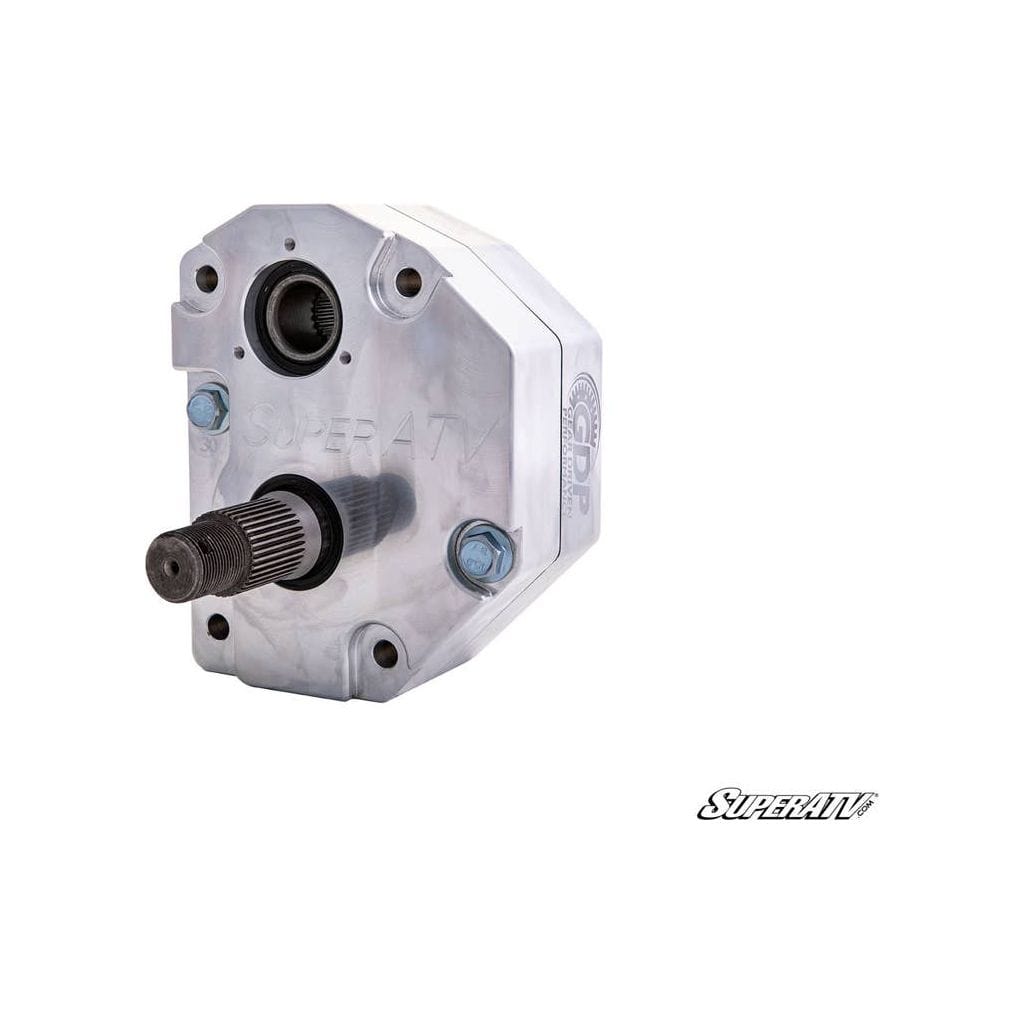

Arctic Cat Wildcat 4" Portal Gear Lift by SuperATV

Gen 3 Portals are Geared for All
SuperATV’s GDP 4” Portal Gear Lift for the Arctic Cat Wildcat is Geared for All. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize your ride to fit your style.

Perfect for Mud
If you move up to a 30% gear reduction, you’ll be ready to take on bigger, sloppier mud holes. That boost in torque means you can dominate monster bounty holes without getting stuck. The lift gives you room for bigger tires to take your Wildcat over-the-top. When you’re done with the mud, a 30% gear reduction can get you through roads, trails, and rocks just as easily.

Perfect for Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.

Perfect for Dunes
Put 4” portals and a 15% gear reduction on your machine and see how fast you can go. You’ll fly up dunes like they’re flat ground and keep your speed up for those wide-open valleys. Portals make dunes awesome.

Perfect for Trails
Get 4” portals and a 15% gear reduction on your machine and take on the trail less traveled. Creek crossings and hills won’t know what hit them when you roll up with all that torque. It brings out your UTV’s true power.

Learn more about how tire size and gear reduction can unleash your machine’s potential.

Better Gears
Our gears are precision ground gears are made with billet 9310 steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road. With fully sealed cast or billet aluminum boxes, nothing gets in or out, so your gears stay pristine for years.

Stronger Housings by Design
We dare you to find housings stronger than what we make for our GDP portals. Just like everything else that goes into this product, our housings are well researched and long tested. And you get a choice—go with cast or USA-made, CNC-machined 6061 billet aluminum. Regardless of what you pick, you’re getting portal housings with strength and reliability that is unmatched.

• Our housings are reinforced in all the right places
• They’re built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

Arctic Cat Wildcat Portal Gear Reduction Recommendationss
Tire Size	Required Suspension Setup with 4" Portals	Recommended 4" Portal Gear Reduction
Up to 34"	Stock	15%
Up to 34"	3.5" Lift Kit	15%
35" to 36"	6" Lift Kit	30%
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.

Patent # 11,299,042
