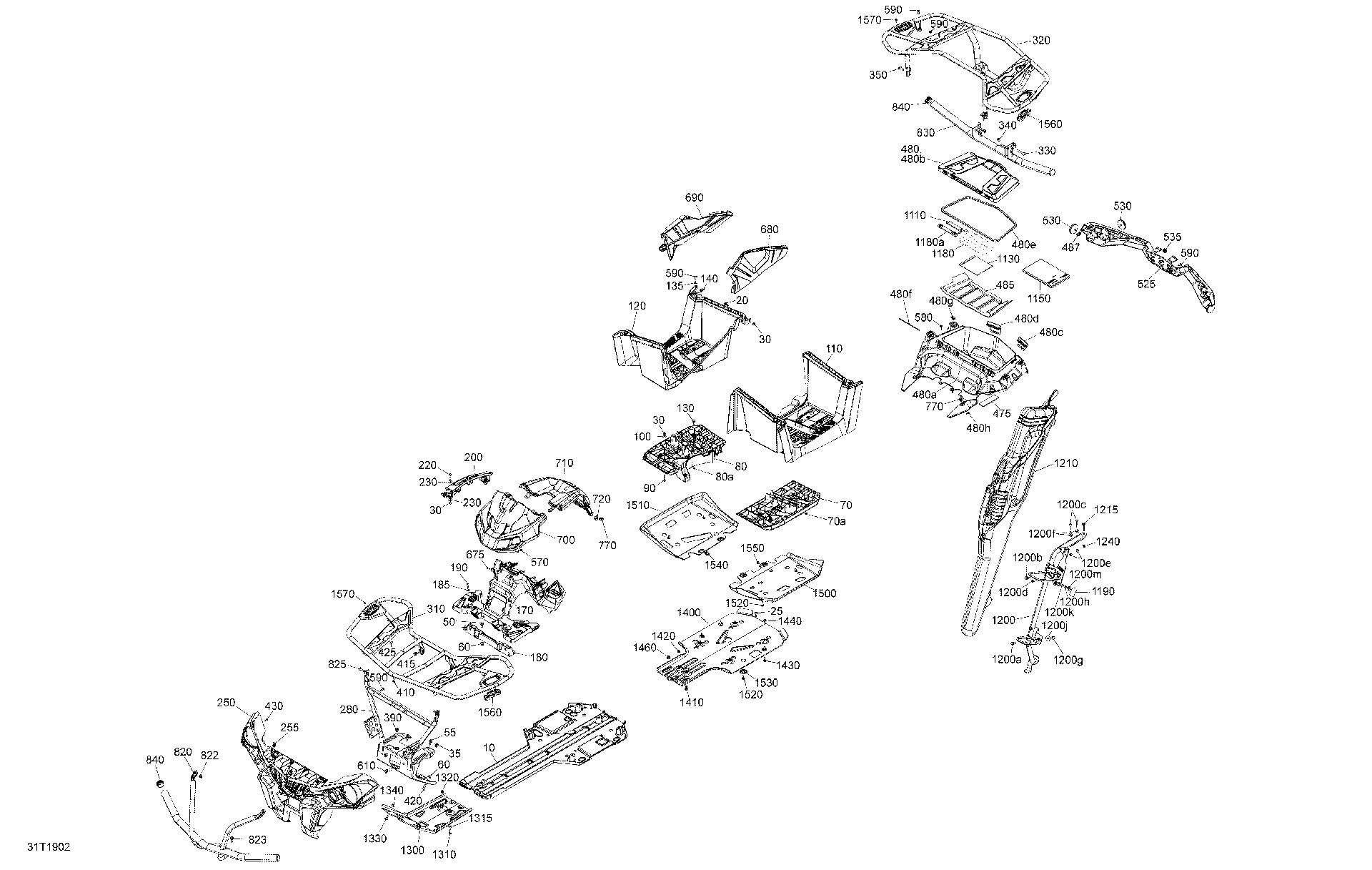

BODY AND ACCESSORIES - 450 EFI - HUNTING EDITION

Prices shown are USD
1200a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207682044
Hex Flange Screw M8x20 by Can-Am
207682044
$1.19 USD

1200b
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207682044
Hex Flange Screw M8x20 by Can-Am
207682044
$1.19 USD

480e
Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
Item Not Available



70a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232862412
Square Nut M6 by Can-Am
232862412
$1.49 USD

80a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232862412
Square Nut M6 by Can-Am
232862412
$1.49 USD

1200e
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261494
Hex Elastic Flange Nut M6 by Can-Am
233261494
$1.59 USD

1200h
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000135
Hex Nut M6 by Can-Am
250000135
$0.53 USD

1200c
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000748
Torx Screw M6x45 by Can-Am
250000748
$1.99 USD

1200d
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000755
Torx Screw M6x16 by Can-Am
250000755
$0.89 USD

480g
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100198
Panel Nut M6x1.0 by Can-Am
250100198
$2.19 USD

1200k
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250200039
Flat Washer by Can-Am
250200039
$0.76 USD

1200j
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 234082670
Stainless Steel Flat Washer by Can-Am
234082670
$2.19 USD

1200m
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 291003688
Rubber Bumper by Can-Am
$14.49 USD

1200g
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281464
Elastic Flange Nut M8 by Can-Am
233281464
$1.09 USD

480h
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 414859400
Frame Cap by Can-Am
$2.99 USD

1180a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 529000085
Socket Wrench 14/16mm by Can-Am
529000085
$6.55 USD

480a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715004412
Storage Cover by Can-Am
715004412
$219.99 USD

480c
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007448
Box Rear Latch (Left) by Can-Am
705007448
$11.99 USD

480f
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007531
Retaining Rod by Can-Am
705007531
$78.99 USD

480d
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007921
Box Rear Latch (Right) by Can-Am
705007921
$13.49 USD

1200f
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705202223
Offset Washer by Can-Am
705202223
$4.14 USD

480b
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715004412
Storage Cover by Can-Am
715004412
$219.99 USD

10
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715002374
Protective Plate Kit by Can-Am
715002374
$64.49 USD

20
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662054
Hex Flange Screw M6x20 by Can-Am
207662054
$1.09 USD

25
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207762044
Carriage Bolt M6x20 by Can-Am
207762044
$1.59 USD

30
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261434
Flange Elastic Nut M6 by Can-Am
233261434
$4.49 USD

35
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233201434
Hex Flange Elastic Nut M10 by Can-Am
233201434
$2.09 USD

50
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207682044
Hex Flange Screw M8x20 by Can-Am
207682044
$1.19 USD

55
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207582544
Hex Flange Screw M8x25 Scotch Grip by Can-Am
207582544
$1.69 USD

60
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281434
Hex Flange Elastic Nut M8 by Can-Am
233281434
$2.19 USD

70
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705011540
Structural Footboard (Left) by Can-Am
705011540
$119.99 USD

80
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705011542
Structural Footboard (Right) by Can-Am
705011542
$109.99 USD

90
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207763554
Carriage Bolt M6x35 by Can-Am
207763554
$2.19 USD

100
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 234062410
Flat Washer 6mm by Can-Am
234062410
$0.79 USD

110
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007040
Step (Left) by Can-Am
705007040
$97.99 USD

120
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007723
Footrest (Right) by Can-Am
705007723
$104.99 USD

130
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207661654
Hex Flange Screw M6x16 by Can-Am
207661654
$2.19 USD

135
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 224061201
Flat Washer by Can-Am
224061201
$1.39 USD

140
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100198
Panel Nut M6x1.0 by Can-Am
250100198
$2.19 USD

170
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715006101
Console Support by Can-Am
715006101
$63.99 USD

180
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705010406
Console Support Insert by Can-Am
705010406
$16.99 USD

185
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 234062600
Flat Washer M6 Stainless by Can-Am
234062600
$0.79 USD

190
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 241152540
Hex Flange Screw K50x2.24x25 by Can-Am
241152540
$4.49 USD

200
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715003973
Gear Shift Gate Kit by Can-Am
715003973
$26.99 USD

220
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207563034
Hex Flange Screw M6x30 Scotch Grip by Can-Am
207563034
$2.19 USD

230
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 224061201
Flat Washer by Can-Am
224061201
$1.39 USD

250
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705009334
Front Facia by Can-Am
705009334
$119.99 USD

255
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100198
Panel Nut M6x1.0 by Can-Am
250100198
$2.19 USD

280
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705017337
Front Frame [Includes 280 to 280a6] by Can-Am
705017337
$264.99 USD

310
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705017596
Front Luggage Rack {Deep Black} by Can-Am
705017596
$232.99 USD

320
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715005986
Rear Luggage Rack {Black} by Can-Am
715005986
$232.99 USD

330
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000761
Torx Truss Screw M8x50 by Can-Am
250000761
$7.69 USD

340
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281464
Elastic Flange Nut M8 by Can-Am
233281464
$1.09 USD

350
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250001016
Hex Flange Screw M8x25 S.Grip by Can-Am
250001016
$1.49 USD

390
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293450307
Insert Half Hex Body M8x1.25 by Can-Am
293450307
$2.69 USD

410
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 210261250
Hex Flange Screw M6x12 by Can-Am
210261250
$1.99 USD

415
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207582044
Hex Flange Screw M8x20 Scotch Grip by Can-Am
207582044
$1.69 USD

420
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000886
Torx Screw M8x30 by Can-Am
250000886
$2.19 USD

425

Item No Longer Available



430

Item No Longer Available



475

Item No Longer Available



480
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715004412
Storage Cover by Can-Am
715004412
$219.99 USD

485

Item No Longer Available



487
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100198
Panel Nut M6x1.0 by Can-Am
250100198
$2.19 USD

525

Item No Longer Available



530

Item No Longer Available



535

Item No Longer Available



570

Item No Longer Available



580

Item No Longer Available



590

Item No Longer Available



610

Item No Longer Available



675

Item No Longer Available



680

Item No Longer Available



690

Item No Longer Available



700

Item No Longer Available



710

Item No Longer Available



720

Item No Longer Available



770

Item No Longer Available



820

Item No Longer Available



822
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281464
Elastic Flange Nut M8 by Can-Am
233281464
$1.09 USD

823
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207582544
Hex Flange Screw M8x25 Scotch Grip by Can-Am
207582544
$1.69 USD

825

Item No Longer Available



830

Item No Longer Available



840

Item No Longer Available



1110

Item No Longer Available



1130

Item No Longer Available



1150

Item No Longer Available



1180

Item No Longer Available



1190

Item No Longer Available



1200
Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
Item Not Available



1210

Item No Longer Available



1215

Item No Longer Available



1240
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261494
Hex Elastic Flange Nut M6 by Can-Am
233261494
$1.59 USD

1300

Item No Longer Available



1310

Item No Longer Available



1315

Item No Longer Available



1320
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261434
Flange Elastic Nut M6 by Can-Am
233261434
$4.49 USD

1330

Item No Longer Available



1340
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281434
Hex Flange Elastic Nut M8 by Can-Am
233281434
$2.19 USD

1400

Item No Longer Available



1410
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207762044
Carriage Bolt M6x20 by Can-Am
207762044
$1.59 USD

1420
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261434
Flange Elastic Nut M6 by Can-Am
233261434
$4.49 USD

1430
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662054
Hex Flange Screw M6x20 by Can-Am
207662054
$1.09 USD

1440

Item No Longer Available



1460
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281434
Hex Flange Elastic Nut M8 by Can-Am
233281434
$2.19 USD

1500

Item No Longer Available



1510

Item No Longer Available



1520
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662054
Hex Flange Screw M6x20 by Can-Am
207662054
$1.09 USD

1530

Item No Longer Available



1540
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100198
Panel Nut M6x1.0 by Can-Am
250100198
$2.19 USD

1550

Item No Longer Available



1560

Item No Longer Available



1570

Item No Longer Available



1600

Item No Longer Available



1610

Item No Longer Available




BODY AND ACCESSORIES - 450 EFI - HUNTING EDITION - 2019 CAN AM OUTLANDER 450 EFI

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: CAN-AM-ATV-SCHEM-24347

Can-Am UTV/ATV OEM Parts Schematic: The Ultimate Precision Repair Tool

Schematic Group: Genuine OEM CAN-AM - BODY AND ACCESSORIES - 450 EFI - HUNTING EDITION - 2019 CAN AM OUTLANDER 450 EFI

Whether you are deep-cleaning a Can-Am Outlander after a mud run or performing a precision engine rebuild on a Maverick RR X MR, accuracy is everything. Using a Can-Am UTV/ATV OEM Parts Schematic from Witchdoctors.com is the only way to ensure every seal, bolt, and bearing is an exact factory match.

Our high-resolution diagrams act as your digital blueprint, showing you the precise location and assembly order for every component. By choosing Genuine Original Equipment Manufacturer (OEM) parts, you guarantee that your Can-Am maintains the same engineering standards, safety ratings, and resale value it had the day it left the assembly line.

Extensive Can-Am Model Fitment

We host a massive database of parts diagrams covering the latest 2026 models back to 2015. Browse our schematics for these popular Can Am families:

Popular UTV Models:

Popular ATV Models:

Important: ⚠️ Always check your owner’s manual or the fitment tab on witchdoctors.com to make sure this part fits your specific year, make, and model before ordering.

Why Trust Genuine Can-Am OEM Parts?

While aftermarket parts might save a few dollars upfront, they rarely meet the strict tolerances required for high-performance off-roading. Using our Can-Am UTV/ATV OEM Parts Schematic ensures:

  • Perfect Compatibility: Every part is designed specifically for your frame and engine configuration. No "universal" fitment headaches.
  • Factory-Grade Materials: OEM components are built to handle the heat, vibration, and torque Can-Am vehicles are known for.
  • Visual Confidence: Our schematics prevent the "where does this washer go?" mystery by providing an exploded view of the entire assembly.
  • Maximum Performance: Keep your machine running like new by using the same parts Can-Am engineers used during development.

How to Use Our Parts Finder

Finding your part is simple. Select your year and model, then browse the specific system you need—such as the Cylinder Head Cover, CVT Assembly, or Front Suspension. Once you locate the item on the visual diagram, the corresponding part number and price will be listed for immediate checkout.

Frequently Asked Questions (FAQs)

What is a Can-Am OEM Parts Schematic?

It is an "exploded view" diagram of your vehicle's specific systems (like the engine, suspension, or brakes). It allows you to identify every individual part by its official OEM part number.

How do I find my specific Can-Am part number?

Simply select your year and model on Witchdoctors.com. Browse the relevant system schematic, find the item on the drawing, and click the corresponding number to see the part name and price.

Why should I buy from Witchdoctors.com?

We provide fast shipping, competitive pricing, and a user-friendly interface that makes finding complex Can-Am parts easy for both DIY riders and professional mechanics.

Restore Your Ride Today

Don't let a missing clip or a worn-out belt end your weekend. Trust the visual accuracy of our Can-Am UTV/ATV OEM Parts Schematics to get the job done right the first time.

Shop Can-Am OEM Parts Schematics Now

Are You Looking to Find Great Places & Adventurous Trails to Ride Your Can-AM UTV, Side by Side or ATV? Check out these highly recommended places:

  1. Mulberry Mountain in Arkansas
  2. WindRock Park in Tennessee
  3. Look Here in Ohio

General Safety Warning & Installation Requirements

Your safety is our top priority. Whether you are maintaining a Victory® or Indian® Motorcycle, or servicing a UTV, ATV, or Side-by-Side, proper installation is vital to the performance and safety of your vehicle.

Important:
Warning: Failure to follow manufacturer-specified installation procedures and safety requirements can result in mechanical failure, loss of vehicle control, serious injury, or death.

Important Fitment Disclosure

At Witchdoctors, we want to ensure you get back on the road or trail as quickly as possible. Correct fitment is the most critical step in purchasing parts for your Victory® or Indian® Motorcycle. Also for your Polaris®, CFMoto®, Arctic Cat®, Yamaha®, Honda®, Can-Am®, Kawasaki® UTV and ATV.

Verification Required: While we strive for 100% accuracy, vehicle manufacturers often make mid-year production changes. Always verify your specific year, make, and model before finalizing your order.
Read More

Shipping

Qualifying Retail orders $159.99 or more will receive free ground shipping. Free Shipping Terms and conditions.

All orders over $500 will require a signature.

Please see International Shipping page for orders shipping outside the US.

See our full Shipping Policy page for further details.

Product Availability

We show real time product availability. These products normally ship the same business day but may ship from one of our warehouses across the country. If an item requires additional processing time you will be notified.

Returns

If your order arrives and it is not right, we will we'll fix it. We promise!

Doesn't fit or just not happy with it? You can return any new, unopened, unused or unaltered item within 30 business days of delivery receipt of your item. We will issue a refund to your original payment method.

See our full Return Policy for all of the pertinent details.
