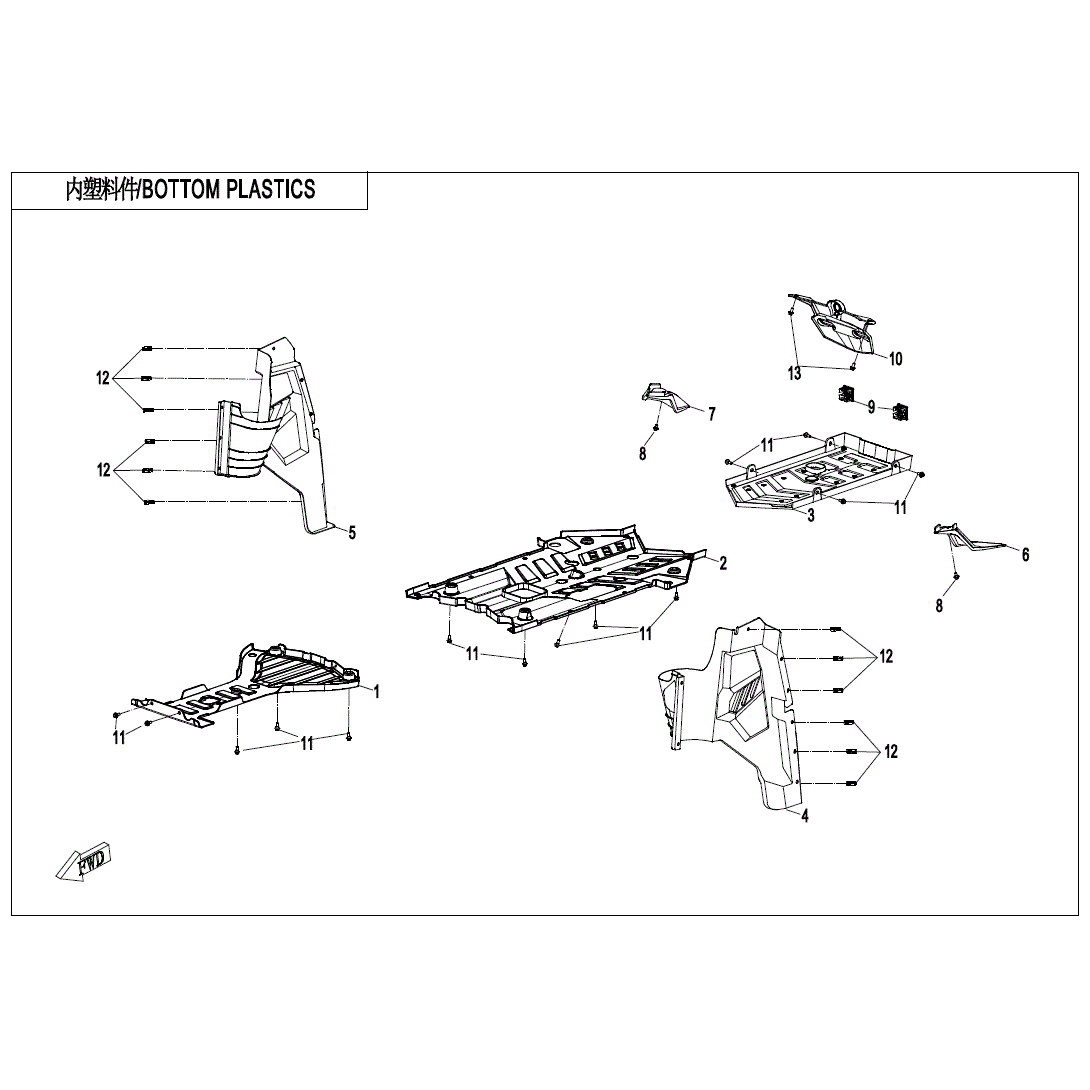

BOTTOM PLASTICS

Prices shown are USD
1
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWA-044021
Front Skid Plate by CFMOTO
9AWA-044021
$49.99 USD

2
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWA-044022
Middle Skid Plate by CFMOTO
9AWA-044022
$99.99 USD

3
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWV-044023-4000
Rear Skid Plate by CFMOTO
9AWV-044023-4000
$33.99 USD

4
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWA-044031
Upper Inner Fender, Left by CFMOTO
9AWA-044031
$39.99 USD

5
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWA-044032
Upper Inner Fender, Right by CFMOTO
9AWA-044032
$29.99 USD

6
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWA-044043
Rear A-Arm Guard, Left by CFMOTO
9AWA-044043
$8.99 USD

7
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWA-044044
Rear A-Arm Guard, Right by CFMOTO
9AWA-044044
$8.99 USD

8
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 8010-040038
Bolt M6x22 by CFMOTO
8010-040038
$1.09 USD

9
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWA-044051
Frame Tube Plug by CFMOTO
9AWA-044051
$7.99 USD

10
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AW#-044061-2000
License Plate Mounting Bracket by CFMOTO
9AW#-044061-2000
$10.99 USD

11
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 8010-000004
Bolt M6x14 by CFMOTO
8010-000004
$1.09 USD

12
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9060-040310
Push Rivet by CFMOTO
9060-040310
$1.09 USD

13
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30006-060016810
Bolt by CFMOTO
30006-060016810
$1.09 USD
