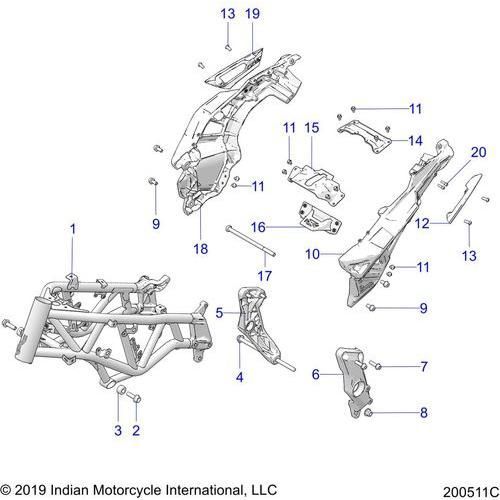

Chassis, Frame - 2020 Indian Ftr 1200 Rally Schematic-24450 OEM Schematic
Chassis, Frame - 2020 Indian Ftr 1200 Rally Schematic-24450 OEM Schematic

Chassis, Frame

Ref #1 Black welded steel main frame for Indian FTR 1200 motorcycle with multiple mounting points.

Main Frame Welded Black by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1023965-266 For Victory & Indian Motorcycles –...

$1,739.99 USD

SKU: 1023965-266
More Info
Ref #2 Silver metallic hex flange screw with a smooth cylindrical shaft and wide hexagonal head.

Hex Flanged Screw, M12X1.75X40 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7521028 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7521028
More Info
Ref #3 Headmount Spacer by Indian

Headmount Spacer by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5142176 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 5142176
More Info
Ref #4 Long black metal screw with hexagonal flange head designed for motorcycle assembly.

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7519881 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 7519881
More Info
Ref #5 The Frame-Mid RH by Polaris is a black metal OEM part featuring two mounting holes at each end, a central threaded opening, and two small bolts on top; it’s compatible with Polaris or Indian motorcycle models.

Mid Frame, Right by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5141988-463 For Victory & Indian Motorcycles –...

$289.99 USD

SKU: 5141988-463
More Info
Ref #6 The Frame-Mid LH by Polaris is a black metal part with three mounting holes and a central circular opening, designed for Indian motorcycles and shown against a white background.

Mid Frame, Left by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5141987-463 For Victory & Indian Motorcycles –...

$289.99 USD

SKU: 5141987-463
More Info
Ref #7 Silver metal socket head flange screw with smooth cylindrical shaft and flange base.

Socket Head Flange Screw, M10X1.5X35 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7520969 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7520969
More Info
Ref #8 Black hex flange Nylok nut with M12x1.75 thread and nylon locking insert.

Hex Flange Nylok Nut M12X1.75 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547441 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7547441
More Info
Ref #9 Silver cylindrical socket head flange screw with smooth shaft and flat flange base.

Socket Head Flange Screw, M10X1.5X20 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7520968 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7520968
More Info
Ref #10 Rear Subframe, Left by Indian

Rear Subframe, Left by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5141989-463 For Victory & Indian Motorcycles –...

$444.99 USD

SKU: 5141989-463
More Info
Ref #11 Bolt by Polaris 7517704 OEM Screw

Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517704 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7517704
More Info
Ref #12 Handle-Pass LH Fbk by Polaris 5142162-463 Passenger Handle

Passenger Handle, Left Flat Black by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5142162-463 For Victory & Indian Motorcycles –...

$104.99 USD

SKU: 5142162-463
More Info
Ref #13 Screw-Hxbh-M8X1.25X20 8.8 Zpb by Polaris 7521291 OEM Screw

Hex Button Head Screw, M8X1.25X20 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7521291 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7521291
More Info
Ref #14 Seat Bracket Support Rear by Indian

Seat Bracket Support Rear by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5266076 For Victory & Indian Motorcycles –...

$59.99 USD

SKU: 5266076
More Info
Ref #15 Seat Bracket Support Front by Indian

Seat Bracket Support Front by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5267252 For Victory & Indian Motorcycles –...

$69.99 USD

SKU: 5267252
More Info
Ref #16 Black and gray metal tank support bracket with triangular cutout design and mounting points.

Assembly Tank Support Bottom by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1024794 For Victory & Indian Motorcycles –...

$84.99 USD

SKU: 1024794
More Info
Ref #17 Silver metal hex head screw with long threaded shaft, size M12x1.75x210 by Polaris.

Hex Head Screw, M12X1.75X210 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7520931 For Victory & Indian Motorcycles –...

$7.99 USD

SKU: 7520931
More Info
Ref #18 Rear Subframe, Right by Indian

Rear Subframe, Right by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5141990-463 For Victory & Indian Motorcycles –...

$444.99 USD

SKU: 5141990-463
More Info
Ref #19 Handle-Pass LH Fbk by Polaris 5142163-463 Passenger Handle

Passenger Handle, Right Flat Black by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5142163-463 For Victory & Indian Motorcycles –...

$104.99 USD

SKU: 5142163-463
More Info
Ref #20 Chin Spoiler Short Bolt by Polaris 7517305 Spoiler / Chin Fairing OEM Hardware

Chin Spoiler Short Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517305 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7517305
More Info

Chassis, Frame - 2020 Indian Ftr 1200 Rally

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-24450

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
