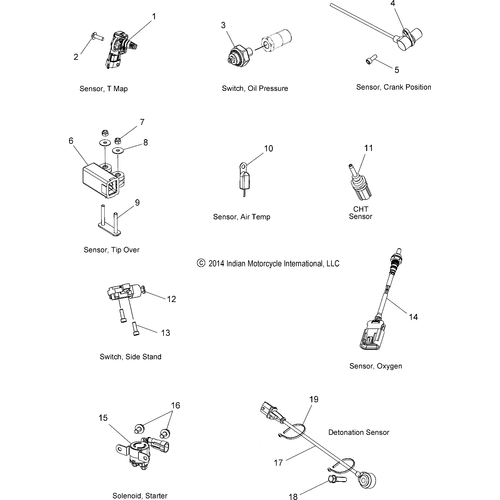

Electrical, Components 2 N16ccdaa All Options - 2016 Indian Chief Dark Horse Schematic-27945 OEM Schematic
Electrical, Components 2 N16ccdaa All Options - 2016 Indian Chief Dark Horse Schematic-27945 OEM Schematic

Electrical, Components 2 N16ccdaa All Options

Ref #1 Sensor, T-Map by Polaris 2411528 MAP Sensor

Map Sensor by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2411528 For Victory & Indian Motorcycles –...

$125.99 USD

SKU: 2411528
More Info
Ref #2 Silver metal screw with flat round head and smooth cylindrical shaft.

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7518570 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7518570
More Info
Ref #3 Oil Pressure Switch by Polaris 4080746 Oil Pressure Sensor

Oil Pressure Switch by Polaris

Replace worn out or missing oil pressure switch on your Indian or Victory motorcycle with...

$54.99 USD

SKU: 4080746
More Info
Ref #4 Crank Position Sensor by Polaris 2411589 Crankshaft Position Sensor

Crankshaft Position Sensor by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2411589 For Victory & Indian Motorcycles –...

$99.99 USD

SKU: 2411589
More Info
Ref #5 Screw by Polaris 7517272 Drive Pulley Hardware

Drive Pulley Socket Head Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517272 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7517272
More Info
Ref #6 Tip Over Sensor by Polaris 4011296 OEM Hardware

Tip Over Sensor by Polaris

Replace your Tip Over Sensor on your Victory motorcycle with genuine OEM Victory Polaris parts...

$99.99 USD

SKU: 4011296
More Info
Ref #7 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7547126

Nut by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547126 For Victory & Indian Motorcycles –...

$3.99 USD

SKU: 7547126
More Info
Ref #8 Washer, Flat by Polaris 7556477 OEM Washer

Flat Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556477 For Victory & Indian Motorcycles –...

$3.99 USD

SKU: 7556477
More Info
Ref #9 Plate, Stud, M4 by Polaris 1016624 Stud

Stud Plate M4 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 1016624 For Victory & Indian Motorcycles –...

$34.99 USD

SKU: 1016624
More Info
Ref #10 Air Temp Sensor / Gauge Wire Harness by Polaris 2410443 Sensor Wire Harness

Air Tempurature Sensor / Gauge Wire Harness by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2410443 For Victory & Indian Motorcycles –...

$84.99 USD

SKU: 2410443
More Info
Ref #11 Sensor, Cylinder Head Temp by Polaris 4014970 Cylinder Head Temp Sensor

Cylinder Head Temperature Sensor by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 4014970 For Victory & Indian Motorcycles –...

$79.99 USD

SKU: 4014970
More Info
Ref #12 A black Switch, Kickstand [Intl Only] by Polaris with cable and connector lies on a white background. Designed as an OEM Victory Polaris kickstand replacement, it has two mounting holes and a push-rod on one end.

Kickstand Switch [Intl] by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 4014289 For Victory & Indian Motorcycles –...

$79.99 USD

SKU: 4014289
More Info
Ref #13 Screw by Polaris 7516610 OEM Screw

Socket Head Screw M5x0.8x10 8.8 by Polaris

Polaris UTV/ATV OEM Bolts, Nuts, Clips and Hardware - Available at buywitchdoctors.com Product Specifications: Genuine...

$4.99 USD

SKU: 7516610
More Info
Ref #14 Oxygen Sensor by Polaris 4016021 Oxygen Sensor

Oxygen Sensor by Polaris

Polaris UTV/ATV OEM Sensors - Available at buywitchdoctors.com Product Specifications: Genuine OEM Polaris Oxygen Sensor,...

$209.99 USD

SKU: 4016021
More Info
Ref #15 Starter Solenoid by Polaris 4012001 Starter Repair

Starter Solenoid by Polaris

Is your Indian or Victory motorcycle having starter problems? It might be your starter solenoid....

$109.99 USD

SKU: 4014471
More Info
Ref #16 Bolt by Polaris 7517704 OEM Screw

Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517704 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7517704
More Info
Ref #17 Black rubber detonation/knock sensor with circular sensor end and two-pin connector on cable.

Detonation/Knock Sensor Bosch by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2410369 For Victory & Indian Motorcycles –...

$99.99 USD

SKU: 2410369
More Info
Ref #18 Silver hex head screw with smooth cylindrical shaft and fine threads, M8x1.25x30 size.

Screw, M8X1.25X30 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517262 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 7517262
More Info
Ref #19 The Zip Tie by Polaris, shown diagonally on a white background, features a ridged side and rectangular locking head—ideal for securing OEM Victory Polaris or other Victory motorcycle parts.

Zip Tie by Polaris

Polaris UTV/ATV OEM Bolts, Nuts, Clips and Hardware - Available at buywitchdoctors.com Product Specifications: Genuine...

$2.99 USD

SKU: 7080138
More Info

Electrical, Components 2 N16ccdaa All Options - 2016 Indian Chief Dark Horse

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-27945

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
