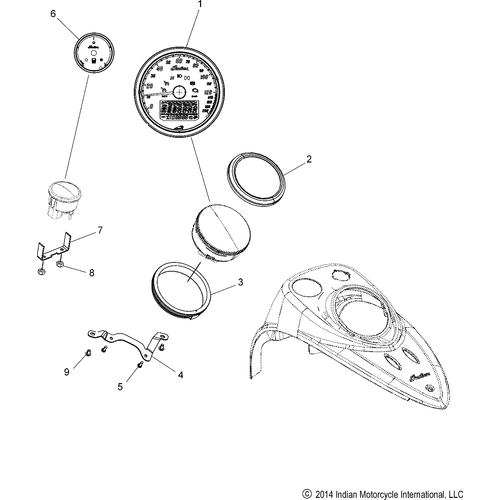

Electrical, Instrument Cluster All Options - 2016 Indian Chief Classic/Chief Vintage Schematic-28016 OEM Schematic
Electrical, Instrument Cluster All Options - 2016 Indian Chief Classic/Chief Vintage Schematic-28016 OEM Schematic

Electrical, Instrument Cluster All Options

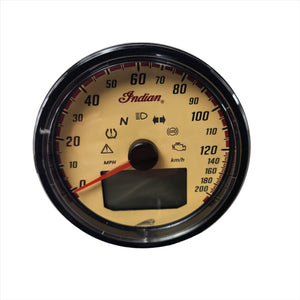

Ref #1 Assembly Cluster Cpia3 by Polaris 3280617 OEM Hardware

Assembly Cluster Cpia3 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3280617 For Victory & Indian Motorcycles –...

$504.99 USD

SKU: 3280617
More Info
Ref #2 Speedometer Bezel Cover Chrome by Indian

Speedometer Bezel Cover Chrome by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5450176-156 For Victory & Indian Motorcycles –...

$74.99 USD

SKU: 5450176-156
More Info
Ref #3 Grommet, Gauge by Polaris 5438389 OEM Grommet

Gauge Grommet by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5438389 For Victory & Indian Motorcycles –...

$3.99 USD

SKU: 5438389
More Info
Ref #4 Speedometer Mount Bracket by Indian

Speedometer Mount Bracket by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5257054 For Victory & Indian Motorcycles –...

$44.99 USD

SKU: 5257054
More Info
Ref #5 Screw by Polaris 7518864 OEM Screw

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7518864 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7518864
More Info
Ref #6 Fuel Gauge, Indian Ddbi 2.0 by Indian

Fuel Gauge, Indian Ddbi 2.0 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3280825 For Victory & Indian Motorcycles –...

$504.99 USD

SKU: 3280825
More Info
Ref #6 Black round fuel gauge plug with radial ribs and smooth outer edge.

Fuel Gauge Plug by Indian

Replace your Plug Fuel Gauge by Polaris on your Indian motorcycle with genuine OEM Indian...

$6.99 USD

SKU: 5451840
More Info
Ref #7 Fuel Gauge Bracket by Indian

Fuel Gauge Bracket by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5258186 For Victory & Indian Motorcycles –...

$10.99 USD

SKU: 5258186
More Info
Ref #8 Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
products.product.sold_out

Item Not Available

This item is no longer available. Please contact us for possible substitutes.    CONTACT US

$0.00 USD

SKU:
More Info
Ref #9 Black button head cap screw with hex socket and threaded shaft.

Button Head Cap Screw-M5X0.8X8 10.9 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7519879 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7519879
More Info

Electrical, Instrument Cluster All Options - 2016 Indian Chief Classic/Chief Vintage

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-28016

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
