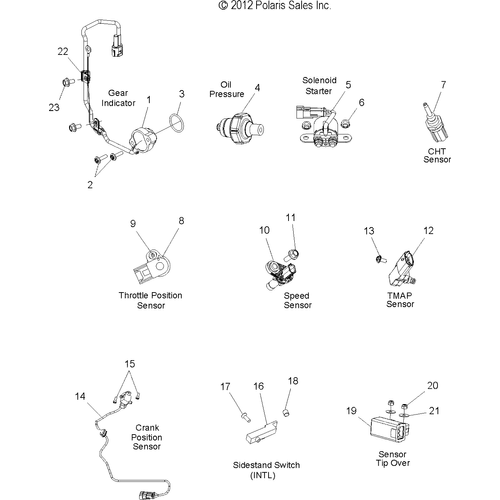

Electrical, Switches, Sensors And Components 1 - 2017 Victory Vision All Options Schematic 518 OEM Schematic
Electrical, Switches, Sensors And Components 1 - 2017 Victory Vision All Options Schematic 518 OEM Schematic

Electrical, Switches, Sensors And Components 1

Ref #1 Gear Indicator Switch by Polaris 4013956 Gear Position Sensor

Gear Indicator Switch by Polaris

Replace your Gear Indicator Switch on your Victory motorcycle with genuine OEM Victory Polaris parts...

$64.99 USD

SKU: 4013956
More Info
Ref #2 Black cylindrical screw with a wide flat flange base and threaded bottom section.

Screw by Polaris

Replace your Screw on your Victory motorcycle with genuine OEM Victory Polaris parts from Witchdoctors....

$5.99 USD

SKU: 7518338
More Info
Ref #3 A black O-Ring by Polaris, compatible with OEM Victory Polaris parts, displayed on a white background.

O-Ring by Polaris

Replace your O-Ring on your Victory motorcycle with genuine OEM Victory Polaris parts from Witchdoctors....

$1.99 USD

SKU: 5412530
More Info
Ref #4 Oil Pressure Switch by Polaris 4080746 Oil Pressure Sensor

Oil Pressure Switch by Polaris

Replace worn out or missing oil pressure switch on your Indian or Victory motorcycle with...

$54.99 USD

SKU: 4080746
More Info
Ref #5 Starter Solenoid by Polaris 4012001 Starter Repair

Starter Solenoid (Replaced by 4081641) by Polaris

Is your Indian or Victory motorcycle having starter problems? It might be your starter solenoid....

$109.99 USD

SKU: 4014471
More Info
Ref #6 Flanged Nut by Polaris 7547270 OEM Nut

Flange Nut by Polaris

Replace your Nut on your Victory motorcycle with genuine OEM Victory Polaris parts from Witchdoctors....

$4.99 USD

SKU: 7547270
More Info
Ref #7 Sensor, Cylinder Head Temp by Polaris 4014970 Cylinder Head Temp Sensor

Cylinder Head Temperature Sensor by Polaris

Replace your Sensor, Cylinder Head Temp on your Victory motorcycle with genuine OEM Victory Polaris...

$74.99 USD

SKU: 4014970
More Info
Ref #8 Sensor, Throttle Position by Polaris 4012101 Throttle Position Sensor

Throttle Position Sensor by Polaris

Replace your Sensor, Throttle Position on your Victory motorcycle with genuine OEM Victory Polaris parts...

$446.49 USD

SKU: 4012101
More Info
Ref #9 Throttle Position Sensor Screw by Polaris 7518901 OEM Screw

Throttle Position Sensor Screw by Polaris

Replace your defective Throttle Position Sensor Screw with an OEM replacement #9 in the schematicNeed...

$5.99 USD

SKU: 7518901
More Info
Ref #10 Speed Sensor by Polaris 4011884 Wheel Speed Sensor

Wheel Speed Sensor by Polaris

Replace an inaccurate or missing speed sensor on your Indian or Victory motorcycle with genuine...

$229.99 USD

SKU: 4011884
More Info
Ref #11 A close-up of a single black Screw by Polaris with washer, partially threaded, against a plain white background—ideal for OEM Victory Polaris or other Victory motorcycle parts.

Screw by Polaris

Replace your Screw on your Victory motorcycle with genuine OEM Victory Polaris parts from Witchdoctors....

$12.99 USD

SKU: 7517750
More Info
Ref #12 Map Sensor by Polaris 2410422 MAP Sensor
products.product.sold_out

Map Sensor (Replaced by 2411528) by Polaris

Replace your Sensor, T-Map on your Victory motorcycle with genuine OEM Victory Polaris parts from...

$86.99 USD

SKU:
More Info
Ref #14 Crank Position Sensor by Polaris 4012280 Crankshaft Position Sensor

Crankshaft Position Sensor by Polaris

Replace a worn out or missing crankshaft position sensor on your Victory Cross Country, Cross...

$134.99 USD

SKU: 4012280
More Info
Ref #15 Crank Position Sensor Screw by Polaris 7518045 OEM Screw

Crank Position Sensor Screw by Polaris

Sold Each

$12.99 USD

SKU: 7518045
More Info
Ref #16 Switch, Side Stand [Apla] by Polaris 4013130 Kickstand Repair

Kickstand Switch by Polaris

Replace your Switch, Side Stand on your Victory motorcycle with genuine OEM Victory Polaris parts...

$44.99 USD

SKU: 4013130
More Info
Ref #17 Black metal screw with flat head and Phillips drive, short cylindrical threaded body.

Screw by Polaris

Replace your Screw [Apla] on your Victory motorcycle with genuine OEM Victory Polaris parts from...

$5.99 USD

SKU: 7519276
More Info
Ref #18 Black cylindrical kickstand magnet with smooth surface and flat ends.

Kickstand Magnet by Polaris

Replace your Magnet, Side Stand [Apla] on your Victory motorcycle with genuine OEM Victory Polaris...

$8.99 USD

SKU: 4013131
More Info
Ref #19 Tip Over Sensor by Polaris 4011296 OEM Hardware

Tip Over Sensor (Replaced by 4080957) by Polaris

Replace your Tip Over Sensor on your Victory motorcycle with genuine OEM Victory Polaris parts...

$99.99 USD

SKU: 4011296
More Info
Ref #20 Nut by Polaris 7547126 OEM Nut

Nut by Polaris

Replace your Nut on your Victory motorcycle with genuine OEM Victory Polaris parts from Witchdoctors....

$3.99 USD

SKU: 7547126
More Info
Ref #21 Washer, Flat by Polaris 7556477 OEM Washer

Flat Washer by Polaris

Replace your Washer, Flat on your Victory motorcycle with genuine OEM Victory Polaris parts from...

$3.99 USD

SKU: 7556477
More Info
Ref #22 The Clamp-Rear Brake by Polaris is a metal P-clamp with a black rubber coating and two flat, holed ends for screws, designed to secure cables or pipes on Victory motorcycles. Shown on a white background; fits as an OEM Victory Polaris part.

Vinyl Coated Clamp by Polaris

Replace your Clamp-Rear Brake on your Victory motorcycle with genuine OEM Victory Polaris parts from...

$4.99 USD

SKU: 7080983
More Info

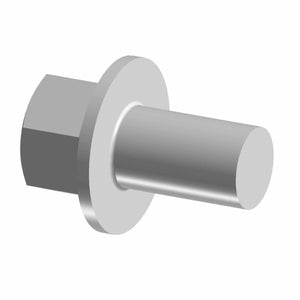

Ref #23 Silver hex head screw with a smooth cylindrical shaft and a wide flange base.

Screw by Polaris

Replace your Screw on your Victory motorcycle with genuine OEM Victory Polaris parts from Witchdoctors....

$6.99 USD

SKU: 7517278
More Info

Electrical, Switches, Sensors And Components 1 - 2017 Victory Vision All Options

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic 518

Replace your missing, broken, or worn out Polaris OEM Parts on your Victory Motorcycle with genuine OEM Victory Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
