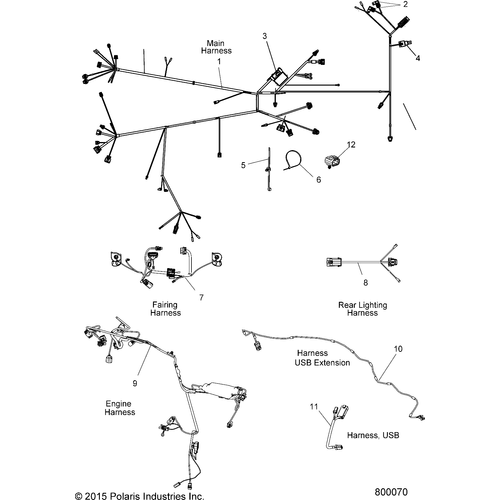

Electrical, Wire Harnesses - 2016 Victory Magnum/Magnum X-1 All Options Schematic 1057 OEM Schematic
Electrical, Wire Harnesses - 2016 Victory Magnum/Magnum X-1 All Options Schematic 1057 OEM Schematic

Electrical, Wire Harnesses

Ref #1 Black ABS main wire chassis harness with multiple connectors and mounting points for motorcycle assembly.

Chassis Harness, Main Wire, ABS by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2413315 For Victory & Indian Motorcycles –...

$959.99 USD

SKU: 2413315
More Info
Ref #2 Fuse,Main,30 Amp,(10) by Polaris 2434015 Fuse

Fuse, Main, 30 Amp,(10) by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2434015 For Victory & Indian Motorcycles –...

$9.99 USD

SKU: 2434015
More Info
Ref #2 Small black plastic fuseholder cover with mounting hole and triangular notch detail.

Fuseholder Cover by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 4012260 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 4012260
More Info
Ref #3 Cover, Relay/Fuse Center by Polaris 5438758 Fuse Box Cover

Relay/Fuse Center Cover by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5438758 For Victory & Indian Motorcycles –...

$14.99 USD

SKU: 5438758
More Info
Ref #4 Gray rectangular sealed relay with clip on top and mounting tab on side.

Sealed Relay by Polaris

Replace your Sealed Relay by Polaris on your Victory motorcycle with genuine OEM Victory Polaris...

$69.99 USD

SKU: 4011407
More Info
Ref #5 Cable Zip Tie by Polaris 7081496 Horn Mount
products.product.sold_out

Zip Tie by Polaris

Polaris UTV/ATV OEM Bolts, Nuts, Clips and Hardware - Available at buywitchdoctors.com Product Specifications: Genuine...

$5.99 USD

SKU:
More Info
Ref #6 The Zip Tie by Polaris, shown diagonally on a white background, features a ridged side and rectangular locking head—ideal for securing OEM Victory Polaris or other Victory motorcycle parts.

Zip Tie by Polaris

Polaris UTV/ATV OEM Bolts, Nuts, Clips and Hardware - Available at buywitchdoctors.com Product Specifications: Genuine...

$2.99 USD

SKU: 7080138
More Info
Ref #7 The Fuse, 25A by Polaris is a yellow automotive blade fuse with two metal prongs and a translucent body, designed as an OEM replacement for Victory and Polaris vehicles, shown isolated on a white background.

Fuse, 25A by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 4011653 For Victory & Indian Motorcycles –...

$10.99 USD

SKU: 4011653
More Info
Ref #7 Fairing Harness, Xc, 100W by Polaris

Fairing Harness, Xc, 100W by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2412738 For Victory & Indian Motorcycles –...

$389.99 USD

SKU: 2412738
More Info
Ref #8 Harness, Lighting, Rear by Polaris 2411046 Wiring Harness

Rear Lighting Harness by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2411046 For Victory & Indian Motorcycles –...

$59.99 USD

SKU: 2411046
More Info
Ref #9 Black and gray engine harness wiring with multiple connectors for Polaris Victory motorcycles.

Engine Harness by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2413153 For Victory & Indian Motorcycles –...

$399.99 USD

SKU: 2413153
More Info
Ref #10 A Polaris “Harness, USB Extension [Xdaaa Only]” in black, featuring connectors and protective sleeving, is coiled in a circular shape on a white background.

Usb Extension Harness by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2412957 For Victory & Indian Motorcycles –...

$49.99 USD

SKU: 2412957
More Info
Ref #11 USB Harness by Polaris 2412949 Audio Accessory

USB Harness by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2412949 For Victory & Indian Motorcycles –...

$134.99 USD

SKU: 2412949
More Info
Ref #12 Small black rectangular diagnostic cover with attached metal clip and connector prongs.

Diagnostics Cover with Clip by Polaris

Polaris UTV/ATV OEM Dashboards & Dash Components - Available at buywitchdoctors.com Product Specifications: Genuine OEM...

$10.99 USD

SKU: 4012170
More Info

Electrical, Wire Harnesses - 2016 Victory Magnum/Magnum X-1 All Options

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic 1057

Replace your missing, broken, or worn out Polaris OEM Parts on your Victory Motorcycle with genuine OEM Victory Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
