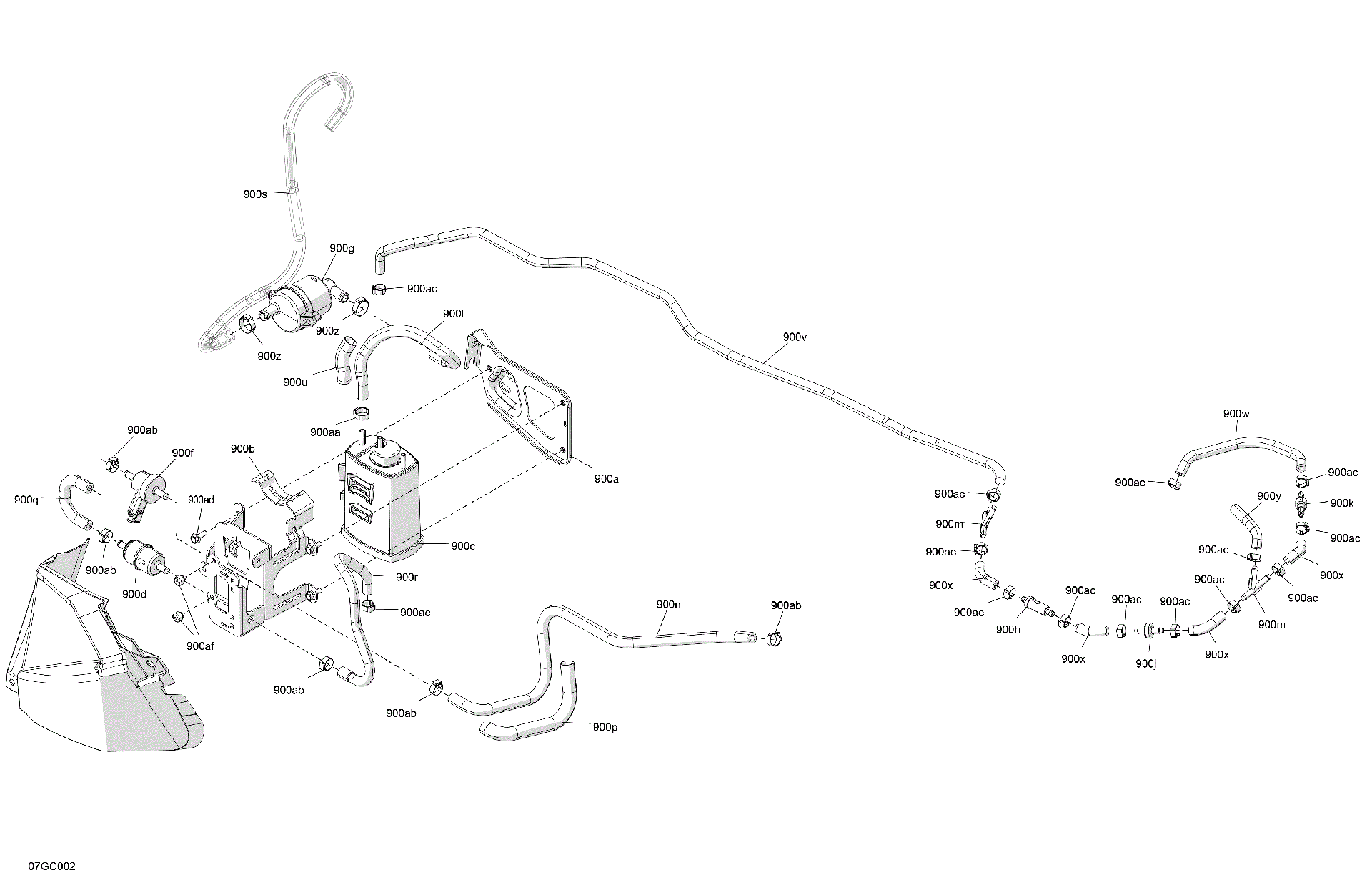

An Image of a Genuine Can-Am Parts Schematic Diagram showing the schematic - ENGINE - CANISTER CHARCOAL ASSEMBLY
An Image of a Genuine Can-Am Parts Schematic Diagram showing the schematic - ENGINE - CANISTER CHARCOAL ASSEMBLY

ENGINE - CANISTER CHARCOAL ASSEMBLY

Prices shown are USD
900ad
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207561644
HexFlange Screw M6x16 Scotch Grip by Can-Am
207561644
$1.99 USD

900p
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 219704651
Tubing 16 mm 1000Mm Long by Can-Am
219704651 Replaces 219704408
$7.73 USD

900u
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 219704651
Tubing 16 mm 1000Mm Long by Can-Am
219704651 Replaces 219704408
$7.73 USD

900v
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 219704611
Hose 6.35Mm 5000Mm Long by Can-Am
219704611
$199.99 USD

900w
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 219704611
Hose 6.35Mm 5000Mm Long by Can-Am
219704611
$199.99 USD

900x
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 219704611
Hose 6.35Mm 5000Mm Long by Can-Am
219704611
$199.99 USD

900y
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 219704611
Hose 6.35Mm 5000Mm Long by Can-Am
219704611
$199.99 USD

900j
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 275501246
Check Valve by Can-Am
275501246
$10.99 USD

900ac
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293650347
Oetiker Clamp by Can-Am
293650347 Replaces 293650042
$1.79 USD

900ab
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293650350
Crimp Clamp 15.3-706R by Can-Am
293650350 Replaces 293650047
$3.39 USD

900aa
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293650053
Crimp Clamp by Can-Am
293650053
$3.19 USD

900z
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293650186
Oetiker Clamp by Can-Am
293650186
$3.99 USD

900m
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293710222
Y-Pipe Fitting by Can-Am
293710222
$10.99 USD

900af
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293830005
Rubber Bumper by Can-Am
293830005
$8.29 USD

900k
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 513034263
Check Valve by Can-Am
513034263
$32.99 USD

900d
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 513034279
Fuel Filter by Can-Am
513034279 Replaces 513034047
$35.99 USD

900c
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709000090
Vapor Canister by Can-Am
709000090
$90.99 USD

900f
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709000443
Bleed Valve by Can-Am
709000443
$73.99 USD

900g
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001109
Air Filter by Can-Am
709001109
$20.99 USD

900h
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001120
Fuel Filter by Can-Am
709001120
$8.05 USD

900b
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001221
Charcoal Canister Support by Can-Am
709001221
$104.99 USD

900a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001222
Charcoal Canister Support by Can-Am
709001222
$42.99 USD

900r
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001225
Hose by Can-Am
709001225
$27.99 USD

900s
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001226
Hose Fuel Vapour Canister by Can-Am
709001226
$23.49 USD

900t
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001227
Hose by Can-Am
709001227
$32.99 USD

900n
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001237
Hose by Can-Am
709001237
$40.99 USD

900q
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709001256
Hose by Can-Am
709001256
$30.99 USD


ENGINE - CANISTER CHARCOAL ASSEMBLY - 2023 CAN AM OUTLANDER MAX 570 EFI DPS

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: CAN-AM-ATV-SCHEM-18786
