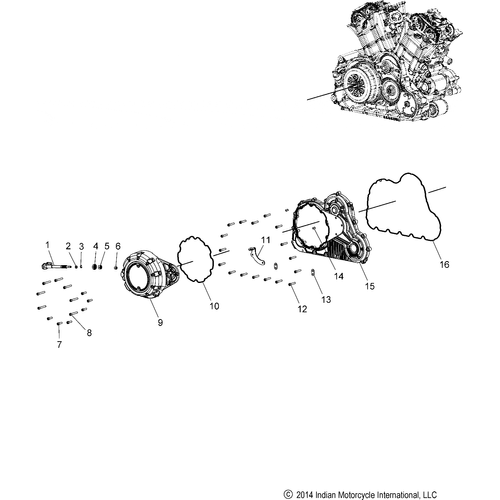

Engine, Cover Asm., Primary & Clutch All Options - 2016 Indian Scout Schematic-27810 OEM Schematic
Engine, Cover Asm., Primary & Clutch All Options - 2016 Indian Scout Schematic-27810 OEM Schematic

Engine, Cover Asm., Primary & Clutch All Options

Ref #1 Shaft, Clutch, Pinion by Polaris 6230774 Clutch Repair Parts

Clutch Arm Pinion Shaft by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 6230774 For Victory & Indian Motorcycles –...

$94.99 USD

SKU: 6230774
More Info
Ref #2 Silver metal flat washer with round central hole and smooth surface.

Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7555872 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7555872
More Info
Ref #3 Ring, Retaining by Polaris 7710638 Retaining Ring

Retaining Ring E-Clip by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7710638 For Victory & Indian Motorcycles –...

$1.00 USD

SKU: 7710638
More Info
Ref #4 Shifter Shaft / Clutch Arm Shaft Seal by Polaris 3610154 Primary Cover Gasket & Seals

Shifter Shaft / Clutch Arm Shaft Seal by Polaris

Shifter Shaft Seal for Victory Motorcycles - OEM Polaris Part #3610154 Is your Victory Motorcycle...

$9.99 USD

SKU: 3610154
More Info
Ref #5 Shifter Shaft / Clutch Arm Needle Bearing by Polaris 3552105 Clutch Repair Parts

Victory Shifter Shaft / Clutch Arm Needle Bearing by Polaris

Revitalize Your Ride: Shift Shaft / Clutch Arm Shaft Bearing for Victory Motorcycles (OEM Part...

$24.99 USD

SKU: 3552105
More Info
Ref #6 Clutch Arm Shaft Needle Bearing by Polaris 3512106 Clutch Repair Parts

Clutch Arm Pinion Shaft Needle Bearing by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3512106 For Victory & Indian Motorcycles –...

$24.99 USD

SKU: 3512106
More Info
Ref #7 Screw by Polaris 7517384 OEM Screw

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517384 For Victory & Indian Motorcycles –...

$10.99 USD

SKU: 7517384
More Info
Ref #8 Screw by Polaris 7517261 OEM Screw

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517261 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 7517261
More Info
Ref #9 Matte black metal clutch cover with contoured ridges and multiple mounting holes designed for Indian Scout motorcycles.

Clutch Cover by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1204700-156 For Victory & Indian Motorcycles –...

$469.99 USD

SKU: 1204700-156
More Info
Ref #10 Gasket by Polaris 5414746 Primary Cover Gasket & Seals

Primary Cover Gasket by Indian

Stop the Seepage: Indian Scout OEM Engine Primary Cover Gasket Part #5414746 – Available at...

$58.99 USD

SKU: 5414746
More Info
Ref #11 Silver metal cable mount bracket with curved arm and two mounting holes.

Cable Mount Bracket by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5259878 For Victory & Indian Motorcycles –...

$44.99 USD

SKU: 5259878
More Info
Ref #12 Screw by Polaris 7517301 OEM Screw

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517301 For Victory & Indian Motorcycles –...

$2.99 USD

SKU: 7517301
More Info
Ref #13 Silver metal cable mount bracket with two round holes and rounded rectangular shape.

Cable Mount Bracket by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5258982 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 5258982
More Info
Ref #14 Pin, Dowel, M6X10 by Polaris 5132835 Dowel Pin

Solid Dowel Pin, M6X10 by Polaris

Polaris OEM Part# 5132835 Dowel Pin – Available at buywitchdoctors.com. In the complex assembly of...

$2.99 USD

SKU: 5132835
More Info
Ref #15 Bronze metallic motorcycle primary cover with textured surface and precise mounting holes.

Primary Cover Bronze by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1205196-687 For Victory & Indian Motorcycles –...

$284.99 USD

SKU: 1205196-687
More Info
Ref #16 Gasket, Primary Drive by Polaris 5414563 Primary Cover Gasket & Seals

Primary Cover Gasket by Polaris

Stop the Seepage: Indian Scout OEM Engine Primary Cover Gasket Part #5414563 – Available at...

$89.99 USD

SKU: 5414563
More Info

Engine, Cover Asm., Primary & Clutch All Options - 2016 Indian Scout

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-27810

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
