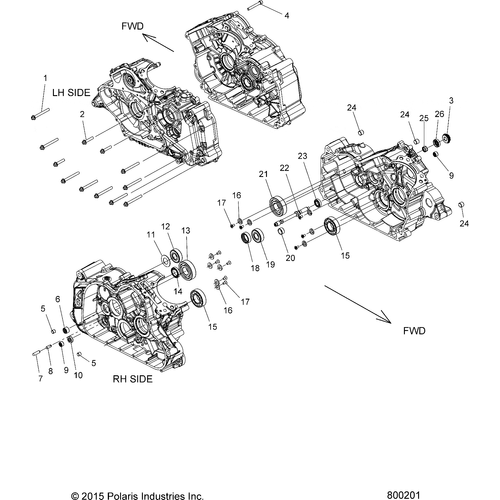

Engine, Crankcase Asm. - 2017 Victory Octane All Options Schematic 400 OEM Schematic
Engine, Crankcase Asm. - 2017 Victory Octane All Options Schematic 400 OEM Schematic

Engine, Crankcase Asm.

Prices shown are USD
-
An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 1205498-657
Crankcase, Black [Includes 1-27] by Polaris
1205498-657 Replaced by 2208182-657
$2,754.99 USD
1
Bar End Mirror Screw by Polaris 7520093 Mirror Accessory
Bar End Mirror Screw by Indian
7520093
$12.99 USD
2
Black metal screw with a long cylindrical shaft and hexagonal head with a round flange base.
Screw by Polaris
7519947
$6.99 USD
3

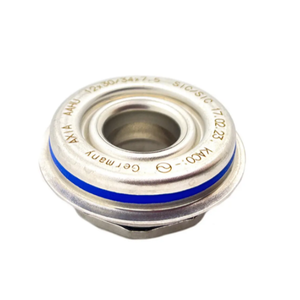

A close-up of the Seal, Wp Shaft by Polaris shows engraved text around its metal edge and a blue rubber ring, designed for use in industrial or OEM Victory Polaris motorcycle parts applications.
Water Pump Shaft Seal by Polaris
3610173 Replaced by 3610435
$19.99 USD
5
Dowell by Polaris 7663005 Starter Repair
Dowell by Polaris
7663005
$5.99 USD
6
Bearing, Needle by Polaris 3514802 OEM Bearing
Needle Bearing by Polaris
3514802 Replaced by 3515832
$19.99 USD
7
Silver-gray solid cylindrical metal dowel pin with chamfered ends, size M8X30.
Solid Dowel Pin M8X30 by Polaris
7661101
$6.99 USD
8
Solid metal dowel pin with smooth cylindrical shape and flat ends in light gray finish.
Solid Dowel Pin by Polaris
7661045
$12.99 USD
9
Shifter Shaft / Clutch Arm Needle Bearing by Polaris 3552105 Clutch Repair Parts
Victory Shifter Shaft / Clutch Arm Needle Bearing by Polaris
3552105
$24.99 USD
10
Shifter Shaft / Clutch Arm Shaft Seal by Polaris 3610154 Primary Cover Gasket & Seals
Shifter Shaft / Clutch Arm Shaft Seal by Polaris
3610154
$11.99 USD
11
Plate, Oil Deflector by Polaris 5259394 OEM Hardware
Oil Deflector Plate by Polaris
5259394
$6.99 USD
12
Bearing by Polaris 3514860 OEM Bearing
Engine Crankcase Ball Bearing by Polaris
3514860
$34.99 USD
13
Bearing, Ball by Polaris 3514884 OEM Bearing
Engine Ball Bearing by Polaris
3514884
$39.99 USD
14
Bearing, Ball by Polaris 3513511 OEM Bearing
Ball Bearing by Polaris
3513511
$34.99 USD
15
Bearing, Ball by Polaris 3514886 OEM Bearing
Engine Ball Bearing by Polaris
3514886 Replaced by 3515835
$24.99 USD
16
Plate, Bearing Retainer by Polaris 5138188 OEM Bearing
Bearing Retainer Plate by Polaris
5138188
$5.99 USD
17
Black M6x12 flat head screw with Phillips drive and red thread locker coating.
Screw, M6X12 by Polaris
7517598
$12.99 USD
18
A 3D-rendered image of the Needle Bearing 30X37X12-30Btm3712 by Polaris, a cylindrical metal bearing with an open center and inner ridges, commonly used in Indian motorcycle parts, shown on a white background.
Needle Bearing 30X37X12-30Btm3712 by Polaris
3514812 Replaced by 3515834
$34.99 USD
19
Bearing, Ball by Polaris 3514810 OEM Bearing
Engine Crankcase Ball Bearing by Polaris
3514810 Replaced by 3515833
$24.99 USD
20
Bearing, Cam Idler by Polaris 3514820 OEM Bearing
Cam Idler Bearing by Polaris
3514820
$39.99 USD
21
Bearing, Ball by Polaris 3514887 OEM Bearing
Engine Crankcase Ball Bearing by Polaris
3514887 Replaced by 3515836
$24.99 USD
22
Black metal water pump shaft with stepped cylindrical design and precision-machined ends.
Water Pump Shaft by Polaris
5138723
$49.99 USD
23
Bearing, Ball, Wp Shaft by Polaris 3514878 OEM Bearing
Engine Ball Bearing by Polaris
3514878
$34.99 USD
25
A close-up of the Nut, Special by Polaris with internal threading, displayed on a white background—perfect for OEM Victory Polaris and Victory motorcycle parts.
Special Nut by Polaris
7547688
$34.99 USD
26
Seal, Shaft by Polaris 3610228 OEM Seal
Shaft Seal by Polaris
3610228
$19.99 USD

Engine, Crankcase Asm. - 2017 Victory Octane All Options

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic 400

Replace your missing, broken, or worn out Polaris OEM Parts on your Victory Motorcycle with genuine OEM Victory Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
