Engine, Cylinder And Cylinder Head Mntg

Ref #1 Silver metal hex flanged screw with long threaded shaft and hexagonal head.

Hex Flanged Screw, M11X1.25X150 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7520144 For Victory & Indian Motorcycles –...

$16.99 USD

SKU: 7520144
More Info
Ref #2 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 3023758-650

Head Cylinder, Rear Machined Indian by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023758-650 For Victory & Indian Motorcycles –...

$754.99 USD

SKU: 3023758-650
More Info
Ref #3 Gasket-Cylinder Head Rear by Polaris 5814609 Head Gasket

Head Gasket, Rear Cylinder by Indian

Unrivaled Reliability: Polaris OEM Head Gaskets Part #5814609 – Available at buywitchdoctors.com The head gasket...

$69.99 USD

SKU: 5814609
More Info
Ref #4 Long silver hex flange screw with a smooth cylindrical shaft and hexagonal head.

Hex Flange Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7520115 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7520115
More Info
Ref #5 Assembly Cyl Rear Ind 102Mm Tnm by Polaris 3023338-650 Engine Cylinder

Rear Engine Cylinder Indian 102Mm Titanium by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023338-650 For Victory & Indian Motorcycles –...

$349.99 USD

SKU: 3023338-650
More Info
Ref #5 Rear Engine Cylinder,Indian,102Mm,Titanium by Indian

Rear Engine Cylinder,Indian,102Mm,Titanium by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3024082-650 For Victory & Indian Motorcycles –...

$349.99 USD

SKU: 3024082-650
More Info
Ref #6 Gasket, Base, Rear by Polaris 5813952 Base Gasket

Base Gasket, Rear Cylinder by Polaris

Seal the Power: Polaris Indian Engine Cylinder Base Gasket Part # 5813952– Available at buywitchdoctors.com ...

$39.99 USD

SKU: 5813952
More Info
Ref #7 Black threaded metal stud bolt with smooth tip, measuring approximately 45mm long.

Stud-M8X1.25X45 Socket 8.8 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7520858 For Victory & Indian Motorcycles –...

$8.98 USD

SKU: 7520858
More Info
Ref #8 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 3023757-650

Head Cylinder, Front Machined Indian by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023757-650 For Victory & Indian Motorcycles –...

$1,299.99 USD

SKU: 3023757-650
More Info
Ref #9 Gasket-Cylinder Head Front by Polaris 5814608 Head Gasket

Head Gasket, Front Cylinder by Indian

Unrivaled Reliability: Polaris OEM Head Gaskets Part #5814608 – Available at buywitchdoctors.com The head gasket...

$69.99 USD

SKU: 5814608
More Info
Ref #10 Assembly Cyl Front Ind 102Mm Tnm by Polaris 3023337-650 Engine Cylinder

Front Engine Cylinder Indian 102Mm Titanium by Indian

Replace your Asm. Cyl Frt Ind 102Mm Tnm by Polaris on your Indian motorcycle with...

$349.99 USD

SKU: 3023337-650
More Info
Ref #10 Front Engine Cylinder,Indian,102Mm,Titanium by Indian

Front Engine Cylinder,Indian,102Mm,Titanium by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3024081-650 For Victory & Indian Motorcycles –...

$349.99 USD

SKU: 3024081-650
More Info
Ref #11 Gasket, Base, Front by Polaris 5813879 Base Gasket

Base Gasket, Front Cylinder by Polaris

Seal the Power: Polaris Indian Engine Cylinder Base Gasket Part # 5813879– Available at buywitchdoctors.com ...

$39.99 USD

SKU: 5813879
More Info
Ref #12 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 5144774-650

Head Mount Bracket Right, Titanium by Indian

Replace your Bracket-Headmount,RH,Txt Titn by Polaris on your Indian motorcycle with genuine OEM Indian Polaris...

$114.99 USD

SKU: 5144774-650
More Info
Ref #13 Head Mount Bracket Left, Titanium by Indian

Head Mount Bracket Left, Titanium by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5142160-650 For Victory & Indian Motorcycles –...

$119.99 USD

SKU: 5142160-650
More Info
Ref #13 Bracket-Headmount,LH,Txt Titn by Polaris 5144773-650 OEM Hardware

Head Mount Bracket Left, Titanium by Indian

Replace your Bracket-Headmount,LH,Txt Titn by Polaris on your Indian motorcycle with genuine OEM Indian Polaris...

$114.99 USD

SKU: 5144773-650
More Info
Ref #14 Black metal screw with hexagonal head and integrated flange, threaded shaft hidden from view.

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7518884 For Victory & Indian Motorcycles –...

$2.49 USD

SKU: 7518884
More Info
Ref #15 Dwl-Hollow M14X12Mm by Polaris 7662163 OEM Hardware

Dowel Pin-Hollow M14X12Mm by Indian

Polaris OEM Part# 7662163 Dowel Pin – Available at buywitchdoctors.com. In the complex assembly of...

$34.99 USD

SKU: 7662163
More Info
Ref #16 Seal-Valve Cover Front by Polaris 5416583 Valve Cover Gasket

Valve Cover Gasket / Seal, Front Cylinder by Indian

Engine Integrity: Polaris OEM Valve Cover Gasket / Seal Part #5416583 for Victory & Indian...

$54.99 USD

SKU: 5416583
More Info
Ref #17 Seal-Valve Cover Rear by Polaris 5416584 Valve Cover Gasket

Valve Cover Gasket / Seal, Rear Cylinder by Indian

Engine Integrity: Polaris OEM Valve Cover Gasket / Seal Part #5416584 for Victory & Indian...

$54.99 USD

SKU: 5416584
More Info

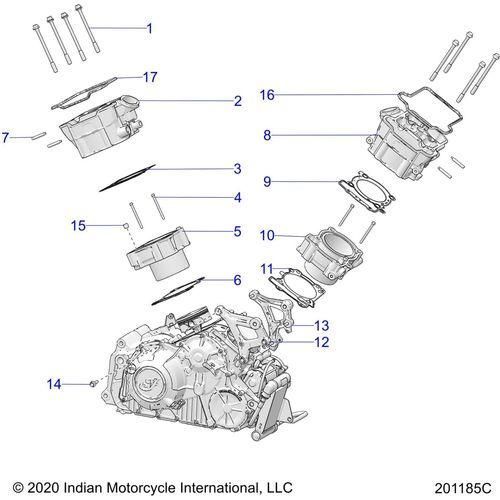

Engine, Cylinder And Cylinder Head Mntg - 2022 Indian Ftr 1200
