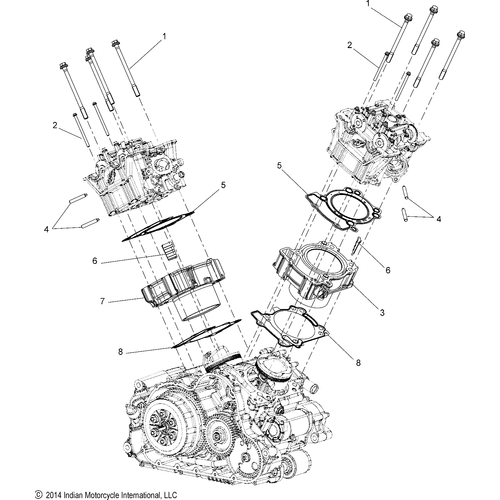

Engine, Cylinder & Cyl. Head Mounting All Options

Ref #1 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7520203

Hex Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7520203 For Victory & Indian Motorcycles –...

$19.99 USD

SKU: 7520203
More Info
Ref #2 Long silver hex flange screw with a smooth cylindrical shaft and hexagonal head.

Hex Flange Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7520115 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7520115
More Info
Ref #3 Gray front engine cylinder with smooth silver bore and multiple mounting points.

Front Engine Cylinder 99Mm Brnz by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3022486-687 For Victory & Indian Motorcycles –...

$349.99 USD

SKU: 3022486-687
More Info
Ref #4 Stud, Exhaust Mount by Polaris 5132040 Exhaust Stud

Exhaust Mount Stud by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5132040 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 5132040
More Info
Ref #5 Cylinder Head Gasket Front by Polaris 5813878 Head Gasket

Head Gasket, Front Cylinder by Indian

Unrivaled Reliability: Polaris OEM Head Gaskets Part #5813878 – Available at buywitchdoctors.com The head gasket...

$69.99 USD

SKU: 5813878
More Info
Ref #5 Gasket Cylinder Head Rear by Polaris 5813960 Head Gasket

Head Gasket, Rear Cylinder by Indian

Unrivaled Reliability: Polaris OEM Head Gaskets Part #5813960 – Available at buywitchdoctors.com The head gasket...

$69.99 USD

SKU: 5813960
More Info
Ref #6 Matte black angular coolant diverter with stepped ridges and mounting tab.

Coolant Diverter by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5451046 For Victory & Indian Motorcycles –...

$13.99 USD

SKU: 5451046
More Info
Ref #7 Bronze rear engine cylinder with circular bore and mounting flange for motorcycle use.

Rear Engine Cylinder 99Mm Brnz by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3022487-687 For Victory & Indian Motorcycles –...

$349.99 USD

SKU: 3022487-687
More Info
Ref #8 Gasket, Base, Front by Polaris 5813879 Base Gasket

Base Gasket, Front Cylinder by Polaris

Seal the Power: Polaris Indian Engine Cylinder Base Gasket Part # 5813879– Available at buywitchdoctors.com ...

$39.99 USD

SKU: 5813879
More Info
Ref #8 Gasket, Base, Rear by Polaris 5813952 Base Gasket

Base Gasket, Rear Cylinder by Polaris

Seal the Power: Polaris Indian Engine Cylinder Base Gasket Part # 5813952– Available at buywitchdoctors.com ...

$39.99 USD

SKU: 5813952
More Info

Engine, Cylinder & Cyl. Head Mounting All Options - 2016 Indian Scout

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-27813

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
