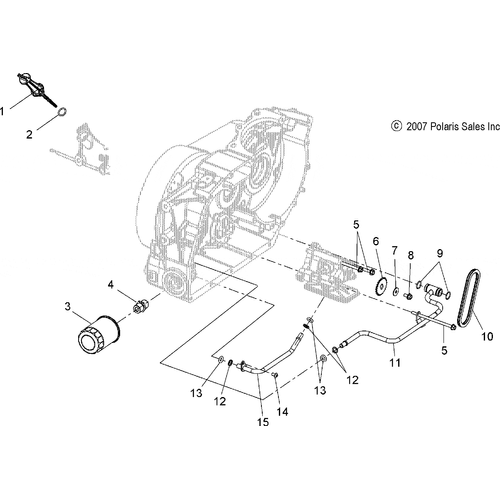

Engine, Oil Pump Mounting And Dipstick - 2009 Victory Hammer/Hammer Sport All Options - V09Hb36/Hs36 Schematic 4272 OEM Schematic
Engine, Oil Pump Mounting And Dipstick - 2009 Victory Hammer/Hammer Sport All Options - V09Hb36/Hs36 Schematic 4272 OEM Schematic

Engine, Oil Pump Mounting And Dipstick

Ref #2 O-Ring by Polaris 5411331 OEM O-Ring

Dipstick O-Ring by Polaris

Polaris UTV/ATV OEM Oil Drain Plugs & Components - Available at buywitchdoctors.com Product Specifications: Genuine...

$1.99 USD

SKU: 5411331
More Info
Ref #3 Oil Filter OEM for Victory by Polaris 2540086 Oil Filter

Oil Filter OEM for Victory by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2540086 For Victory & Indian Motorcycles –...

$14.99 USD

SKU: 2540086
More Info
Ref #4 Metal oil filter nipple with double threaded ends and hexagonal middle for wrench grip.

Oil Filter Nipple by Polaris

Replace your Nipple [15Th. Anniversary.] by Polaris on your Victory motorcycle with genuine OEM Victory...

$34.99 USD

SKU: 2540115
More Info
Ref #5 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7517256

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517256 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7517256
More Info
Ref #6 The Drive Pulley, 23T by Polaris is a black, oval-shaped sprocket with evenly spaced teeth and a rectangular center hole—genuine OEM part for your Victory motorcycle.

Oil Pump Drive Sprocket, 23T by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3222150 For Victory & Indian Motorcycles –...

$39.99 USD

SKU: 3222150
More Info
Ref #7 Washer, Flat by Polaris 7556054 OEM Washer

Flat Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556054 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7556054
More Info
Ref #8 Drive Sprocket Hex Flange Screw by Polaris 7517257 Drive Pulley Hardware

Drive Pulley Lock Ring Hex Flange Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517257 For Victory & Indian Motorcycles –...

$11.99 USD

SKU: 7517257
More Info
Ref #9 Black circular rubber O-ring seal with smooth surface and uniform thickness.

O-Ring by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5412002 For Victory & Indian Motorcycles –...

$1.49 USD

SKU: 5412002
More Info
Ref #10 Chain by Polaris 3221173 Drive Pulley Hardware

Oil Pump Chain by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3221173 For Victory & Indian Motorcycles –...

$49.99 USD

SKU: 3221173
More Info
Ref #11 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 2520790

Oil Filter/Crankcase Line by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 2520790 For Victory & Indian Motorcycles –...

$59.99 USD

SKU: 2520790
More Info
Ref #12 Washer by Polaris 7556026 OEM Washer

Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556026 For Victory & Indian Motorcycles –...

$11.99 USD

SKU: 7556026
More Info
Ref #13 O-Ring by Polaris 5411231 OEM O-Ring

O-Ring by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5411231 For Victory & Indian Motorcycles –...

$2.49 USD

SKU: 5411231
More Info
Ref #14 Seat Screw Victory Hammer by Polaris 7517406 OEM Screw

Seat Screw Victory Hammer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517406 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7517406
More Info
Ref #15 Metal oil line tube with a curved 90-degree bend and mounting flange on one end.

Oil Line, Out by Polaris

Replace your Tube, Oil, Outlet on your Victory motorcycle with genuine OEM Victory Polaris parts...

$29.99 USD

SKU: 2520789
More Info

Engine, Oil Pump Mounting And Dipstick - 2009 Victory Hammer/Hammer Sport All Options - V09Hb36/Hs36

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic 4272

Replace your missing, broken, or worn out Polaris OEM Parts on your Victory Motorcycle with genuine OEM Victory Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
