Engine, Piston & Crankshaft All Options

Ref #1 Set of five metal piston rings in varying thicknesses and colors, arranged in a row on white background.

Piston Ring Kit (Standard) by Polaris

Polaris UTV / ATV and Side by Side OEM Pistons, Piston Rings & Wrist Pins...

$79.99 USD

SKU: 2204733
More Info
Ref #2 Silver metallic motorcycle piston with smooth top surface and grooves along the sides.

Piston by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3022488 For Victory & Indian Motorcycles –...

$169.99 USD

SKU: 3022488
More Info
Ref #3 A black, circular Ring, Retaining by Polaris with a small opening, commonly used as an OEM Victory Polaris component, is shown on a white background.

Retaining Ring by Polaris

Genuine Security: Polaris OEM Part #7710479 Retaining Ring – Available at buywitchdoctors.com. In the intricate...

$8.99 USD

SKU: 7710479
More Info
Ref #4 A Pin, Piston by Polaris stands vertically on a white background, viewed from above.

Piston Wrist Pin by Polaris

Polaris UTV / ATV and Side by Side OEM Pistons, Piston Rings & Wrist Pins...

$54.99 USD

SKU: 3022291
More Info
Ref #5 Silver-gray metal connecting rod with a smooth, solid build and circular openings at each end.

Connecting Rod [Incl. 7] by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3023055 For Victory & Indian Motorcycles –...

$319.99 USD

SKU: 3023055
More Info
Ref #6 A single orange Bearing, Connecting Rod by Polaris with a smooth curved surface on a white background—ideal as an OEM Victory Polaris replacement or for quality Victory motorcycle parts.

Connecting Rod Bearing, Orange by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3514966-159 For Victory & Indian Motorcycles –...

$24.99 USD

SKU: 3514966-159
More Info
Ref #6 Curved black metal connecting rod bearing with smooth surface and precise edges.

Connecting Rod Bearing, Blue by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3514966-027 For Victory & Indian Motorcycles –...

$24.99 USD

SKU: 3514966-027
More Info
Ref #6 Black curved metal connecting rod bearing with smooth surface and small notch on edge.

Connecting Rod Bearing, Black by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3514966-067 For Victory & Indian Motorcycles –...

$24.99 USD

SKU: 3514966-067
More Info
Ref #7 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7519833

Connecting Rod Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7519833 For Victory & Indian Motorcycles –...

$15.99 USD

SKU: 7519833
More Info
Ref #8 Black curved semi-cylindrical woodruff key with smooth surface and rounded edges.

Woodruff Key By Polaris

Polaris UTV/ATV OEM Crankcase Components - Available at buywitchdoctors.com Product Specifications: Genuine OEM Polaris Woodruff...

$8.99 USD

SKU: 7721122
More Info
Ref #9 Metallic crankshaft with integrated gear and splined shaft section for motorcycle engine assembly.

Crankshaft by Indian

Replace your Asm. Crankshaft by Polaris on your Indian motorcycle with genuine OEM Indian Polaris...

$1,404.99 USD

SKU: 1205267
More Info
Ref #10 Black metal crankshaft gear with evenly spaced teeth and central splined hole.

Crankshaft Gear [Incl. 16,17] by Polaris

Replace your Asm., Gear, Crankshaft [Incl. 16,17] on your Victory motorcycle with genuine OEM Victory...

$274.99 USD

SKU: 1333532
More Info
Ref #11 Clutch Drive Train OEM Washer by Polaris 7556518 Clutch Repair Parts

Clutch Drive Train Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556518 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7556518
More Info
Ref #12 Clutch Drive Train Nut by Polaris 7547477 Clutch Repair Parts

Clutch Drive Train Nut by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547477 For Victory & Indian Motorcycles –...

$19.99 USD

SKU: 7547477
More Info
Ref #13 Metal balance shaft with gear teeth and hexagonal end for motorcycle engine replacement part.

Balance Shaft by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 1204839 For Victory & Indian Motorcycles –...

$279.99 USD

SKU: 1204839
More Info
Ref #14 Flat silver metal washer with a central round hole and smooth edges.

Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556771 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7556771
More Info
Ref #15 Black hexagonal metal screw with a cylindrical threaded shaft and flat top.

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7518575 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 7518575
More Info
Ref #16 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7044475

Split Gear Spring by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7044475 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7044475
More Info
Ref #17 Ring, Retaining by Polaris 7710817 Retaining Ring

Retaining Ring by Polaris

Genuine Security: Polaris OEM Part #7710817 Retaining Ring – Available at buywitchdoctors.com. In the intricate...

$12.99 USD

SKU: 7710817
More Info

Engine, Piston & Crankshaft All Options - 2016 Indian Scout

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-27815

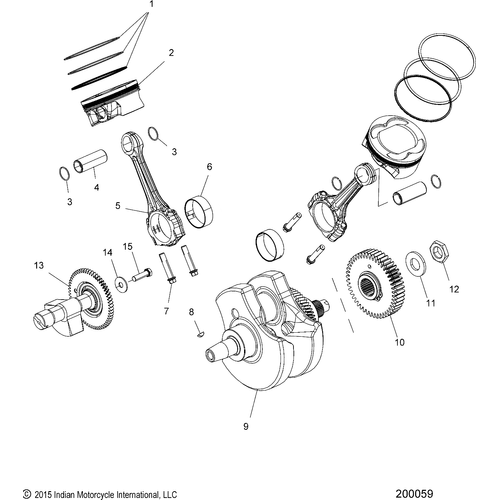

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.
