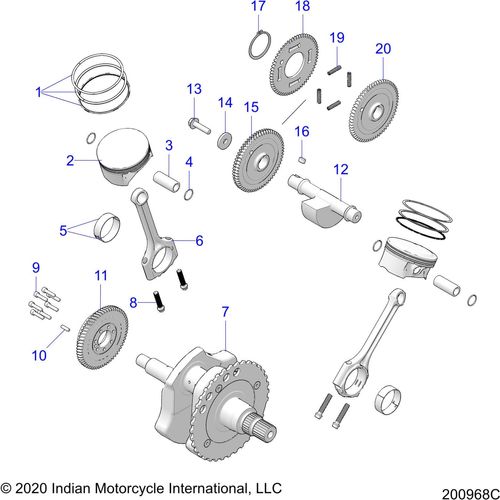

Engine, Piston & Crankshaft All Options

Ref #1 K-Piston Rings by Polaris 2208507 Piston Ring

Piston Rings by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2208507 For Victory & Indian Motorcycles –...

$84.99 USD

SKU: 2208507
More Info

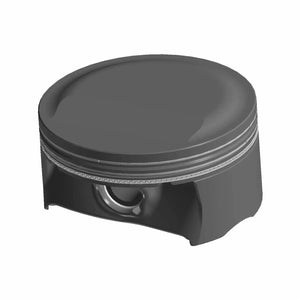

Ref #2 Matte black motorcycle engine piston with smooth flat top and grooved sides.

Piston by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023066 For Victory & Indian Motorcycles –...

$209.99 USD

SKU: 3023066
More Info

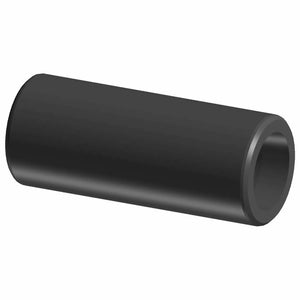

Ref #3 Piston Wrist Pin 22Mm by Indian

Piston Wrist Pin 22Mm by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023324 For Victory & Indian Motorcycles –...

$49.99 USD

SKU: 3023324
More Info
Ref #4 A black, circular Ring, Retaining by Polaris with a small opening, commonly used as an OEM Victory Polaris component, is shown on a white background.

Retaining Ring by Polaris

Genuine Security: Polaris OEM Part #7710479 Retaining Ring – Available at buywitchdoctors.com. In the intricate...

$8.99 USD

SKU: 7710479
More Info
Ref #5 Connecting Rod Bearing 52mm Black. by Indian

Connecting Rod Bearing 52mm Black. by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3515097-001 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 3515097-001
More Info
Ref #5 Bearing Connecting Rod 52Mm Org. by Polaris 3515097-002 OEM Bearing

Connecting Rod Bearing 52mm Org. by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3515097-002 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 3515097-002
More Info

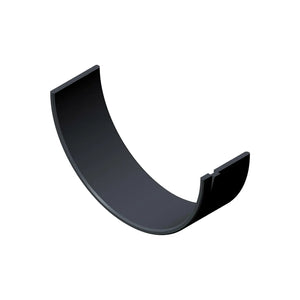

Ref #5 Connecting Rod Bearing 52mm Blu by Indian

Connecting Rod Bearing 52mm Blu by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3515097-003 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 3515097-003
More Info

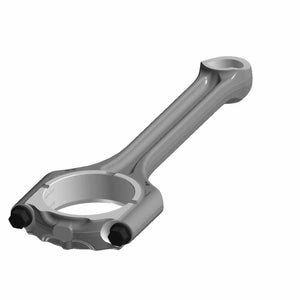

Ref #6 Silver metallic connecting rod with rounded ends and two black bolts at the larger circular end.

Connecting Rod 184Mm by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023483 For Victory & Indian Motorcycles –...

$299.99 USD

SKU: 3023483
More Info

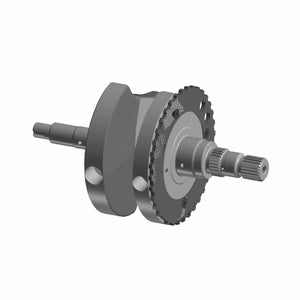

Ref #7 Gray metal crankshaft with gear teeth and splined shaft sections for motorcycles.

Crankshaft 56.5mm (Replaced by 2212410) by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023696 For Victory & Indian Motorcycles –...

$1,324.99 USD

SKU: 3023696
More Info

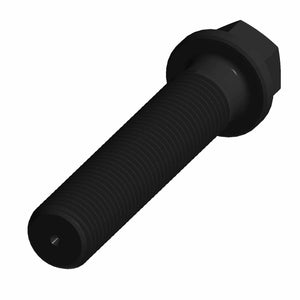

Ref #8 Black hex head connecting rod bolt with threaded shaft, made of metal, sturdy design.

Connecting Rod Bolt Mj9X1.0X44 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7520356 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 7520356
More Info

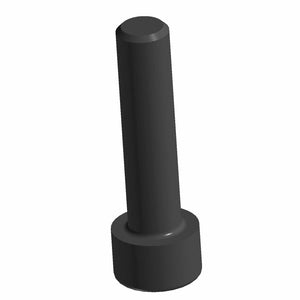

Ref #9 Black cylindrical screw with a flat round head and smooth shaft.

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7518995 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 7518995
More Info

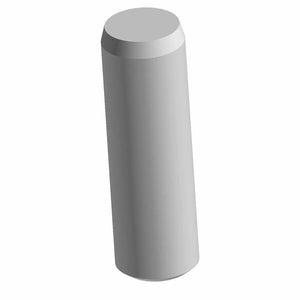

Ref #10 Silver cylindrical metal pin with a black textured top surface.

Pin by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3234330 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 3234330
More Info
Ref #11 A close-up of the Gear-Balancer, Drive by Polaris features a circular shape with evenly spaced edge teeth and central holes on a white background—perfect for Indian motorcycle OEM parts or Polaris replacement.

Balance Shaft Gear (Replaced by 6237721) by Indian

Replace your Gear Balance Drive by Polaris on your Indian motorcycle with genuine OEM Indian...

$254.99 USD

SKU: 6230804
More Info

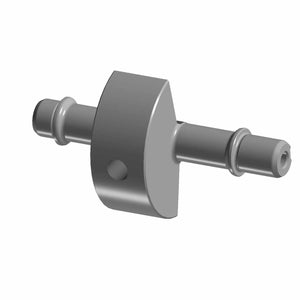

Ref #12 Gray metal motorcycle balance shaft with cylindrical ends and asymmetrical central block.

Balance Shaft (Replaced by 5144258) by Indian

Replace your Shaft-Balance Mach by Polaris on your Indian motorcycle with genuine OEM Indian Polaris...

$99.99 USD

SKU: 5144258
More Info
Ref #13 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7519763

Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7519763 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 7519763
More Info

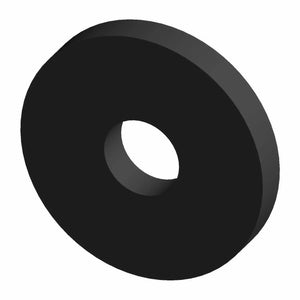

Ref #14 Black circular metal washer with a central round hole and flat surfaces.

Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556871 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7556871
More Info

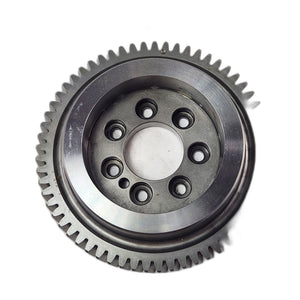

Ref #15 Black metal balance shaft gear with evenly spaced teeth and central hub opening.

Balance Shaft Gear (Replaced by 1336998) by Indian

Replace your Asm., Gear, Balancer by Polaris on your Indian motorcycle with genuine OEM Indian...

$269.99 USD

SKU: 1333665
More Info

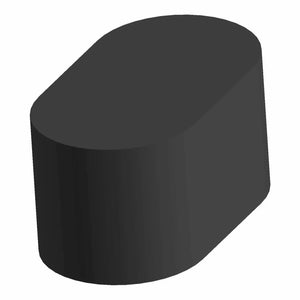

Ref #16 Key by Indian

Key by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7710708 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 7710708
More Info

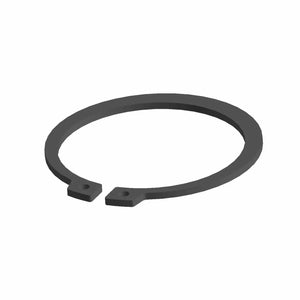

Ref #17 A Retaining Ring by Polaris in black, OEM part 7710801, with open ends and two small holes near the tips, is displayed on a white background.

External Retaining Ring, 55mm (Replaced by 7718426) by Indian

Genuine Security: Polaris OEM Part #7710791 Retaining Ring – Available at buywitchdoctors.com. This Part has...

$2.99 USD

SKU: 7710791
More Info

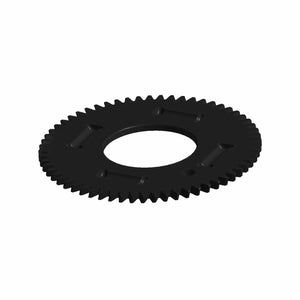

Ref #18 Balance Shaft Gear by Indian

Balance Shaft Gear by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 6230806 For Victory & Indian Motorcycles –...

$154.99 USD

SKU: 6230806
More Info
Ref #19 Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
products.product.sold_out

Item No Longer Available

This item is no longer available. Please contact us for possible substitutes.    CONTACT US

$0.00 USD

SKU:
More Info

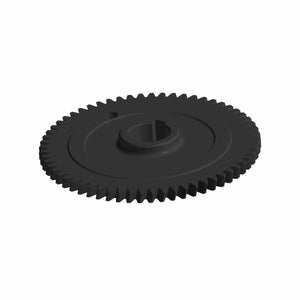

Ref #20 Black metal balance shaft gear with evenly spaced teeth and central mounting hole.

Balance Shaft Gear (Replaced by 1336998) by Indian

Replace your Gear Balance Shaft by Polaris on your Indian motorcycle with genuine OEM Indian...

$269.99 USD

SKU: 6230805
More Info

Engine, Piston & Crankshaft All Options - 2021 Indian Chief Vintage Premium 116

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-23326

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
