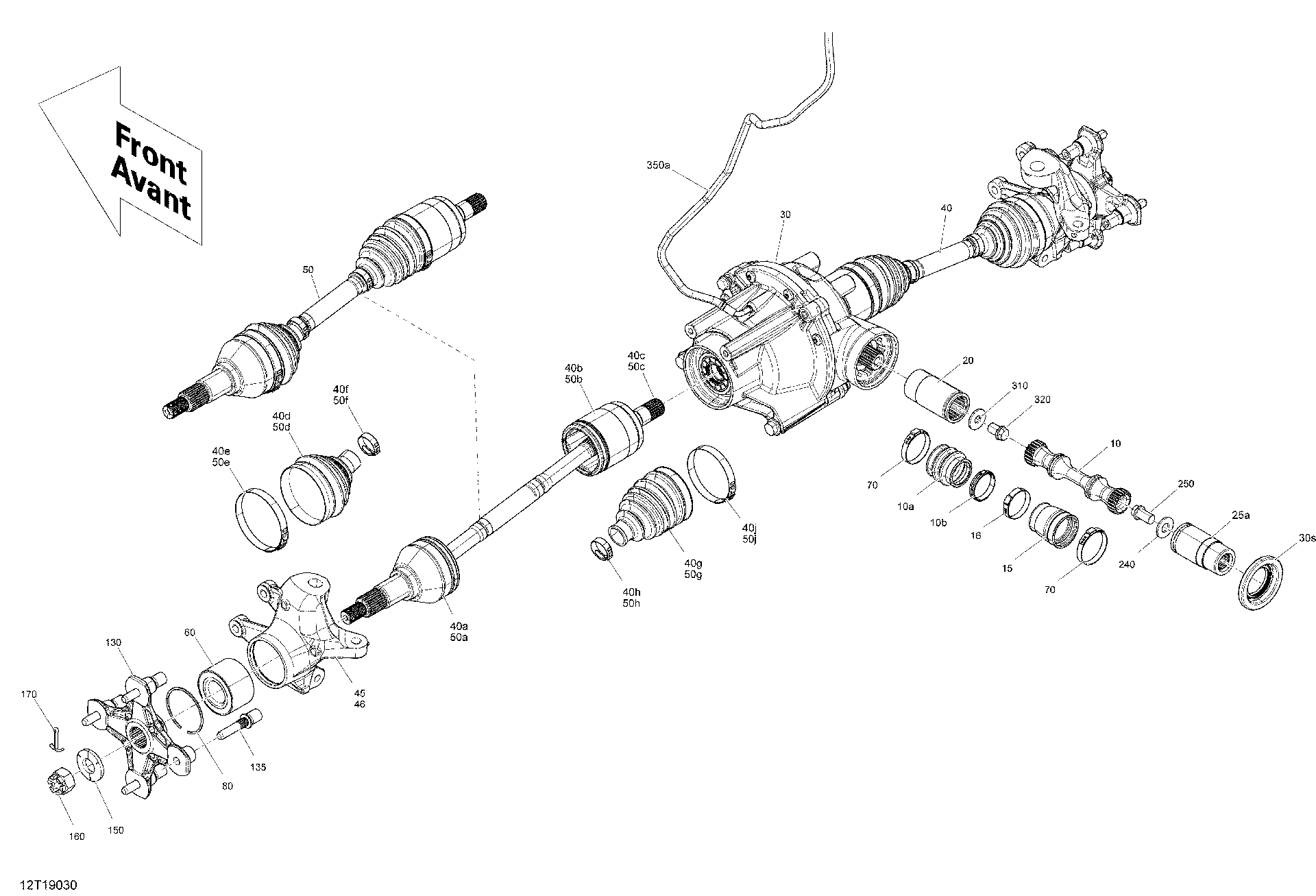

FRONT DRIVE - OUTLANDER & RENEGADE - X MR

Prices shown are USD
350a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 219704389
Polyurethane Hose 4000mm Long by Can-Am
219704389
$26.49 USD

40c
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401349
Circlip Joint by Can-Am
705401349
$6.50 USD

50c
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401349
Circlip Joint by Can-Am
705401349
$6.50 USD

40d
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401354
CV Boot Kit by Can-Am
705401354
$42.49 USD

50d
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401354
CV Boot Kit by Can-Am
705401354
$42.49 USD

40g
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401355
CV Boot Kit by Can-Am
705401355 Replaces 715901035
$42.49 USD

50g
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401355
CV Boot Kit by Can-Am
705401355 Replaces 715901035
$42.49 USD

50a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401407
CV Joint by Can-Am
705401407
$239.99 USD

30s
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401615
Engine Oil Seal by Can-Am
705401615
$19.49 USD

10a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900118
Rubber Boot by Can-Am
715900118
$14.30 USD

40e
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900260
Oetiker Clamp Large by Can-Am
715900260
$10.99 USD

50e
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900260
Oetiker Clamp Large by Can-Am
715900260
$10.99 USD

40f
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900261
Oetiker Clamp Small by Can-Am
715900261
$5.19 USD

40h
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900261
Oetiker Clamp Small by Can-Am
715900261
$5.19 USD

50f
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900261
Oetiker Clamp Small by Can-Am
715900261
$5.19 USD

50h
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900261
Oetiker Clamp Small by Can-Am
715900261
$5.19 USD

40j
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900262
Oetiker Clamp Large by Can-Am
715900262
$10.99 USD

50j
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900262
Oetiker Clamp Large by Can-Am
715900262
$10.99 USD

40b
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900395
Plunging CV Joint (Right) by Can-Am
715900395
$239.99 USD

50b
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900396
Plunging CV Joint (Left) by Can-Am
715900396
$239.99 USD

40a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715900428
CV Joint by Can-Am
715900428
$239.99 USD

10b
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293650356
Crimp Clamp by Can-Am
293650356 Replaces 293650333
$4.44 USD

25a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 703500678
Front Shaft Bushing Kit [Includes 25 to 25b] by Can-Am
703500678
$114.99 USD

10
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705400913
Propeller Shaft [Includes 10 to 10b] by Can-Am
705400913
$211.99 USD

15
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401093
Rubber Boot by Can-Am
705401093
$5.00 USD

16
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293650346
Oetiker Gear Clamp by Can-Am
293650346 Replaces 293650199
$8.89 USD

20
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705401969
Coupling Sleeve by Can-Am
705401969
$28.49 USD

30
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 703500908
Front Differential by Can-Am
703500908
$1,789.99 USD

40
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705402238
CV Joint (Right) by Can-Am
705402238
$275.49 USD

45
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705403307
Knuckle (Left) by Can-Am
705403307
$179.99 USD

46
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705403308
Knuckle (Right) by Can-Am
705403308
$179.99 USD

50
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705403009
CV Joint (Left) by Can-Am
705403009
$275.49 USD

60
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293350150
Ball Bearing by Can-Am
293350150
$52.99 USD

70
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293650345
Oetiker Gear Clamp 44.0MM by Can-Am
293650345 Replaces 293650138
$8.89 USD

80
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293370019
Circlip by Can-Am
293370019
$4.68 USD

130
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705501900
Wheel Hub by Can-Am
705501900
$132.49 USD

135
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250300643
Wheel Stud Built Before Dec 20 2020 [Built Before 12/20/2020] by Can-Am
250300643 Replaces 250300642
$5.03 USD

150
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250200171
Conical Spring Washer M18 by Can-Am
250200171
$7.79 USD

160
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232291413
Hex Flange Castellated Nut M18 by Can-Am
232291413
$8.19 USD

170
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250400071
Cotter Pin by Can-Am
250400071
$2.19 USD

240
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250200102
Flat Washer M12 by Can-Am
250200102
$2.19 USD

250
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250001042
Hex Flange Screw M12x20 by Can-Am
250001042
$1.99 USD

310
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250200014
Flat Washer M10 by Can-Am
250200014
$1.49 USD

320
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250001046
Hex Flange Screw M10x20 S.GRIP by Can-Am
250001046
$4.49 USD


FRONT DRIVE - OUTLANDER & RENEGADE - X MR - 2019 CAN AM OUTLANDER 650 EFI
