Fuel System, Fuel Tank Asm. All Options - 2020 Indian Springfield Dark Horse Schematic-23890 OEM Schematic
Fuel System, Fuel Tank Asm. All Options - 2020 Indian Springfield Dark Horse Schematic-23890 OEM Schematic

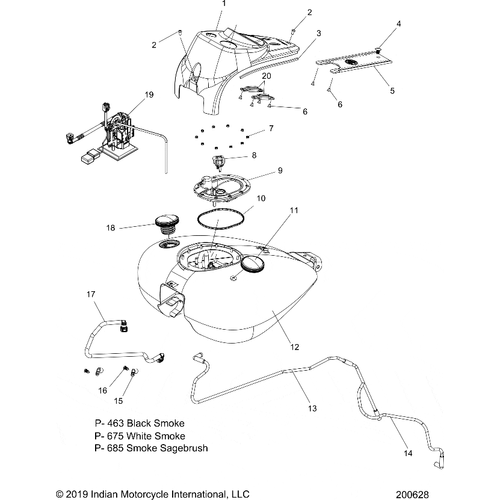

Fuel System, Fuel Tank Asm. All Options

Ref #1 The Console-Tank Non Fair Zn JtBlack by Polaris is a black, contoured dash panel with gauge and button cutouts, and features the Indian logo embossed on the lower left. Shown angled on a white background.

Fuel Tank Console Non Fairing JtBlack by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5634134-626 For Victory & Indian Motorcycles –...

$524.99 USD

SKU: 5634134-626
More Info
Ref #2 Screw-Hxbh-M6X1.0X12 A2 by Polaris 7519000 OEM Screw

Hex Button Head Screw, M6X1.0X12 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7519000 For Victory & Indian Motorcycles –...

$2.99 USD

SKU: 7519000
More Info
Ref #3 Trim Edge Console 472Mm by Polaris 8360134 Dash Accent

Console Edge Trim 472mm by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 8360134 For Victory & Indian Motorcycles –...

$44.99 USD

SKU: 8360134
More Info
Ref #4 Clip, Plastic Dart by Polaris 7670088 OEM Clip

Plastic Dart Clip by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7670088 For Victory & Indian Motorcycles –...

$1.99 USD

SKU: 7670088
More Info
Ref #5 Fuel Tank Strap Vinyl Black/Black by Indian

Fuel Tank Strap Vinyl Black/Black by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2688986 For Victory & Indian Motorcycles –...

$174.99 USD

SKU: 2688986
More Info
Ref #6 Screw-FLHd-M5X.8X8.8 Znc by Polaris 7519876 OEM Screw

Screw, M5X.8X8.8 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7519876 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7519876
More Info
Ref #7 Silver hexagonal Nylok lock nut with threaded center hole, M5x0.8 size.

Nylok Hex Nut M5X.8 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7546601 For Victory & Indian Motorcycles –...

$1.49 USD

SKU: 7546601
More Info
Ref #8 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 4014261

Connector Fuel Pump by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 4014261 For Victory & Indian Motorcycles –...

$49.99 USD

SKU: 4014261
More Info
Ref #9 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 2521374

Assembly Fuel Access by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2521374 For Victory & Indian Motorcycles –...

$294.99 USD

SKU: 2521374
More Info
Ref #10 Seal-Fuel Molded by Polaris 5414514 OEM Seal

Molded Fuel Tank Seal by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5414514 For Victory & Indian Motorcycles –...

$54.99 USD

SKU: 5414514
More Info
Ref #11 Cap Fuel Dummy Black by Polaris 2522215-266 Gas Cap

Fuel Cap Dummy Black by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2522215-266 For Victory & Indian Motorcycles –...

$99.99 USD

SKU: 2522215-266
More Info
Ref #12 Fuel Tank FBlack by Indian

Fuel Tank FBlack by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1025508-463 For Victory & Indian Motorcycles –...

$2,284.99 USD

SKU: 1025508-463
More Info
Ref #12 Fuel Tank Wht Smoke by Indian

Fuel Tank Wht Smoke by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1025508-675 For Victory & Indian Motorcycles –...

$2,284.99 USD

SKU: 1025508-675
More Info
Ref #12 Matte black motorcycle fuel tank with smooth, rounded design and metal mounting bracket.

Fuel Tank Smokesgbrsh by Indian

Replace your Asm-Tank Fuel Smksgbrsh by Polaris on your Indian motorcycle with genuine OEM Indian...

$2,284.99 USD

SKU: 1021997-685
More Info
Ref #13 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 5439857

Fuel Hose / Line, Vent To Ground Upper by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5439857 For Victory & Indian Motorcycles –...

$94.99 USD

SKU: 5439857
More Info
Ref #14 Line Vent To Ground Lower by Polaris 5439858 Fuel Hose / Line

Fuel Hose / Line, Vent To Ground Lower by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5439858 For Victory & Indian Motorcycles –...

$169.99 USD

SKU: 5439858
More Info
Ref #15 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7080499

Cable Clamp 9/16 I.D. by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7080499 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 7080499
More Info
Ref #16 Silver metal dart clip with ridged cylindrical body and pointed conical tip, flat circular head.

Dart Clip .70X.187 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7661953 For Victory & Indian Motorcycles –...

$1.49 USD

SKU: 7661953
More Info
Ref #17 Line Fuel Hwi by Polaris 5416352 Fuel Hose / Line

Fuel Hose / Line by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5416352 For Victory & Indian Motorcycles –...

$119.99 USD

SKU: 5416352
More Info
Ref #18 Cap Fuel Black by Polaris 2522214-266 Gas Cap

Fuel Cap Black by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2522214-266 For Victory & Indian Motorcycles –...

$124.99 USD

SKU: 2522214-266
More Info
Ref #19 Assembly Fuel Pump Sender by Polaris 2521305 Fuel Pump

Fuel Pump w/ Sender by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2522160 For Victory & Indian Motorcycles –...

$469.99 USD

SKU: 2522160
More Info
Ref #19 K-Svc Fuel Filter by Polaris 2207067 Fuel Filter

Fuel Filter by Indian

Restore Peak Performance on your Indian Motorcycle with a Polaris OEM Fuel Filter Part #...

$54.99 USD

SKU: 2207067
More Info
Ref #20 Plug Switch Console Tall by Polaris 5453426 OEM Hardware

Center Console Plug, Tall by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5453426 For Victory & Indian Motorcycles –...

$11.99 USD

SKU: 5453426
More Info

Fuel System, Fuel Tank Asm. All Options - 2020 Indian Springfield Dark Horse

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-23890

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
