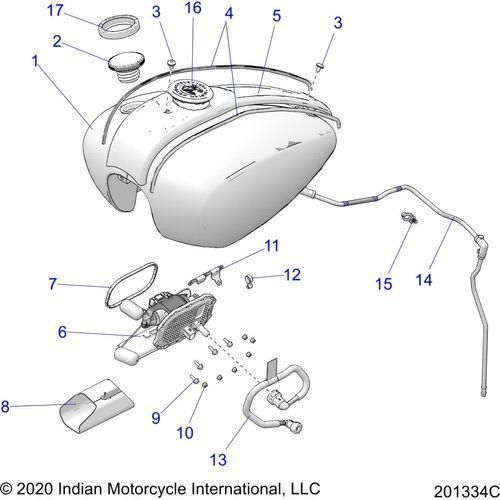

Fuel System, Fuel Tank Asm. All Options - 2022 Indian Chief Dark Horse 116 Schematic-21654 OEM Schematic
Fuel System, Fuel Tank Asm. All Options - 2022 Indian Chief Dark Horse 116 Schematic-21654 OEM Schematic

Fuel System, Fuel Tank Asm. All Options

Ref #1 Fuel Tank Onyx Black Smoke by Indian

Fuel Tank Onyx Black Smoke by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1026492-866 For Victory & Indian Motorcycles –...

$1,809.99 USD

SKU: 1026492-866
More Info
Ref #1 Matte stealth gray motorcycle fuel tank with angular, aerodynamic design and mounting points.

Fuel Tank Cruiser Stlthgry by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1026492-804 For Victory & Indian Motorcycles –...

$1,809.99 USD

SKU: 1026492-804
More Info
Ref #1 Black matte fuel tank with angular metal mounting plate and smooth rounded edges designed for motorcycle attachment.

Fuel Tank Cruiser Alumjdsmk by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1026492-827 For Victory & Indian Motorcycles –...

$1,809.99 USD

SKU: 1026492-827
More Info
Ref #2 Cap Fuel Chrome by Polaris 2522214-156 Gas Cap

Fuel Cap Chrome by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2522214-156 For Victory & Indian Motorcycles –...

$124.99 USD

SKU: 2522214-156
More Info
Ref #2 Fuel Cap Tether Chrome by Indian

Fuel Cap Tether Chrome by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 2522281-156 For Victory & Indian Motorcycles –...

$114.99 USD

SKU: 2522281-156
More Info
Ref #3 Screw Hxbh-M6X1.0X12-W/Washer by Polaris 7527851 OEM Washer

Hex Screw M6X1.0X12-W/Washer by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7527851 For Victory & Indian Motorcycles –...

$10.78 USD

SKU: 7527851
More Info

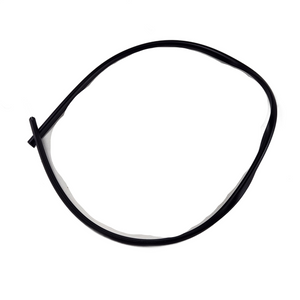

Ref #4 A black rubber Trim-Edge Console 665Mm by Polaris, shaped in an irregular oval, is displayed on a white background—perfect as an OEM replacement part for Indian motorcycles.

Console Edge Trim 665mm by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 8360196 For Victory & Indian Motorcycles –...

$49.99 USD

SKU: 8360196
More Info
Ref #5 Fuel Tank Console Stamp Gps Black by Indian

Fuel Tank Console Stamp Gps Black by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5270419-266 For Victory & Indian Motorcycles –...

$254.99 USD

SKU: 5270419-266
More Info
Ref #6 Pump-Fuel Csr by Polaris 2522501 Fuel Pump

Fuel Pump by Indian

Restore Peak Performance: Indian Motorcycle OEM Fuel Pump Assembly Part # 2522501 – Available at...

$356.99 USD

SKU: 2522501
More Info
Ref #6 The Zip Tie by Polaris, shown diagonally on a white background, features a ridged side and rectangular locking head—ideal for securing OEM Victory Polaris or other Victory motorcycle parts.

Zip Tie by Polaris

Polaris UTV/ATV OEM Bolts, Nuts, Clips and Hardware - Available at buywitchdoctors.com Product Specifications: Genuine...

$2.99 USD

SKU: 7080138
More Info
Ref #7 Seal, Fuel, Pfa by Polaris 5414830 OEM Seal

Fuel Tank Seal by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5414830 For Victory & Indian Motorcycles –...

$44.99 USD

SKU: 5414830
More Info

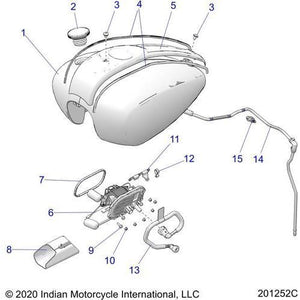

Ref #8 Baffle-Pickup Fuel by Polaris 5417716 OEM Hardware

Fuel Tank Pickup Baffle by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5417716 For Victory & Indian Motorcycles –...

$44.99 USD

SKU: 5417716
More Info
Ref #9 Gold-toned hex flanged screw with M5x0.80x16 threading and partially threaded shaft.

Hex Flanged Screw, M5X0.80X16 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7521169 For Victory & Indian Motorcycles –...

$3.99 USD

SKU: 7521169
More Info
Ref #10 Nut-Hxfl-M5X0.8 8 Zpc Nyl by Polaris 7547829 OEM Nut

Hex Flange Nylok Nut M5X0.8 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547829 For Victory & Indian Motorcycles –...

$3.99 USD

SKU: 7547829
More Info
Ref #11 A 3D-rendered Fuel Line Retention Bracket Ecoat by Polaris features two metallic plates with screw holes, linked along a central axis for rotation—designed to match OEM Indian motorcycle parts and ideal for secure fuel line installation.

Fuel Line Retention Bracket Ecoat by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5269412-329 For Victory & Indian Motorcycles –...

$34.99 USD

SKU: 5269412-329
More Info
Ref #12 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7081461

Dart Clip by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7081461 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7081461
More Info
Ref #13 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 8450224

Fuel Hose / Line by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 8450224 For Victory & Indian Motorcycles –...

$124.99 USD

SKU: 8450224
More Info
Ref #14 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 5456336

Fuel Hose / Line, Tank by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5456336 For Victory & Indian Motorcycles –...

$109.99 USD

SKU: 5456336
More Info
Ref #15 Cable Zip Tie by Polaris 7081496 Horn Mount
products.product.sold_out

Zip Tie by Polaris

Polaris UTV/ATV OEM Bolts, Nuts, Clips and Hardware - Available at buywitchdoctors.com Product Specifications: Genuine...

$5.99 USD

SKU:
More Info
Ref #16 Mount-Console Antenna by Polaris 5457808 Antenna

Console Antenna Mount by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5457808 For Victory & Indian Motorcycles –...

$77.99 USD

SKU: 5457808
More Info
Ref #17 Bumper-Cap Fuel by Polaris 5417339 Bumper

Fuel Cap Bumper by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5417339 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 5417339
More Info

Fuel System, Fuel Tank Asm. All Options - 2022 Indian Chief Dark Horse 116

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-21654

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
