Honda Talon 1000X RackBoss 2.0 Rack and Pinion by SuperATV

RackBoss 2.0 Is the Rack You’ve Always Wanted
Racks wear down over time and there’s nothing you can do to stop it. They all end up feeling loose and giving you crappy steering responsiveness eventually. At least, that was true before RackBoss 2.0 came along. It builds on the success of our original RackBoss by being stronger and more durable than ever. It’s made with our innovative X24 Tech that uses a dual-bushing design to reduce wear by over 50% compared to stock. That makes it the longest-lasting rack you can get—perfect for controlling massive tires on rugged terrain. Ride as hard and as long as you want. This rack keeps you in control.

Our X24 Dual-Bushing Design Reduces Wear and Tear
We’ve conquered the slop that ruins other racks. But how did we do it? Our X24 Tech uses ultra-tough PTFE bushings on both ends of the rack to remove play from your gears. With less play, you also get less motion on your internal tension spring. And with all that movement virtually eliminated, it’ll outlast any other rack you’ve used. And we’ve made it for the way you ride by including a grease fitting. It lets you clean out dirt and grime easily.

Swaged Tube Tie Rods
Get lightweight strength with our steel swaged tube tie rods. The flared-out design increases the strength of the 7/8" diameter tubing, while the reinforced tie rod ends eliminate the weakest part of OEM rods. These tie rods set a new standard with massive 16 mm rack threads and 14 mm rod threads, making them the toughest you can get.

Solid Steel Bar Tie Rods
Our 1” diameter solid steel bar tie rods give you plenty of strength to roll through boulder fields and mud holes with confidence. They come paired with our beefy 3/4” chromoly tie rod ends. Plus, our inner ball and sockets use the same 3/4” rod threads and 16 mm rack threads. These weak spots are made stronger than ever so you can get wild.

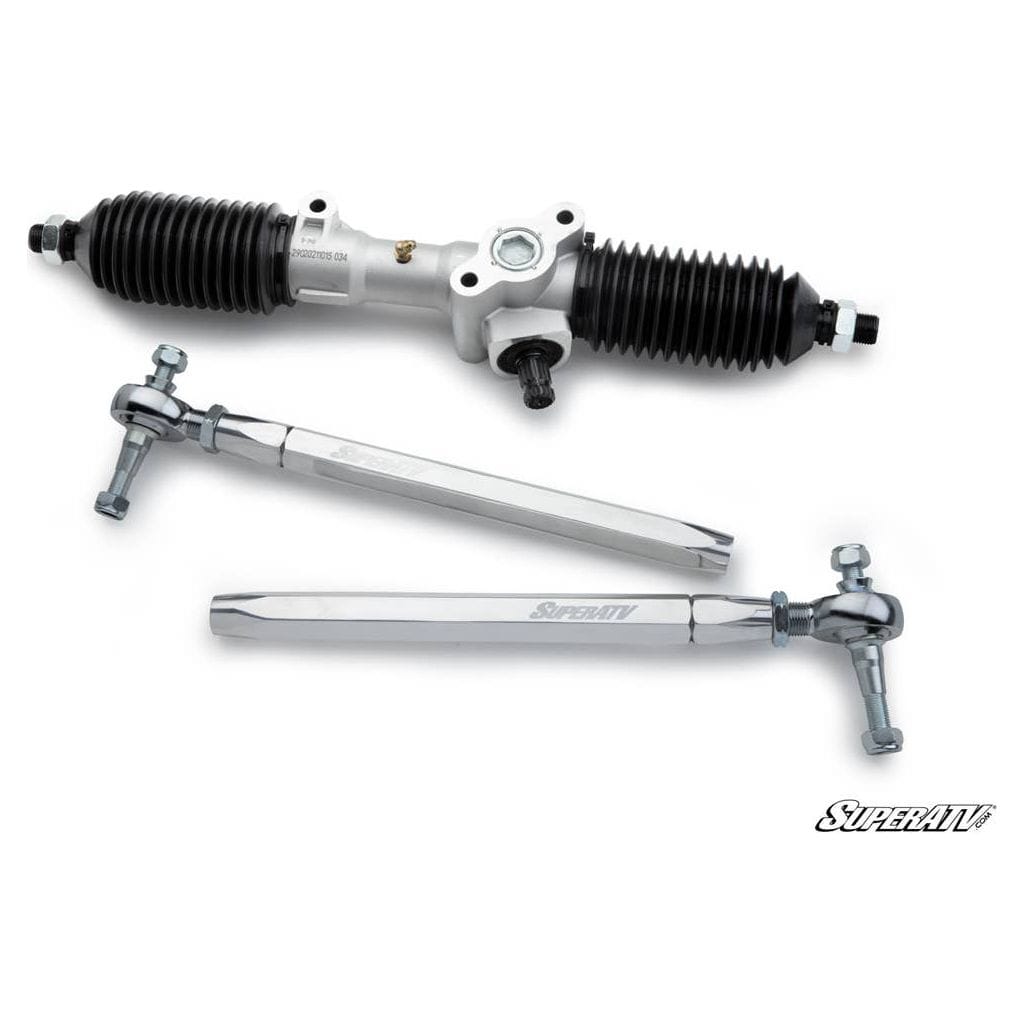

Billet Aluminum Hex Tie Rods
If you’re looking for the most premier Honda Talon 1000X steering rack you can get, then look no further. Our billet aluminum hex rods are are lightweight, strong, and unmistakably sleek. They come complete with our oversized 3/4” chromoly outer tie rod ends that are built to last. Plus, our inner tie rod ends are rebuildable and use 3/4” rod threads along with 16 mm rack threads. If you want the toughest and flashiest ride around, you need billet aluminum hex tie rods.

	RackBoss 2.0 Swaged Tie Rod	RackBoss 2.0 Solid Steel Tie Rod	RackBoss 2.0 Billet Tie Rod
Price	$399.95	$499.95	$599.95
X24 Tech Dual-Bushing Design	✔	✔	✔
Tie Rod Material	Steel tube	Solid steel bar	6061 Billet aluminum
Inner Ball and Socket Thread Diameter	14 mm rod threads, 16 mm rack threads	3/4” rod threads, 16 mm rack threads	3/4” rod threads, 16 mm rack threads
Outer Tie Rod End Thread Diameter	14mm	3/4”	3/4”
Greasable	✔	✔	✔
Inner Boots	✔	✔	✔
Steering Stop Kit	✔	✔	✔
Misalignment Bushings, Tie Rod Studs, & Hardware	✔	✔	✔
