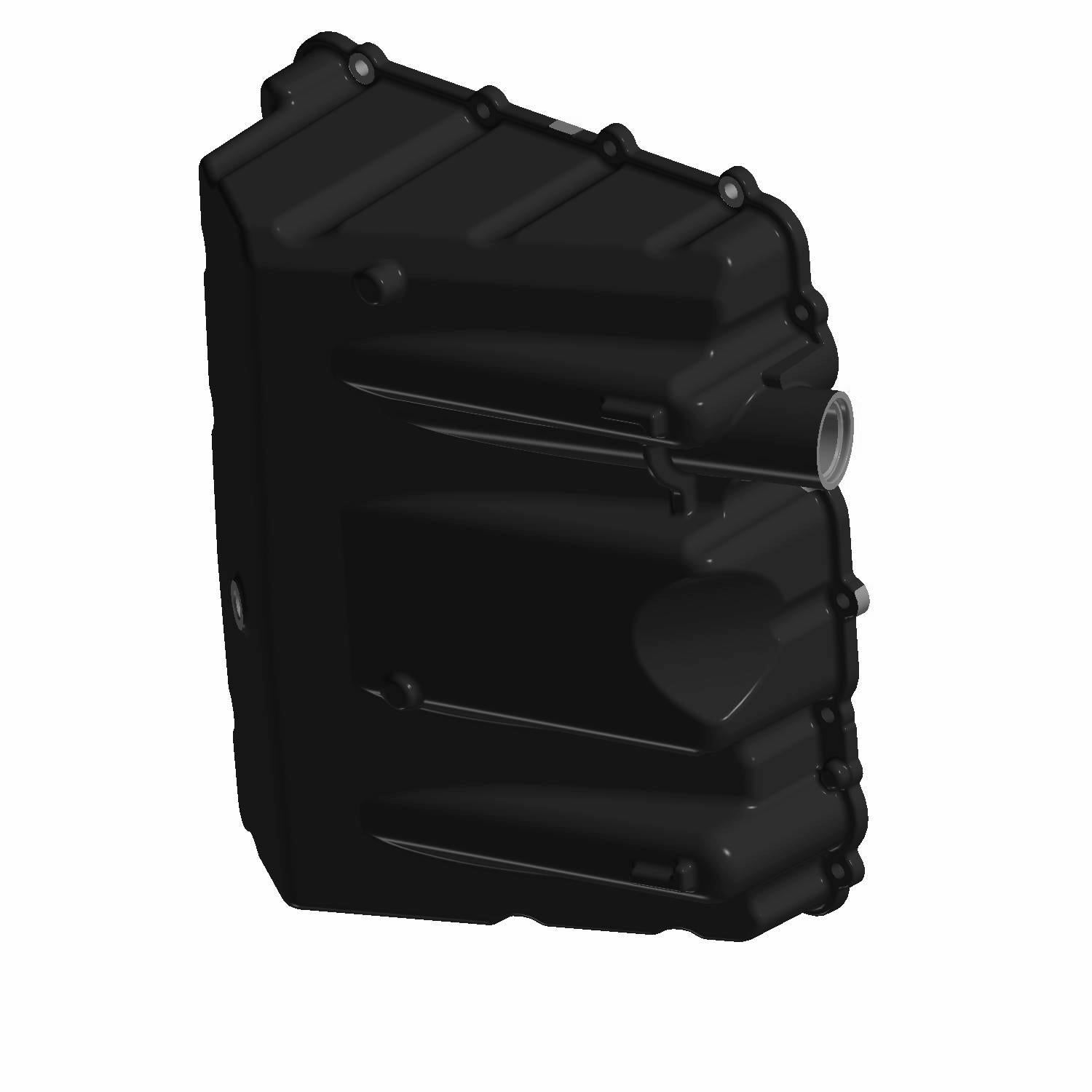

Oil Pan [Machined] by Polaris

Polaris UTV/ATV OEM Oil Pan - Available at buywitchdoctors.com

Product Specifications: Genuine OEM Polaris Oil Pan, Part # 5143321.

The engine block relies on a constant, uninterrupted supply of clean lubricating fluid to keep internal components spinning smoothly under severe stress. Positioned at the lowest point of your powertrain, the reservoir reservoir safeguards your oil supply from extreme terrain hazards. If your factory reservoir suffers an impact or a stripped drain plug thread, immediate replacement is required to safeguard your engine from catastrophic failure.

Installing an authentic Polaris UTV/ATV OEM Oil Pan guarantees the precise fitment and structural integrity necessary to seal the lower crankcase. Engineered from high-strength, premium-grade materials, this genuine original equipment manufacturer assembly handles aggressive thermal expansion and intense trail chatter. By using factory-authorized components, you avoid the poor casting tolerances and oil sealing failures that plague cheap aftermarket replacements.

Heavy-Duty Materials, Precision Manufacturing, and Lubrication Benefits

• Advanced Structural Cast Aluminum: Manufactured using specialized casting alloys that balance light weight with high structural rigidness to resist stress cracking and impacts.
• Precision Machined Mating Surfaces: Features perfectly flat, robotically milled sealing flanges that ensure a flush fit against the engine block, completely eliminating oil leaks.
• Reinforced Drain Plug Bosses: Built with extra material thickness around the drain hole threads to withstand repeated torque intervals during routine preventative maintenance.
• Integrated Internal Baffling: Utilizes factory-designed anti-slosh baffles to keep engine oil concentrated around the oil pickup tube during steep hill climbs and high-speed cornering.

Real-World Applications, Failure Symptoms, and Mechanic Diagnostics

Your off-road machine is constantly exposed to jagged rocks, logs, and hidden trail debris that can smash past skid plates. A deep dent can restrict internal oil pickup clearances, while a sharp rock impact can crack the casting entirely, leading to rapid fluid loss. Additionally, over-tightened oil pan drain bolts can easily strip aluminum threads over time, resulting in a persistent, annoying garage floor drip.

Replacing a damaged sump pan with a factory-fresh unit is essential during engine rebuilds, frame swaps, or after severe underside impacts. Choosing an authentic replacement component ensures the lower block assembly retains its exact factory dimensions and ground clearance parameters. This allows your undercarriage shields to bolt back into place flawlessly while guaranteeing a completely leak-free seal after installation.

Comprehensive Polaris Vehicle Fitment (2015-Current)

This factory-original oil pan and lower engine casing hardware is meticulously engineered to fit perfectly on several specific modern Polaris engines, including:

• Polaris RZR Series: 900, XP 1000, Turbo, Pro XP, Pro R, and RS1.
• Polaris Ranger Series: 500, 570, XP 900, XP 1000, and Crew.
• Polaris General Series: 1000 and XP 1000.
• Polaris Sportsman ATV Series: 450, 570, 850, and XP 1000.
• Polaris ACE Series: 500, 570, and 900.
• Polaris Xpedition Series: XP, ADV.

⚠️ IMPORTANT DISCLAIMER: Always check your owner’s manual or the fitment tab on witchdoctors.com to make sure this part fits your specific year, make, and model before ordering.

Other Popular Oil Pan Parts and Accessories

• Engine Gaskets & Oil Seals
• Magnetic Oil Drain Plugs and Crush Washer Replacement Packs
• Oil Pump & Components: Pickup Tubes and Screen Assemblies
• Skid Plates & Components
• Oil Pan Fastener Bolt Kits and Hardened Steel Flange Hardware Packs
• Dipsticks, Filler Caps, and Rubber O-Ring Seals

Frequently Asked Questions (FAQs)

Should I use a pre-formed gasket or RTV silicone sealant when installing this new oil pan?
You should always consult your specific model workshop manual for factory sealing instructions. Many modern powersports engines utilize high-temp RTV silicone sealant applied along a clean, oil-free flange track rather than a paper gasket. Using an authentic factory-approved sealant ensures a permanent, leak-free bond that stands up to trail abuse.

Can I repair a small crack in my aluminum oil pan using specialty epoxy or welding?
While temporary trailside fixes might get you back to camp, permanent welding or epoxy repairs are not recommended for long-term use. Aluminum engine castings absorb immense heat and flex under load, which causes patches to fail. Replacing the entire unit guarantees structural reliability and prevents catastrophic engine seizing from sudden fluid loss.

What is the correct torque specification for the oil pan mounting bolts?
Mounting bolts require precise low-torque settings, typically measured in inch-pounds, tightened in a specific cross-pattern sequence to prevent warping the pan. Never use an impact gun or guess the tightness. Always use an accurate torque wrench and follow your vehicle's factory workshop manual guidelines to avoid stripping the engine block threads.

PRO TIP: Learn more with Repair vs.Replace Guide for Damaged UTV or ATV Oil Pans.

Protect Your Lower Engine with Genuine Factory Parts from Witchdoctors

Do not risk total engine failure by ignoring a dripping oil leak, a stripped drain plug, or a deeply dented lower casing. Keep your powertrain fully lubricated, sealed, and running strong with an authentic replacement assembly from buywitchdoctors.com. We carry premium, factory-certified engine components designed to survive the harshest off-road environments. Visit Witchdoctors.com today, secure your new lower engine parts, and tackle the trails with confidence!
