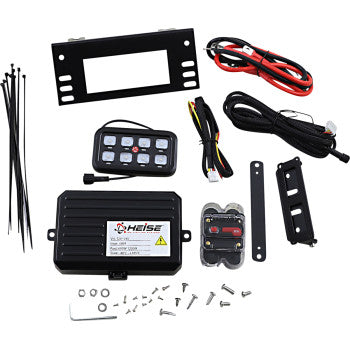

The Saddle Tramp On/Off Switch Panel Universal kit includes wires, remote, brackets, cable ties, screws, and 12V DC accessories—ideal for organizing your auxiliary LED lights or gang switch panel, all neatly arranged on a white background.
Four electronic components: a rectangular On / Off Switch Panel Universal by Saddle Tramp with a label, a gang switch panel for auxiliary LED lights, a fuse box with clear cover, and a circuit board with colored fuses and 12V DC connectors.
The On / Off Switch Panel Universal by Saddle Tramp is shown laid out, including its black control box, circuit board, keypad, 12V DC accessory wires, small motor, mounting brackets, and screws on a white background.
Saddle Tramp 8-Gang Universal Switch Panel System
The Saddle Tramp On/Off Switch Panel Universal kit includes wires, remote, brackets, cable ties, screws, and 12V DC accessories—ideal for organizing your auxiliary LED lights or gang switch panel, all neatly arranged on a white background.
Four electronic components: a rectangular On / Off Switch Panel Universal by Saddle Tramp with a label, a gang switch panel for auxiliary LED lights, a fuse box with clear cover, and a circuit board with colored fuses and 12V DC connectors.
The On / Off Switch Panel Universal by Saddle Tramp is shown laid out, including its black control box, circuit board, keypad, 12V DC accessory wires, small motor, mounting brackets, and screws on a white background.
Saddle Tramp 8-Gang Universal Switch Panel System
Badge

Saddle Tramp 8-Gang Universal Switch Panel System

$571.95 USD
Normally ships in 2-3 business days

Inventory:

Loading..
SKU: HE-SWP8

Ships Free to USA

Pickup available at Elm Rd. Warehouse

learn more in checkout

View store information
In stock and ready for shipping

SKU: HE-SWP8

Running a separate switch for every light bar, rock light and accessory turns your dash into a mess. The Saddle Tramp 8-Gang Universal Switch Panel System (part HE-SWP8) puts up to 8 accessories on one clean, backlit panel.

Shop more in our Find UTV, Side by Side & ATV LED Accent Lights: Rock Lights, Whips, Dome Lights collection.

Why Choose the Saddle Tramp 8-Gang Universal Switch Panel System

Key Features

  • Controls up to 8 auxiliary LED lights or 12V devices, per Saddle Tramp
  • 50 switch stickers included to label each switch
  • Blue LED backlit switches
  • Mounts in multiple positions
  • Works with 12V DC accessories
  • 60 amp resettable circuit breaker
  • Includes power harness, battery cables, brackets, 6 extra fuses and a dash illumination wire

Great For

  • Light bars, rock lights and whips
  • Winches, horns and fans
  • Cleaning up a crowded dash

Specifications

  • Brand: Saddle Tramp
  • Part number: HE-SWP8
  • Switches: 8
  • Voltage: 12V DC
  • Breaker: 60 amp resettable
  • Backlight: Blue LED
  • Included: Switch panel, control box, 50 stickers, 6 extra fuses, 60A breaker, power harness, battery cables, 2 panel brackets, 1 control box bracket, mounting hardware, dash illumination wire
  • Price: $571.95

Fitment

Universal for UTVs, side-by-sides and other 12V vehicles. Pick a mounting spot on your dash or roll bar that you can reach from the driver's seat.

Not sure it fits? Contact us with your year and model, and we’ll check.

How to Choose

  • Switch count: Plan for every accessory you have now, plus a spare or two.
  • Breaker: A resettable breaker saves you from hunting for blown fuses.
  • Mounting spot: Keep the panel where you can reach it with your belts on.

How to Install It

  1. Disconnect the battery.
  2. Mount the switch panel and control box with the included brackets.
  3. Run the power harness and battery cables, with the 60A breaker near the battery.
  4. Wire each accessory to its switch output.
  5. Label the switches with the included stickers, reconnect the battery and test each one.

Follow the Saddle Tramp instructions. If you’re not comfortable with wiring, have a qualified shop do the install.

Care Tips

  • Check connections and grounds now and then.
  • Keep the control box dry.
  • Reset the breaker and look for the cause if it trips.

Related Saddle Tramp Products

Shop More

Helpful Guides From the Witchdoctors Blog

Frequently Asked Questions

How many accessories can I run?

Up to 8, per Saddle Tramp.

Is wiring included?

Yes. It includes a power harness, battery cables and a 60A resettable breaker.

Can I return it?

Unused items in original packaging can usually be returned. Contact our customer service team, and we’ll help.

Where to Ride

Get set up and ride. Try one of these:

Order the Saddle Tramp 8-Gang Universal Switch Panel System Today

Add it to your cart, and Witchdoctors will get it moving. Questions? Contact our team, and we’ll help.
