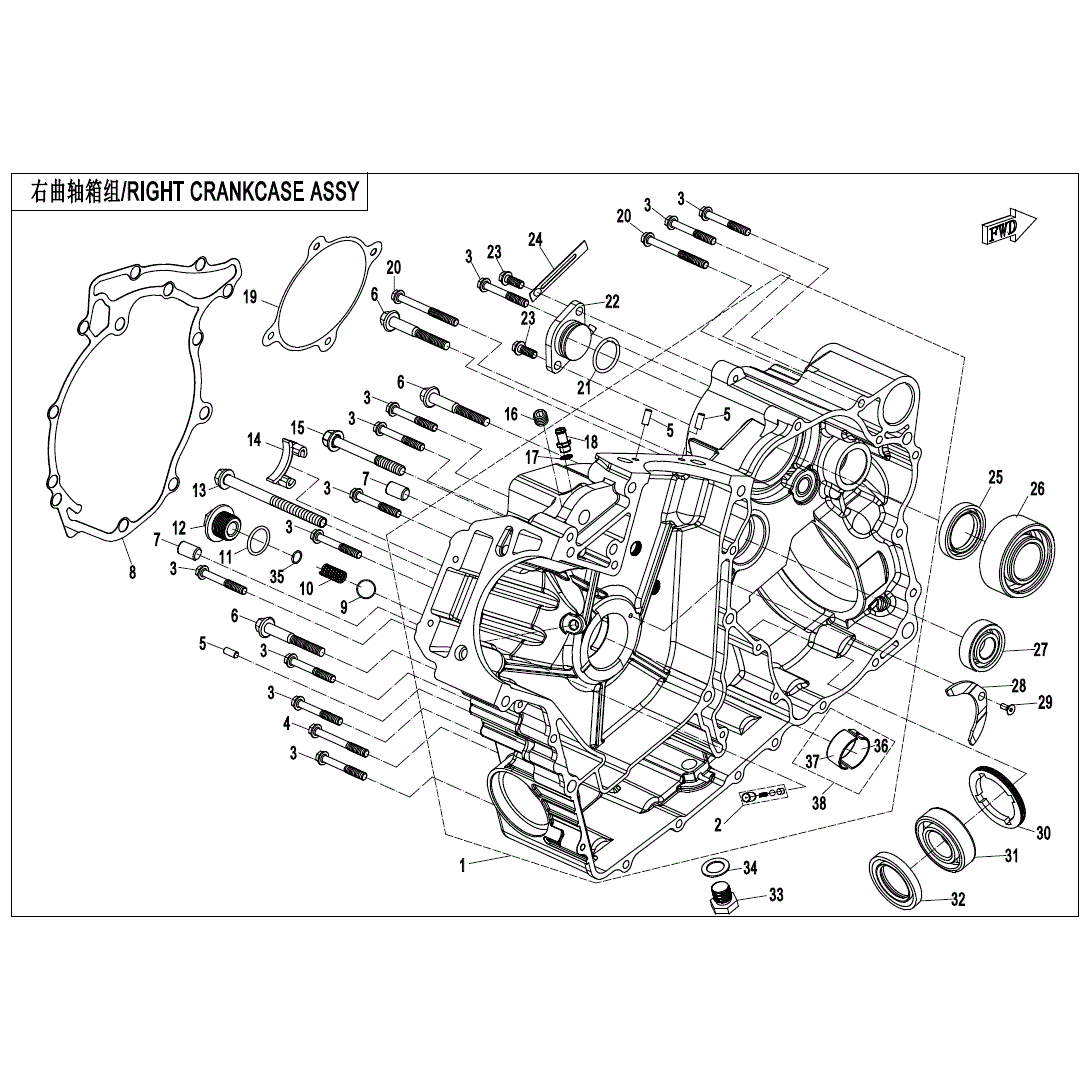

RIGHT CRANKCASE ASSY

Prices shown are USD
1
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0JWA-012100-20004
Crankcase, Right by CFMOTO
0JWA-012100-20004
$499.99 USD

2
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-011400-00001
Crankcase Nozzle Valve by CFMOTO
0800-011400-00001
$13.99 USD

3
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0180-013208-0010
Bolt M6x45 by CFMOTO
0180-013208-0010
$1.09 USD

4
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0010-021018-0010
Bolt M6x55 by CFMOTO
0010-021018-0010
$1.09 USD

5
Five metallic cylindrical dowel pins, three upright and two lying horizontally on a white background—ideal as Roller Pin P 5X11.8 by CFMOTO for OEM parts and UTV accessories.
Engine Roller Pin P 5X11.8 by CFMOTO
30406-00500
$1.09 USD

6
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0130-011109-0010
Bolt M8x10 by CFMOTO
0130-011109-0010
$1.99 USD

7
Smooth cylindrical metal dowel pin with a silver-gray finish and hollow center.
Dowel Pin 10X14 by CFMOTO
0010-021005
$1.09 USD

8
CVT Housing Gasket by CFMOTO
CVT Housing Gasket by CFMOTO
0JWA-012001
$10.99 USD

9
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 3120015
Crankcase Steel Detent Ball by CFMOTO
3120015
$0.99 USD

10
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0700-012603-1000
Relief Valve Spring by CFMOTO
0700-012603-1000
$4.99 USD

11
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0180-332004
O-Ring 19X2.5 by CFMOTO
0180-332004
$1.09 USD

12
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0GR0-014003
Decompressor Screw Plug by CFMOTO
0GR0-014003
$6.99 USD

13
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0130-011115-00001
Bolt by CFMOTO
0130-011115-00001
$3.99 USD

14
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-011007
Timing Chain Guide, Upper by CFMOTO
0800-011007
$5.99 USD

15
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0700-012003-00002
Bolt M8x73 by CFMOTO
0700-012003-00002
$2.99 USD

16
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 01A0-012010-00001
Screw by CFMOTO
01A0-012010-00001
$1.09 USD

17
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0010-011008
O-Ring 15.8X2.4 by CFMOTO
0010-011008
$1.09 USD

18
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0JWA-080009-00001
Water Pump Joint Cover by CFMOTO
0JWA-080009-00001
$4.99 USD

19
Black circular CVT housing gasket with four mounting holes, made of flexible material.
CVT Housing Gasket by CFMOTO
0JWA-012002
$5.99 USD

20
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0A70-011005-00001
Bolt M6x76 by CFMOTO
0A70-011005-00001
$1.09 USD

21
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0180-023002
O-Ring 24X2.5 by CFMOTO
0180-023002
$2.99 USD

22
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 080V-012200-2000
Gear Sensor by CFMOTO
080V-012200-2000
$29.99 USD

23
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0010-090005-0010
Bolt M6x16 by CFMOTO
0010-090005-0010
$1.09 USD

24
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 6WWV-030080-8000
Wire Clamp by CFMOTO
6WWV-030080-8000
$1.99 USD

25
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0180-012006-10000
Oil Seal 30X45X8 by CFMOTO
0180-012006-10000 Replaces 0180-012006-00001
$8.99 USD

26
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30499-03000
Bearing 3206A by CFMOTO
30499-03000
$109.99 USD

27
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30400-01704
Crankcase Bearing 6203 by CFMOTO
30400-01704
$29.99 USD

28
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-011003
Thrust Crankcase Washer by CFMOTO
0800-011003
$14.99 USD

29
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30122-040010850
Screw M4X10 by CFMOTO
30122-040010850
$2.99 USD

30
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0JWA-012004
Crankcase Bearing Retainer by CFMOTO
0JWA-012004
$16.99 USD

31
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30400-02501
Bearing 6025 by CFMOTO
30400-02501
$16.99 USD

32
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0010-011002
Oil Seal 25X40X8 by CFMOTO
0010-011002
$9.99 USD

33
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0JWA-012200-00001
Magnetic Drain Plug by CFMOTO
0JWA-012200-00001
$4.99 USD

34
Silver metal flat washer with smooth surface and circular design.
Oil Drain Plug Gasket 14.1X22X1 by CFMOTO
0JWA-012003
$1.99 USD

35
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30304-050440
Crankcase Washer by CFMOTO
30304-050440
$0.99 USD

36-01
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-011103-00011
Plain Bearing 2 Red Thin by CFMOTO
0800-011103-00011
$12.99 USD

36-02
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-011103-00021
Plain Bearing 2 Blue Thick by CFMOTO
0800-011103-00021
$12.99 USD

37-01
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-011102-00021
Plain Bearing 1 Blue Thick by CFMOTO
0800-011102-00021
$12.99 USD

37-02
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-011102-00011
Plain Bearing 1 Red Thin by CFMOTO
0800-011102-00011
$12.99 USD

38-01
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-0111A0-00001
Main Plain Bearing Red by CFMOTO
0800-0111A0-00001
$24.99 USD

38-02
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 0800-0111B0-00001
Main Plain Bearing Blue by CFMOTO
0800-0111B0-00001
$24.99 USD


RIGHT CRANKCASE ASSY - 2024 CFMOTO UFORCE 1000 XL

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: CF-UTV-SCHEM-941
