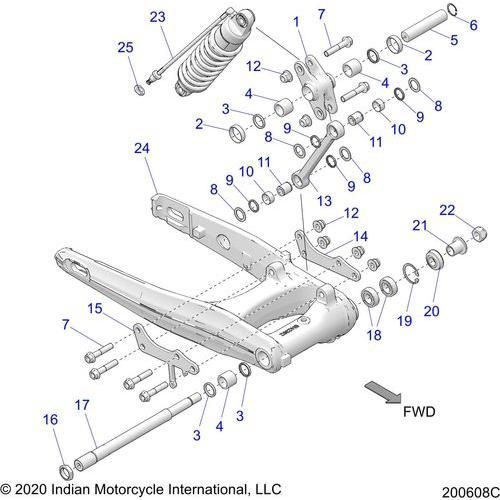

Suspension, Rear Asm., Swing Arm & Shock All Options - 2021 Indian Springfield 111 Schematic-22399 OEM Schematic
Suspension, Rear Asm., Swing Arm & Shock All Options - 2021 Indian Springfield 111 Schematic-22399 OEM Schematic

Suspension, Rear Asm., Swing Arm & Shock All Options

Ref #1 Gray metal rocker arm with two mounting holes and a cylindrical pivot bearing.

Rocker Arm by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 1544149 For Victory & Indian Motorcycles –...

$334.99 USD

SKU: 1544149
More Info
Ref #2 Bearing Thrust by Polaris 3514836 OEM Bearing

Rear Suspension Thrust Bearing by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3514836 For Victory & Indian Motorcycles –...

$7.49 USD

SKU: 3514836
More Info
Ref #3 Seal by Polaris 3610096 Suspension Repair

Seal by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3610096 For Victory & Indian Motorcycles –...

$14.99 USD

SKU: 3610096
More Info
Ref #4 Suspension Link Needle Roller Bearing by Polaris 3514544 Suspension Repair

Suspension Link Needle Roller Bearing by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3514544 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 3514544
More Info
Ref #5 Pivot Rocker by Polaris 5138483 OEM Hardware

Pivot Rocker by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5138483 For Victory & Indian Motorcycles –...

$77.99 USD

SKU: 5138483
More Info
Ref #6 Ring-Ret Int 1&Quot; by Polaris 7710509 Retaining Ring

Internal Retaining Ring, 1" by Polaris

Genuine Security: Polaris OEM Part #7710509 Retaining Ring – Available at buywitchdoctors.com. In the intricate...

$12.99 USD

SKU: 7710509
More Info
Ref #7 Screw by Polaris 7520166 OEM Screw

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7520166 For Victory & Indian Motorcycles –...

$16.99 USD

SKU: 7520166
More Info
Ref #8 Rear Suspension Thrust Bearing Spacer by Indian

Rear Suspension Thrust Bearing Spacer by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5455470 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 5455470
More Info
Ref #9 Seal 22X28X3 by Indian

Seal 22X28X3 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3610325 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 3610325
More Info
Ref #10 Bearing by Indian

Bearing by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3515125 For Victory & Indian Motorcycles –...

$10.99 USD

SKU: 3515125
More Info
Ref #11 Pushrod Pivot by Indian

Pushrod Pivot by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5142437 For Victory & Indian Motorcycles –...

$16.99 USD

SKU: 5142437
More Info
Ref #12 Black hex flange Nylok nut with M12x1.75 thread and nylon locking insert.

Hex Flange Nylok Nut M12X1.75 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547441 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7547441
More Info
Ref #13 Gray metal pushrod with cylindrical ends and a rectangular shaft designed for engine use.

Pushrod by Indian

Replace your Pushrod by Polaris on your Indian motorcycle with genuine OEM Indian Polaris parts...

$104.99 USD

SKU: 5142436
More Info
Ref #14 Swingarm Gusset Plate, Left by Indian

Swingarm Gusset Plate, Left by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5266303 For Victory & Indian Motorcycles –...

$34.99 USD

SKU: 5266303
More Info
Ref #15 Swingarm Gusset Plate, Right by Indian

Swingarm Gusset Plate, Right by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5266304 For Victory & Indian Motorcycles –...

$44.99 USD

SKU: 5266304
More Info
Ref #16 Nut-Jam M18X1.5 Zc by Polaris 7547693 OEM Nut

Jam Nut M18X1.5 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7547693 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7547693
More Info
Ref #17 Pivot Suspension by Polaris 5138420 OEM Hardware

Swingarm Pivot Shaft by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5138420 For Victory & Indian Motorcycles –...

$139.99 USD

SKU: 5138420
More Info
Ref #18 Swingarm Bearing by Polaris 3514414 Suspension Repair

Swingarm Bearing by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 3514414 For Victory & Indian Motorcycles –...

$19.07 USD

SKU: 3514414
More Info
Ref #19 Snap Ring, Retaining by Polaris 7670149 Suspension Repair

Snap Ring by Polaris

Essential Security: Snap Ring Polaris OEM Part#7670149 - Available at buywitchdoctors.com For crucial internal components,...

$8.99 USD

SKU: 7670149
More Info
Ref #20 Spacer Pivot LH by Polaris 5138419 OEM Spacer

Pivot Spacer, Left by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5138419 For Victory & Indian Motorcycles –...

$24.99 USD

SKU: 5138419
More Info
Ref #21 Spacer Pivot Outer LH by Polaris 5138622 OEM Spacer

Pivot Spacer, Outer Left by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5138622 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 5138622
More Info
Ref #22 Nut-M18X1.5 Nylock Zpc by Polaris 7547685 OEM Nut

Nylok Nut M18X1.5 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547685 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7547685
More Info
Ref #23 Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
products.product.sold_out

Item Not Available

This item is no longer available. Please contact us for possible substitutes.    CONTACT US

$0.00 USD

SKU:
More Info
Ref #24 Swingarm, Mach by Indian

Swingarm, Mach by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5142382 For Victory & Indian Motorcycles –...

$954.99 USD

SKU: 5142382
More Info
Ref #25 Hexagonal metal jam nut with smooth silver finish and circular threaded center.

Jam Nut by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547148 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7547148
More Info

Suspension, Rear Asm., Swing Arm & Shock All Options - 2021 Indian Springfield 111

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-22399

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
