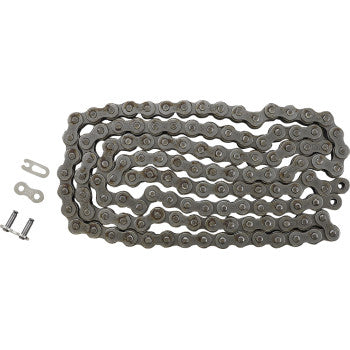

JT 520 HDS Super Heavy Duty Chain, 124 Links, Steel – JTC520HDS124SL

Price
$49.83 USD
Normally ships in 2-3 business days

Inventory:

Loading..
Shipping delay
SKU: JTC520HDS124SL
In stock and ready for shipping

SKU: JTC520HDS124SL

A stretched, kinked or rusty chain robs power, eats sprockets and can snap at the worst moment. The JT 520 HDS Super Heavy Duty Chain, 124 Links, Steel is a tough, non-sealed chain built for low friction and easy maintenance.

JT makes a full range of motorcycle and ATV chains from the highest grade special steel alloys. Shop the full line in our JT chain collection.

Why Choose the JT 520 HDS Super Heavy Duty Chain, 124 Links, Steel

Key Features

  • Non-sealed super heavy duty 520 chain
  • 4-pin rivets, solid bushes
  • Average tensile strength 4,020 kgf (39.4 kN) (per JT Sprockets specs (verify before ordering))
  • Recommended for Street up to 350cc; motocross and ATV up to 600cc (per JT Sprockets specs (verify before ordering))
  • 124 links
  • Black steel finish
  • Made from high-grade special steel alloys
  • Meets or exceeds the requirements of modern street, MX, enduro, off-road and ATV machines

Specifications

  • Brand: JT
  • Part number: JTC520HDS124SL
  • Pitch: 520
  • Series: HDS
  • Type: Non-sealed super heavy duty
  • Links: 124
  • Finish: Steel
  • Avg. tensile strength: 4,020 kgf (39.4 kN) (per JT Sprockets specs (verify before ordering))
  • Weight per 100 links: 1.55 kg (per JT Sprockets specs (verify before ordering))
  • Connecting link: Included; JT SL type (clip)

Fitment

Chains fit by pitch and link count, not by vehicle. This is a 520-pitch chain with 124 links. Match the pitch to your sprockets and count the links on your old chain (or check your manual). If you change sprocket sizes, you may need more or fewer links. JT’s application ranges are for reference only; always follow your manufacturer’s recommendation.

Which JT Chain Is Right for You?

  • 420 / 428 HDR: Non-sealed heavy duty for minis, small bikes and small ATVs.
  • 520 HDR: Non-sealed heavy duty up to 250cc MX and ATV.
  • 520 HDS: Non-sealed super heavy duty up to 600cc MX and ATV.
  • 520 X1R: X-ring sealed for 200-450cc motocross.
  • 520 X1R3: X-ring sealed for street up to 800cc and ATVs 200-600cc.
  • 520 Z3: Super heavy duty X-ring for street and dual-purpose up to 1,000cc.
  • 530 X1R: X-ring sealed for street up to 900cc.

Installation Tips

  1. Replace chain and sprockets together for the longest life.
  2. Count links and cut the chain to length with a chain breaker if needed.
  3. Install the connecting link with new o-rings (sealed chains).
  4. Install the clip with the closed end facing the direction of chain travel.
  5. Set chain slack to your manufacturer’s spec and align the rear wheel.
  6. Re-check slack after the first ride.

Care and Maintenance

  • Clean with a chain-safe cleaner.
  • Lube after washing and every few hundred miles or after wet rides.
  • Check slack and adjust regularly.
  • Replace when stretch or tight spots appear, or sprocket teeth hook.

Related JT Parts

Shop More Drivetrain Parts

Helpful Guides From the Witchdoctors Blog

Frequently Asked Questions

How do I know how many links I need?

Count your old chain’s links (pins) or check your manual. Changing sprocket sizes can change the link count.

Is a connecting link included?

Yes. JT chains include a connecting link (SL type).

Should I replace sprockets too?

Yes. A new chain on worn sprockets wears out fast.

Can I return it?

Uninstalled, uncut chains in original packaging can usually be returned. Contact our customer service team, and we’ll help.
