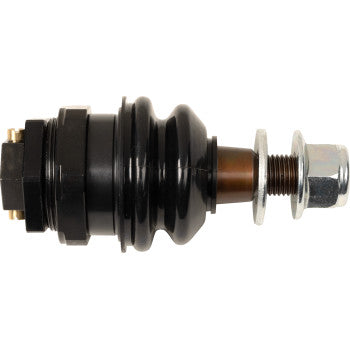

Demon X-Treme Heavy Duty Ball Joint for Polaris RZR XP 4 Turbo/Pro R/Turbo R - Lower

Worn ball joints mean sloppy steering, clunks and uneven tire wear. The Demon X-Treme Heavy Duty Ball Joint for Polaris RZR XP 4 Turbo/Pro R/Turbo R - Lower is made from 4340 chromoly and is serviceable, so it’s built to outlast the stock part.

Witchdoctors sells genuine Demon Powersports parts. Demon builds heavy-duty axles, lift kits and suspension parts for ATVs and UTVs.

Why Choose the Demon X-Treme Heavy Duty Ball Joint for Polaris RZR XP 4 Turbo/Pro R/Turbo R - Lower

Demon’s X-Treme Heavy Duty (Race Spec) ball joints step up from its HD joints with an oversized 4340 chromoly housing and cap, a 300M steel stud, and a threaded body and cap with no snap ring. Demon rates them at more than 3 times the strength of OEM, and they’re greasable, adjustable and rebuildable.

Key Features

• 4340 chromoly with an oversized housing and cap, per Demon
• 300M steel stud, per Demon
• Threaded body and cap with no snap ring
• Greasable, adjustable and rebuildable
• Built for lifts and oversized tires
• Lifetime warranty (excludes racing and commercial use), per Demon

Specifications

• Brand: Demon Powersports
• Part number: PABJ-6009XHD
• Position: Lower
• Line: X-Treme Heavy Duty (Race Spec)
• Material: 4340 chromoly housing, 300M steel stud
• Serviceable: Yes, greasable
• Warranty: Lifetime, excludes racing and commercial use, per Demon

Specifications are from Demon and catalog listings (verify before ordering).

Fitment

Listed for these vehicles, per catalog listings (verify before ordering):

• Polaris RZR XP 4 Turbo 2016-2020, RZR Pro R and Pro R 4 2022-2024, RZR Turbo R and Turbo R 4 2022-2024

Always confirm your exact year, model, trim and position before ordering. Lifted or long-travel machines need parts matched to the lift or suspension kit.

How to Choose

• Match the ball joint to your vehicle and position (upper or lower).
• Check both sides; ball joints usually wear in pairs.
• Have a ball joint press available for installation.
• Grease serviceable joints regularly to extend their life.

Installation Tips

1. Support the machine safely and remove the wheel.
2. Separate the knuckle from the A-arm.
3. Press out the old ball joint with a ball joint press.
4. Press in the new joint and install the retaining hardware.
5. Grease the joint, reassemble and torque to spec.

If you’re not comfortable with suspension or drivetrain work, have a qualified technician install it.

Care and Inspection

• Inspect boots, joints and hardware after hard rides, and fix torn boots right away.
• Wash off mud and debris that can hold moisture against parts.
• Listen for clicking, clunking or vibration, which are early signs of wear.
• Recheck torque on fasteners after the first ride.

Related Demon Parts

• Demon Heavy Duty Ball Joint for Polaris RZR XP 1000/Turbo - Upper
• Demon X-Treme Heavy Duty Ball Joint for Polaris RZR/Ranger/General - Upper or Lower (depends on vehicle)
• Demon Heavy Duty Tie Rods for CFMoto ZForce 950 Sport
• Demon Lift Kit for Polaris Ranger 570/900/1000 (2")

Shop all Demon Powersports parts, UTV ball joints, UTV A-arms and suspension components.

Helpful Guides From the Witchdoctors Blog

• UTV ATV Ball Joint Upgrade Guide
• Polaris Tech Tip: How to Inspect Polaris A-Arm Bushings and Ball Joints
• Can You Use Anti-Seize and Blue Loctite on the Same UTV Suspension Bolt?

Frequently Asked Questions

Is this a genuine Demon Powersports part?

Yes. Witchdoctors sells genuine Demon Powersports parts by part number.

Do I need special tools?

Yes. Most ball joints need a ball joint press to remove and install.

How often should I grease it?

Grease serviceable joints regularly, and after washing or riding in water and mud.

Can I return it?

Contact our customer service team before installing the part, and we’ll help under our return policy.

Where to Ride

Built tougher, ready for the trail. Put it to work at one of these off-road destinations:

• Spearhead Trails (southwest Virginia): a multi-trail system across the Virginia coalfields
• Hollister Hills SVRA (Hollister, California): a state vehicular recreation area with designated ATV and 4x4 areas

Order the Demon X-Treme Heavy Duty Ball Joint for Polaris RZR XP 4 Turbo/Pro R/Turbo R - Lower Today

Add the Demon X-Treme Heavy Duty Ball Joint for Polaris RZR XP 4 Turbo/Pro R/Turbo R - Lower to your cart, and Witchdoctors will ship it fast. Not sure it fits? Contact our team with your year, make, model and VIN, and we’ll confirm before you order.
