Genuine Yamaha Ball Joint Set — OEM Part #2HC-2530T-13-00
Worn suspension parts turn a smooth ride into a punishing one and make handling unpredictable. The genuine Yamaha Ball Joint Set restores the factory geometry, travel and ride quality of your YXZ1000R.
A-arms, trailing arms, swingarms, shocks, springs, stabilizers, knuckles and bushings control wheel movement and alignment. Bent or worn parts cause wandering, uneven tire wear and harsh handling. This part is confirmed for 4 Yamaha models from 2022 to 2025. See the full fitment list below.
Ball Joint Set at a Glance
-
OEM part number: 2HC-2530T-13-00
-
Brand: Yamaha (genuine factory part)
-
Part type: OEM Ball Joint
-
Fits: YXZ pure-sport side-by-side models, 2022–2025
-
Condition: New
Yamaha Models and Years This Ball Joint Set Fits
Genuine Yamaha part #2HC-2530T-13-00 fits the models and years below. To be certain, match the part number to the factory parts diagram for your machine or contact us with your VIN before ordering.
Yamaha YXZ pure-sport side-by-side Fitment
| Model |
Model Years |
| Yamaha YXZ1000R |
2022–2025 |
| Yamaha YXZ1000R SS |
2022–2025 |
| Yamaha YXZ1000R SS XT-R |
2022–2025 |
| Yamaha YXZ1000R SS XTR |
2022–2023 |
Why Choose a Genuine Yamaha OEM Ball Joint Set?
- Factory geometry for straight tracking
- Correct bushing and ball joint fit
- Restores original ride height and travel
- Spreads loads across the frame as Yamaha designed
- Sold by Witchdoctors, with factory part numbers and parts diagrams for every Yamaha model we support
Features and Materials
Key Features
- Genuine Yamaha OEM suspension part, part #2HC-2530T-13-00
- Original mounting points and dimensions
- Corrosion-resistant coating where applicable
- Built for full-travel off-road and work use
- Works with factory bushings, ball joints and hardware
Materials and Construction
Yamaha suspension parts use high-strength steel for arms, knuckles and links with corrosion-resistant coatings, rubber or polymer bushings, and shocks with steel bodies, chromed shafts and oil or gas damping.
Common Reasons Riders Replace This Part
- Replacing bent arms, knuckles or links after an impact
- Fixing clunks and wandering from worn bushings
- Restoring ride height and damping
- Rebuilding the suspension on a high-hour machine
Signs Your Ball Joint Set Needs Replacing
- Clunking or knocking over bumps
- Wandering, pulling or loose handling
- Uneven or rapid tire wear
- Visible bends, cracks or leaking shocks
- Play in ball joints or bushings
Installation Tips
- Support the machine safely with the suspension unloaded.
- Check the Yamaha parts diagram for bushings, ball joints and hardware.
- Remove the damaged part and inspect the frame mounts.
- Install, tightening pivot bolts at ride height if the manual specifies.
- Torque all hardware, set toe, and recheck after the first ride.
Not sure whether to tackle it yourself? Read when to seek professional help or DIY before you start.

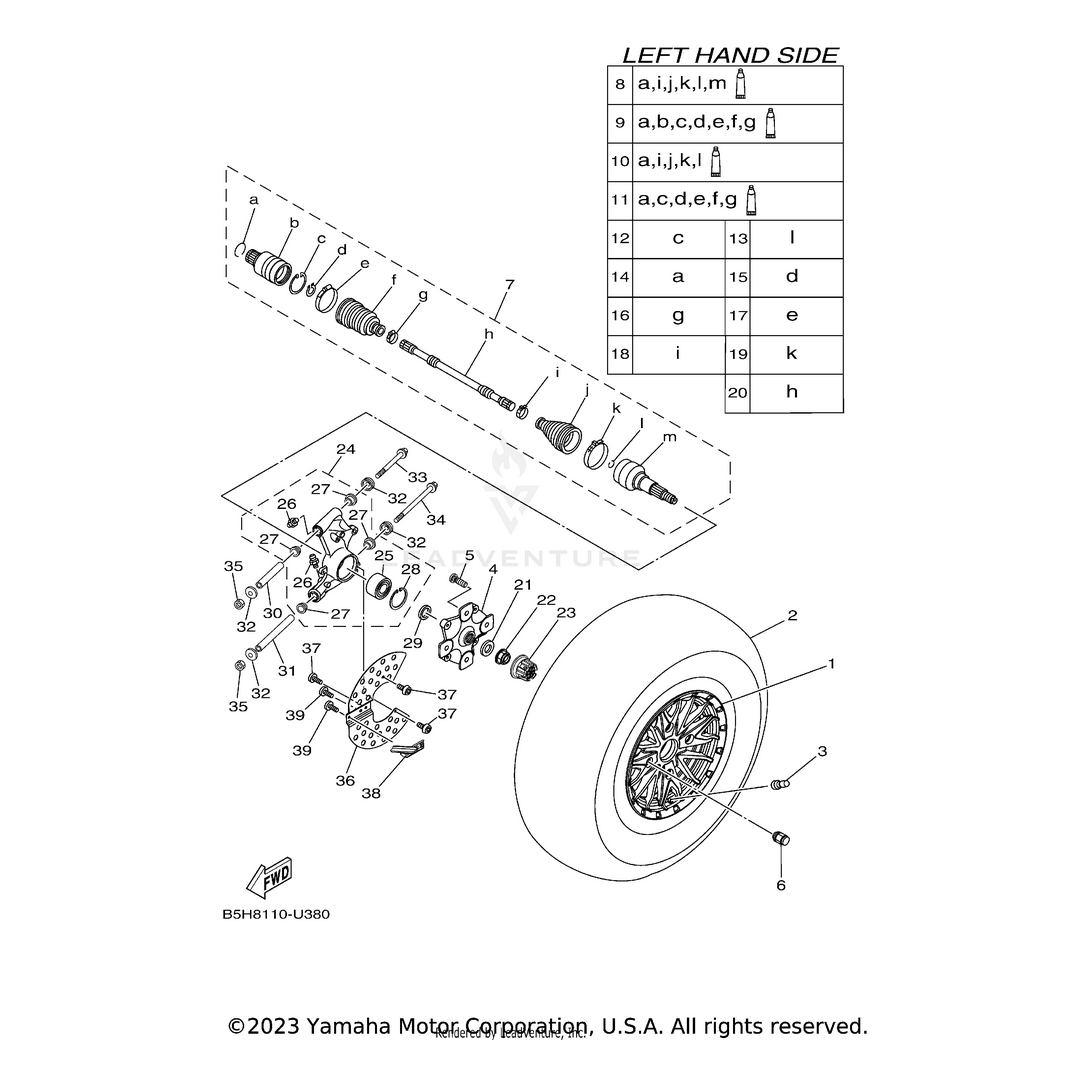

Yamaha Parts Diagrams for Your Machine
Find part #2HC-2530T-13-00 and every part installed with it in the factory Yamaha parts diagrams for your model:
Related OEM Parts for the Same Machines
Doing the job right? These genuine Yamaha parts fit the same models and are often replaced at the same time:
Recommended Accessories and Maintenance Supplies
Pair your Ball Joint Set with these parts and supplies:
Helpful Guides from the Witchdoctors Blog
Frequently Asked Questions
What is the OEM part number for this Yamaha Ball Joint Set?
The genuine Yamaha part number is 2HC-2530T-13-00. Use it to match this part to your factory parts diagram.
Which Yamaha models does part #2HC-2530T-13-00 fit?
It fits the YXZ1000R (2022–2025); YXZ1000R SS (2022–2025); YXZ1000R SS XT-R (2022–2025); YXZ1000R SS XTR (2022–2023).
Is this a genuine Yamaha part?
Yes. This is a genuine Yamaha OEM part, the same part number used at the factory, not an aftermarket copy.
Do I need an alignment after replacing suspension parts?
Yes, check and set toe after installation.
Should I replace both sides?
For wear items like bushings and shocks, replace in pairs to keep handling balanced.
Is OEM better than aftermarket suspension?
OEM restores factory ride and geometry. Aftermarket arms may add strength or travel but often change geometry.
Order Your Genuine Yamaha Ball Joint Set Today
Get your YXZ1000R back to factory condition. Add the genuine Yamaha Ball Joint Set (part #2HC-2530T-13-00) to your cart today, and order the related parts above at the same time so you can finish the job in one go.
