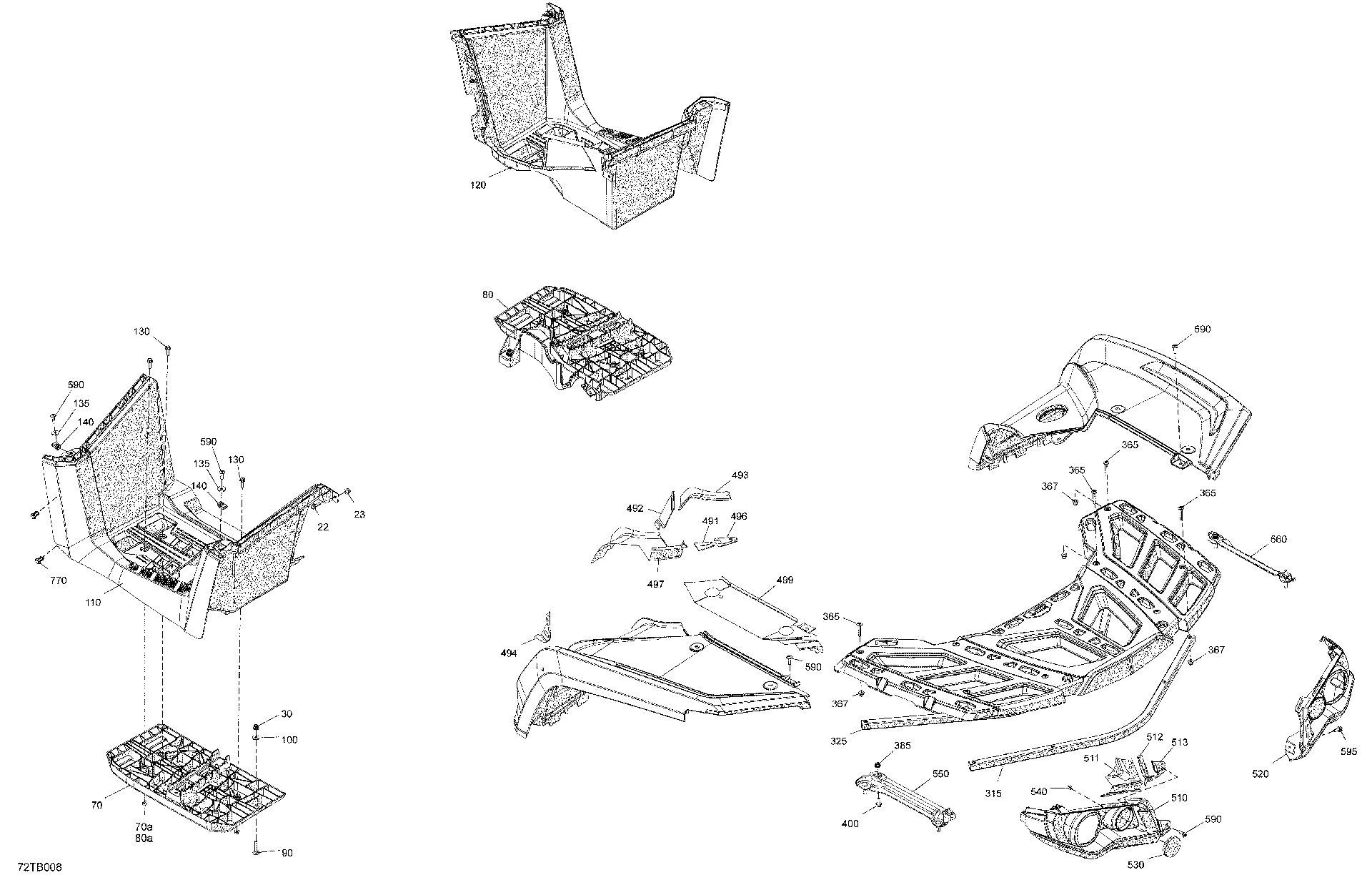

An Image of a Genuine Can-Am Parts Schematic Diagram showing the schematic - BODY - REAR SECTION
An Image of a Genuine Can-Am Parts Schematic Diagram showing the schematic - BODY - REAR SECTION

BODY - REAR SECTION

Prices shown are USD
70a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232862412
Square Nut M6 by Can-Am
232862412
$1.49 USD

80a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232862412
Square Nut M6 by Can-Am
232862412
$1.49 USD

22
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662054
Hex Flange Screw M6x20 by Can-Am
207662054
$1.09 USD

23
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261434
Flange Elastic Nut M6 by Can-Am
233261434
$4.49 USD

30
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261434
Flange Elastic Nut M6 by Can-Am
233261434
$4.49 USD

70
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705011540
Structural Footboard (Left) by Can-Am
705011540
$119.99 USD

80
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705011542
Structural Footboard (Right) by Can-Am
705011542
$109.99 USD

90
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207763554
Carriage Bolt M6x35 by Can-Am
207763554
$2.19 USD

100
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 234062410
Flat Washer 6mm by Can-Am
234062410
$0.79 USD

110
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007040
Step (Left) by Can-Am
705007040
$97.99 USD

120
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007039
Step (Right) by Can-Am
705007039
$129.99 USD

130
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662054
Hex Flange Screw M6x20 by Can-Am
207662054
$1.09 USD

135
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 224061201
Flat Washer by Can-Am
224061201
$1.39 USD

140
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100198
Panel Nut M6x1.0 by Can-Am
250100198
$2.19 USD

315
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705016640
Tube by Can-Am
705016640 Replaces 705005469
$38.99 USD

325
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705016641
Tube by Can-Am
705016641 Replaces 705005470
$42.99 USD

365
Torx Screw M6x35 by Can-Am
Torx Screw M6x35 by Can-Am
250000646
$1.00 USD

367
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261434
Flange Elastic Nut M6 by Can-Am
233261434
$4.49 USD

385
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100199
Insert Half Hex Body M6x1.0 by Can-Am
250100199
$3.29 USD

400
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207561644
HexFlange Screw M6x16 Scotch Grip by Can-Am
207561644
$1.99 USD

491
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002456
Heat Shield by Can-Am
707002456
$3.89 USD

492
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002457
Heat Shield by Can-Am
707002457
$3.89 USD

493
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002458
Heat Shield by Can-Am
707002458
$19.99 USD

494
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002459
Heat Shield by Can-Am
707002459
$3.89 USD

496
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002461
Heat Shield by Can-Am
707002461
$3.89 USD

497
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002462
Heat Shield by Can-Am
707002462
$3.89 USD

499
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002464
Heat Shield by Can-Am
707002464
$3.89 USD

510
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705006643
Rear Facia (Left) by Can-Am
705006643
$15.99 USD

511
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002103
Heat Shield by Can-Am
707002103
$10.49 USD

512
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002107
Heat Shield by Can-Am
707002107
$2.59 USD

513
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002594
Heat Shield by Can-Am
707002594
$0.98 USD

520
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705006650
Rear Facia (Right) by Can-Am
705006650
$15.99 USD

530
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705016982
Reflector {Red} by Can-Am
705016982
$14.99 USD

540
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233251434
Flange Elastic Nut M5 by Can-Am
233251434
$2.09 USD

550
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007277
Support (Left) by Can-Am
705007277
$30.99 USD

560
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 705007278
Support (Right) by Can-Am
705007278
$30.99 USD

590
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000722
Torx Screw M6x20 by Can-Am
250000722
$1.69 USD

595
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207661654
Hex Flange Screw M6x16 by Can-Am
207661654
$2.19 USD

770
Black plastic rivet with a flat circular head and tapered split shaft for secure fastening.
Tuflok Plastic Rivet by Can-Am
293150230
$2.68 USD


BODY - REAR SECTION - 2022 CAN AM OUTLANDER 1000R EFI XT

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: CAN-AM-ATV-SCHEM-19433

Can-Am UTV/ATV OEM Parts Schematic: The Ultimate Precision Repair Tool

Schematic Group: Genuine OEM CAN-AM - BODY - REAR SECTION - 2022 CAN AM OUTLANDER 1000R EFI XT
