Drive Train, Primary Drive

Ref #1 Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
products.product.sold_out

Item Not Available

This item is no longer available. Please contact us for possible substitutes.    CONTACT US

$0.00 USD

SKU:
More Info
Ref #2 Spring, Split Gear by Polaris 7042096 Split Gear

Split Gear Spring by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7042096 For Victory & Indian Motorcycles –...

$44.99 USD

SKU: 7042096
More Info
Ref #3 Dark gray metal split gear with evenly spaced teeth and a central circular hole.

Split Gear, Backlash by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 6230273 For Victory & Indian Motorcycles –...

$369.99 USD

SKU: 6230273
More Info
Ref #4 Ring, Retaining by Polaris 7710529 Retaining Ring

Retaining Ring by Polaris

Genuine Security: Polaris OEM Part #7710529 Retaining Ring – Available at buywitchdoctors.com. In the intricate...

$34.99 USD

SKU: 7710529
More Info
Ref #5 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 1341505

Split Gear [Incl. 1-4] by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 1341505 For Victory & Indian Motorcycles –...

$439.99 USD

SKU: 1341505
More Info
Ref #6 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 7556449

Thrust Washer by Polaris

Replace your Washer, Thrust on your Victory motorcycle with genuine OEM Victory Polaris parts from...

$16.99 USD

SKU: 7556449
More Info
Ref #7 Gray metal compensator gear with evenly spaced teeth and a central hexagonal cutout.

Gear, Compensator by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 6230333 For Victory & Indian Motorcycles –...

$234.99 USD

SKU: 6230333
More Info
Ref #8 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 5133045

Sleeve, Compensator by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5133045 For Victory & Indian Motorcycles –...

$124.99 USD

SKU: 5133045
More Info
Ref #9 Metallic gray circular slider compensator with internal gear teeth and three raised lobes on top.

Slider, Compensator by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5135550 For Victory & Indian Motorcycles –...

$309.99 USD

SKU: 5135550
More Info
Ref #10 Spring, Belleville, Compensator [Built 8/03/11 And Before] by Polaris 7042019 OEM Hardware

Clutch Spring, Belleville [Built 8/03/11 And Before] by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7042019 For Victory & Indian Motorcycles –...

$39.99 USD

SKU: 7042019
More Info
Ref #11 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 5133085

Retainer, Compensator by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5133085 For Victory & Indian Motorcycles –...

$104.99 USD

SKU: 5133085
More Info
Ref #12 Split Lock Washer by Polaris 7556166 OEM Washer

Split Lock Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556166 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7556166
More Info
Ref #13 Hex Nut by Polaris 7547019 Clutch Repair Parts

Hex Nut by Polaris

Polaris UTV/ATV OEM CVT Clutch Components - Available at buywitchdoctors.com Product Specifications: Genuine OEM Polaris...

$29.99 USD

SKU: 7547019
More Info
Ref #14 Bolt, Oil Jet by Polaris 7518008 OEM Screw

Oil Jet Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7518008 For Victory & Indian Motorcycles –...

$34.99 USD

SKU: 7518008
More Info
Ref #15 Round metallic flat washer with smooth surface and central circular hole.

Flat Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7555987 For Victory & Indian Motorcycles –...

$2.99 USD

SKU: 7555987
More Info
Ref #16 Stator by Polaris 2204532 Stator

Stator, Charging, 20 Mag, 38A by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 4012082 For Victory & Indian Motorcycles – Available...

$699.99 USD

SKU: 4012082
More Info
Ref #17 Black curved semi-cylindrical woodruff key with smooth surface and rounded edges.

Key, Woodruff by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7721122 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7721122
More Info
Ref #18 Ring, Retaining, 35 Degree by Polaris 7710490 Retaining Ring

Retaining Ring, 35 Degree by Polaris

Genuine Security: Polaris OEM Part #7710490 Retaining Ring – Available at buywitchdoctors.com. This Part Also...

$29.99 USD

SKU: 7710490
More Info
Ref #19 Washer, Flat by Polaris 7556237 OEM Washer

Flat Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7556237 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7556237
More Info
Ref #20 Crankshaft Gear Starter Drive by Polaris 1015167 Crankshaft

Starter Drive Crankshaft Gear by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 1015167 For Victory & Indian Motorcycles –...

$194.99 USD

SKU: 1015167
More Info
Ref #21 Starter Drive Clutch Bearing by Polaris 4060156 Starter
products.product.sale

Victory Starter Drive Clutch Bearing by Polaris

Revitalize Your Ride: Genuine Polaris Starter Drive Clutch Bearing for Victory Motorcycles (OEM Part #4060156)...

$529.99 USD

SKU: 4060156
More Info
Ref #22 Screw by Polaris 7517260 OEM Screw

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517260 For Victory & Indian Motorcycles –...

$11.99 USD

SKU: 7517260
More Info
Ref #23 Metallic gray crankshaft gear with evenly spaced teeth and central mounting holes.

Crankshaft Gear, Primary by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 6230392 For Victory & Indian Motorcycles –...

$330.99 USD

SKU: 6230392
More Info

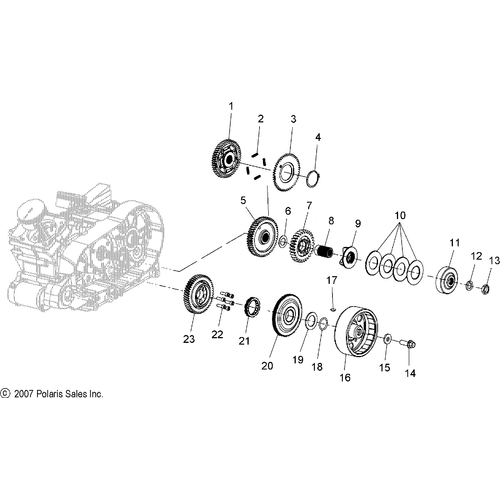

Drive Train, Primary Drive - 2009 Victory Hammer/Hammer Sport All Options - V09Hb36/Hs36

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic 4249

Replace your missing, broken, or worn out Polaris OEM Parts on your Victory Motorcycle with genuine OEM Victory Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
