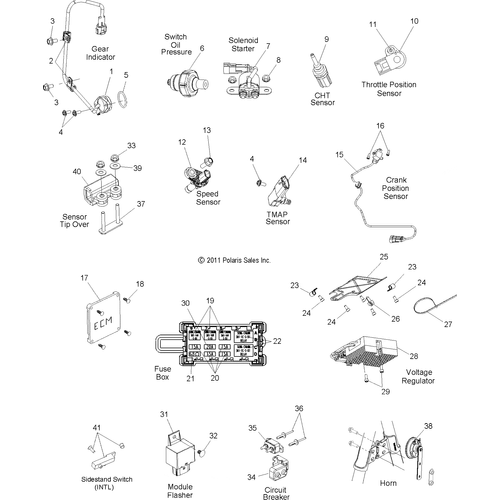

Electrical, Switches And Sensors And Components - 2013 Victory Judge All Options - V13Mb36 Schematic 2831 OEM Schematic
Electrical, Switches And Sensors And Components - 2013 Victory Judge All Options - V13Mb36 Schematic 2831 OEM Schematic

Electrical, Switches And Sensors And Components

Prices shown are USD
1
Gear Indicator Switch by Polaris 4010976 Gear Position Sensor
Gear Indicator Switch by Polaris
4010976 Replaced by 4013956
$64.99 USD
2
The Clamp-Rear Brake by Polaris is a metal P-clamp with a black rubber coating and two flat, holed ends for screws, designed to secure cables or pipes on Victory motorcycles. Shown on a white background; fits as an OEM Victory Polaris part.
Vinyl Coated Clamp by Polaris
7080983
$4.99 USD
3
Silver hex head screw with a smooth cylindrical shaft and a wide flange base.
Screw by Polaris
7517278
$6.99 USD
4
Screw by Polaris
Screw by Polaris
7518338
$5.99 USD
5
A black O-Ring by Polaris, compatible with OEM Victory Polaris parts, displayed on a white background.
O-Ring by Polaris
5412530
$1.99 USD
6
Oil Pressure Switch by Polaris 4080746 Oil Pressure Sensor
Oil Pressure Switch by Polaris
4080746 Replaces 4110211, 4010649, 4012668
$54.99 USD
7
Starter Solenoid by Polaris 4012001 Starter Repair
Starter Solenoid by Polaris
4012001 Replaced by 4081641
$109.99 USD
8
Starter Solenoid Nut by Polaris 7710495 Starter Repair
Hex Flange Nut M6 by Polaris
7710495
$5.99 USD
9
Sensor, Cylinder Head Temp by Polaris 4012971 Cylinder Head Temp Sensor
Cylinder Head Temperature Sensor by Polaris
4012971 Replaced by 4014970
$79.99 USD
10
An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 4012101
Throttle Position Sensor by Polaris
4012101
$446.49 USD
11
Throttle Position Sensor Screw by Polaris 7518901 OEM Screw
Throttle Position Sensor Screw by Polaris
7518901
$5.99 USD
12
Speed Sensor by Polaris 4011884 Wheel Speed Sensor
Wheel Speed Sensor by Polaris
4011884
$229.99 USD
13
A close-up of a single black Screw by Polaris with washer, partially threaded, against a plain white background—ideal for OEM Victory Polaris or other Victory motorcycle parts.
Screw by Polaris
7517750
$12.99 USD
14
Map Sensor by Polaris 2410422 MAP Sensor
Map Sensor by Polaris
Replaced by 2411528
$125.99 USD
15
Crank Position Sensor by Polaris 4012280 Crankshaft Position Sensor
Crankshaft Position Sensor by Polaris
4012280
$139.99 USD
16
Crank Position Sensor Screw by Polaris 7518045 OEM Screw
Crank Position Sensor Screw by Polaris
7518045
$12.99 USD
17
Black rectangular motorcycle PCM service module with barcode stickers and mounting holes placed next to a metal ruler.
Pcm, Service by Polaris
4013160 Replaced by 4015775
$614.99 USD
18
Clip, Plastic Dart, Black by Polaris 7670141 OEM Clip
Plastic Dart Clip, Black by Polaris
7670141
$5.99 USD
19
Relay, Series 303 by Polaris 4011283 Relay
Relay, 20 Amp by Polaris
4011283 Replaced by 4016819
$44.99 USD
20
The image shows a Polaris Fuse, 15A/32V, with blue casing, metal prongs, and 15 in white—OEM compatible for Victory motorcycles—displayed on a white background.
Fuse, Mini Blade, 15 Amp. by Polaris
2410280 Replaced by 4010859
$9.99 USD
21
Resistor, 68 Ohm, Mini by Polaris 4013062 OEM Hardware
Resistor 68 Ohm Mini by Polaris
4013062
$54.99 USD
22
Relay, Series 301 by Polaris 4011284 Relay
Series 301 Relay by Polaris
4011284
$44.99 USD
24
Black hex socket head bolt with partially threaded red locking compound on shaft.
Turn Signal Bolt by Polaris
7517739 Replaces 7517479
$11.99 USD
25
An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 5248079-408
Voltage Regulator Bracket, Zinc/Black by Polaris
5248079-408
$84.99 USD
26
Clip, Silencer by Polaris 7670102 OEM Clip
Silencer Clip by Polaris
7670102
$2.99 USD
27
The Zip Tie by Polaris, shown diagonally on a white background, features a ridged side and rectangular locking head—ideal for securing OEM Victory Polaris or other Victory motorcycle parts.
Zip Tie by Polaris
7080138 Replaces 5433193
$2.99 USD
28
Rectifier / Regulator Black by Polaris 4012718 Voltage Rectifier / Regulator
Voltage Rectifier / Regulator Black by Polaris
4012718 Replaces 4012240
$354.99 USD
29
Screw by Polaris 7517272 Drive Pulley Hardware
Drive Pulley Socket Head Bolt by Polaris
7517272
$8.99 USD
30
A close-up photo of the Fuse, Park, 20 Amp by Polaris—a yellow automotive blade fuse with two metal prongs—an essential component for many OEM Victory Polaris parts in your Victory motorcycle.
Fuse, Park, 20 Amp by Polaris
2434017 Replaced by 4012811
$8.99 USD
31
Black rectangular LED indicator flasher module with oval 10-pin connector on one side.
LED Indicator Flasher Module by Polaris
4013199 Replaces 4012931, 4012181
$139.99 USD
32
Clip, Plastic Dart by Polaris 7670078 OEM Clip
Dart Clip by Polaris
7670078
$3.99 USD
34
Circuit Breaker Boot Cover by Polaris 4010778 Circuit Breaker
Circuit Breaker Boot Cover by Polaris
4010778
$6.99 USD
35
Circuit Breaker Nut by Polaris 7541931 Circuit Breaker
Circuit Breaker Nut by Polaris
7541931
$5.99 USD
35
Circuit Breaker by Polaris 2410332 Circuit Breaker
Circuit Breaker, 40 Amp by Polaris
2410332
$39.99 USD
36
Rivet by Polaris 7081040 Rivet
Rivet by Polaris
7081040
$2.49 USD
37
Plate, Stud, M4 by Polaris 1016624 Stud
Stud Plate M4 by Polaris
1016624
$34.99 USD
38
3D rendering of the Horn by Polaris—a black circular electrical part with metal terminals and a flat metal lever arm featuring two holes—ideal as an OEM Victory motorcycle horn or for use with Polaris parts.
Horn by Polaris
4012448
$64.99 USD
39
Washer, Flat by Polaris 7556477 OEM Washer
Flat Washer by Polaris
7556477
$3.99 USD
40
Tip Over Sensor by Polaris 4011296 OEM Hardware
Tip Over Sensor by Polaris
4011296 Replaced by 4080957
$99.99 USD
41
Black metal screw with flat head and Phillips drive, short cylindrical threaded body.
Screw by Polaris
7519276
$5.99 USD
41
Switch, Side Stand [Apla] by Polaris 4013130 Kickstand Repair
Kickstand Switch by Polaris
4013130
$44.99 USD
41
Black cylindrical kickstand magnet with smooth surface and flat ends.
Kickstand Magnet by Polaris
4013131
$8.99 USD
41
Black rectangular plastic kickstand sensor with mounting hole on the side.
Kickstand Sensor [Intl] by Polaris
1017988 Replaced by 4013130
$44.99 USD

Electrical, Switches And Sensors And Components - 2013 Victory Judge All Options - V13Mb36

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic 2831

Replace your missing, broken, or worn out Polaris OEM Parts on your Victory Motorcycle with genuine OEM Victory Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
