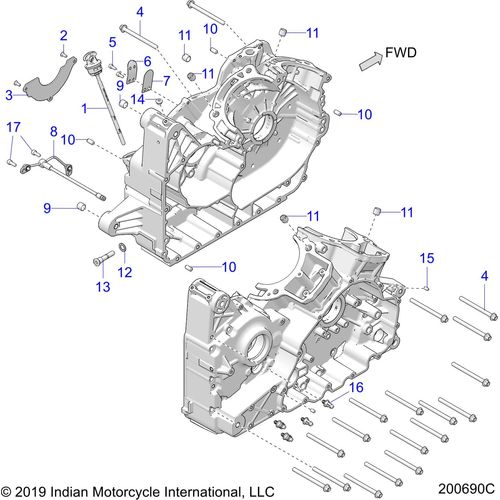

Engine, Crankcase All Options - 2021 Indian Challenger Dark Horse Schematic-23797 OEM Schematic
Engine, Crankcase All Options - 2021 Indian Challenger Dark Horse Schematic-23797 OEM Schematic

Engine, Crankcase All Options

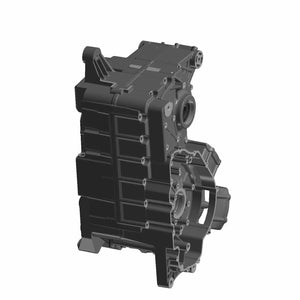

Ref #- Black metal crankcase housing with multiple mounting points and structural ribs for a motorcycle engine.

Crankcase (Replaced by 1209086-650) by Indian

Replace your Asm. Crankcase Complete by Polaris on your Indian motorcycle with genuine OEM Indian...

$4,369.99 USD

SKU: 1205971-650
More Info
Ref #1 Dipstick-Oil Fill M30 by Polaris 5457318 Dipstick

Oil Dipstick by Indian

Maintain Peak Performance: Polaris OEM Engine Oil Dipstick for Indian Motorcycles Part # 5457318 –...

$24.99 USD

SKU: 5457318
More Info

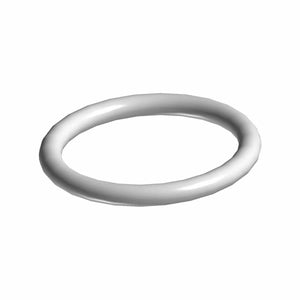

Ref #1 O-Ring-1.11X1.38X.138 by Polaris 5413205 OEM O-Ring

O-Ring 1.11X1.38X.138 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5413205 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 5413205
More Info
Ref #2 Small silver metal screw with a flat head and hexagonal socket drive.

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517255 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7517255
More Info

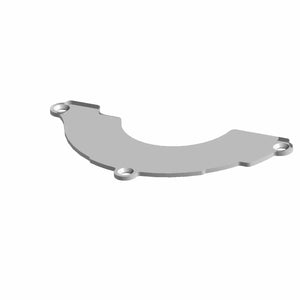

Ref #3 The Shield-Balance Shaft by Polaris is a flat, curved metallic plate with three screw holes and beveled edges, shown against a white background. This genuine OEM part is designed for Indian motorcycle mechanical or industrial use.

Balance Shaft Shield by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5139995 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 5139995
More Info
Ref #4 A silver Hex Flanged Screw, M8X1.25X100 10.9 Zpc by Polaris with a partially threaded shaft, shown upright on a white background. Perfect for Polaris OEM and Indian motorcycle parts replacement needs.

Hex Flanged Screw, M8X1.25X100 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7520915 For Victory & Indian Motorcycles –...

$4.99 USD

SKU: 7520915
More Info

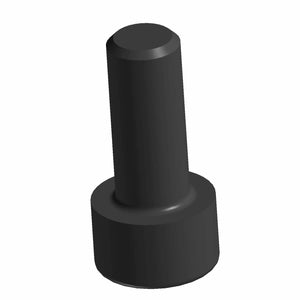

Ref #5 Black cylindrical plastic screw with a wider flat base and a smooth rounded top.

Screw by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517276 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7517276
More Info
Ref #6 An Image of the Genuine Polaris Logo reading 'GENUINE OEM PART' 5131791

Crankcase Bearing Reed Backer Plate by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5131791 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 5131791
More Info
Ref #7 A flat, gray, rounded rectangular Reed Valve Plate by Polaris, featuring two circular holes near one end, shown angled on a white background—an essential OEM part for your Indian motorcycle.

Reed Valve Plate by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5140436 For Victory & Indian Motorcycles –...

$49.99 USD

SKU: 5140436
More Info
Ref #8 Rail-Transmission Feed 1.5Mm by Polaris 1206106 Fuel Hose / Line

Transmission Feed Rail 1.5Mm (Replaced by 1208864) by Indian

Replace your Rail-Transmission Feed 1.5Mm by Polaris on your Indian motorcycle with genuine OEM Indian...

$119.99 USD

SKU: 1206106
More Info

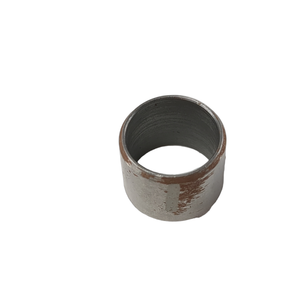

Ref #9 Dowel-Hollow M12 by Polaris 7662129 Dowel Pin

Hollow Dowel Pin, M12 by Polaris

Polaris OEM Part# 7662129 Dowel Pin – Available at buywitchdoctors.com. In the complex assembly of...

$12.99 USD

SKU: 7662129
More Info

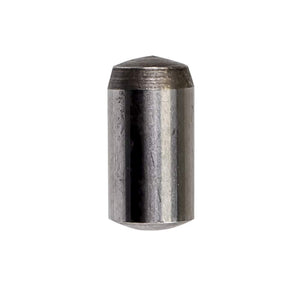

Ref #10 A close-up of a small, cylindrical metal object with a rounded bottom and pointed top, resembling the Solid Dowel Pin, M8X16 by Polaris, used for Victory Indian Polaris engine alignment.

Solid Dowel Pin, M8X16 by Polaris

Polaris OEM Part# 7661127 Dowel Pin – Available at buywitchdoctors.com. In the complex assembly of...

$16.99 USD

SKU: 7661127
More Info
Ref #11 Silver-gray hollow cylindrical metal dowel pin with smooth surfaces and beveled edges.

Dowel Pin-Hollow M14X12Mm by Indian

Polaris OEM Part# 7662265 Dowel Pin – Available at buywitchdoctors.com. In the complex assembly of...

$5.99 USD

SKU: 7662265
More Info
Ref #12 Polaris engine oil drain plug washer

Oil Drain Plug Copper Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 5812232 For Victory & Indian Motorcycles –...

$2.49 USD

SKU: 5812232
More Info
Ref #13 Plug Oil Drain by Polaris 2521920 Oil Drain Plug
products.product.sale

Oil Drain Plug (Replaced by 2522661) by Indian

Replace your Plug Oil Drain by Polaris on your Indian motorcycle with genuine OEM Indian...

$34.99 USD

SKU: 2521920
More Info
Ref #13 O-Ring Drainplug by Polaris 5417503 Oil Drain Plug

Drain Plug O-Ring by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5417503 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 5417503
More Info
Ref #14 Plug-Hex Sckt W/O-Ring M10X1 by Polaris 7052640 OEM O-Ring

Hex Socket Crankcase Plug W/O-Ring M10X1 by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7052640 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7052640
More Info
Ref #15 Pin, Dowel, M6X10 by Polaris 5132835 Dowel Pin

Solid Dowel Pin, M6X10 by Polaris

Polaris OEM Part# 5132835 Dowel Pin – Available at buywitchdoctors.com. In the complex assembly of...

$2.99 USD

SKU: 5132835
More Info
Ref #16 Cable Zip Tie by Polaris 7081496 Horn Mount

Zip Tie by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7081496 For Victory & Indian Motorcycles –...

$5.99 USD

SKU: 7081496
More Info
Ref #17 Screw by Polaris 7517272 Drive Pulley Hardware

Drive Pulley Socket Head Bolt by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7517272 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 7517272
More Info

Engine, Crankcase All Options - 2021 Indian Challenger Dark Horse

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-23797

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
