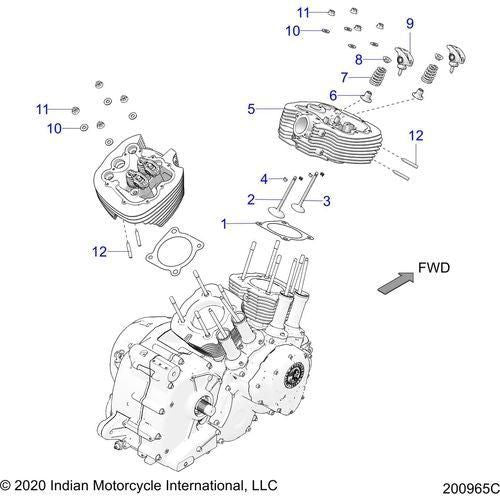

Engine, Cylinder Head Asm - 2022 Indian Springfield Dark Horse Schematic-20185 OEM Schematic
Engine, Cylinder Head Asm - 2022 Indian Springfield Dark Horse Schematic-20185 OEM Schematic

Engine, Cylinder Head Asm

Ref #1 Gasket-Cyl Head 103.2Mm by Polaris 5814541 Head Gasket

Cylinder Head Gasket, 103.2mm by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5814541 For Victory & Indian Motorcycles –...

$64.99 USD

SKU: 5814541
More Info
Ref #2 Black metal intake valve with flat circular base and grooved stem tip.

Intake Valve by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3022469 For Victory & Indian Motorcycles –...

$64.99 USD

SKU: 3022469
More Info
Ref #3 Exhaust Valve by Indian

Exhaust Valve by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3022470 For Victory & Indian Motorcycles –...

$59.99 USD

SKU: 3022470
More Info
Ref #4 Keeper Valve by Polaris 3022476 Valve Spring Retainer

Valve Keeper by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3022476 For Victory & Indian Motorcycles –...

$8.99 USD

SKU: 3022476
More Info
Ref #5 Black front machined motorcycle head cylinder with silver circular metal plate and cooling fins.

Head Cylinder, Front Machined 116 by Indian

Replace your Asm-Cyl Head Fr Mach 116 by Polaris on your Indian motorcycle with genuine...

$1,009.99 USD

SKU: 3023649
More Info

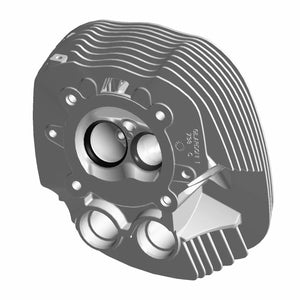

Ref #5 Gray machined aluminum motorcycle head cylinder with cooling fins and two circular valves.

Head Cylinder, Rear Machined 116 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3023648 For Victory & Indian Motorcycles –...

$1,069.99 USD

SKU: 3023648
More Info
Ref #6 Valve Stem Seal Spring Seat by Indian

Valve Stem Seal Spring Seat by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 3022580 For Victory & Indian Motorcycles –...

$38.99 USD

SKU: 3022580
More Info
Ref #7 Valve Spring High Lift by Polaris 7045910 Valve Spring

Valve Spring High Lift by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7045910 For Victory & Indian Motorcycles –...

$7.99 USD

SKU: 7045910
More Info
Ref #8 Retainer Valve Spring by Polaris 5138096 Valve Spring Retainer

Valve Spring Retainer by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 5138096 For Victory & Indian Motorcycles –...

$29.99 USD

SKU: 5138096
More Info
Ref #9 Metal rocker arm with integrated bearing and bolt for Polaris vehicles, gray finish.

Rocker Arm by Polaris

Polaris UTV/ATV OEM Rocker Arms & Tappets - Available at buywitchdoctors.com Product Specifications: Genuine OEM...

$134.99 USD

SKU: 1202169
More Info
Ref #10 Cylinder Head Flat Washer by Polaris 7555986 OEM Washer

Cylinder Head Flat Washer by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7555986 For Victory & Indian Motorcycles –...

$12.99 USD

SKU: 7555986
More Info
Ref #11 Nut by Polaris 7547017 OEM Nut

Nut by Polaris

Restore Peak Performance: Authentic OEM Polaris Part # 7547017 For Victory & Indian Motorcycles –...

$6.99 USD

SKU: 7547017
More Info
Ref #12 Black threaded metal stud bolt with smooth tip, measuring approximately 45mm long.

Stud-M8X1.25X45 Socket 8.8 by Indian

Restore Peak Performance: Authentic OEM Polaris Part # 7520858 For Victory & Indian Motorcycles –...

$8.98 USD

SKU: 7520858
More Info

Engine, Cylinder Head Asm - 2022 Indian Springfield Dark Horse

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-20185

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
