Engine, Piston & Crankshaft All Options - 2015 Indian Chieftain/Roadmaster

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: Schematic-28099

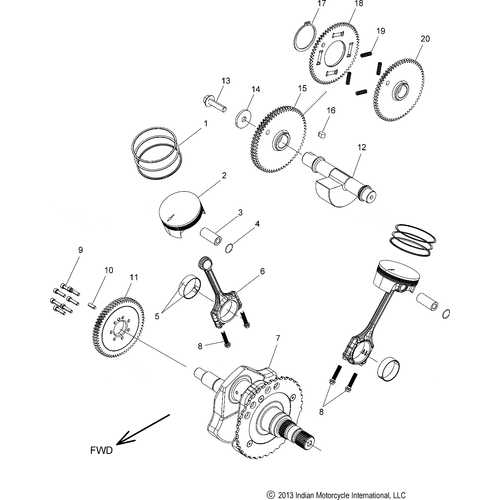

Replace your missing, broken, or worn out Polaris OEM Parts on your Indian Motorcycle with genuine OEM Indian Polaris parts from Witchdoctors using this Diagram.

Check fitment tab for correct fitment.

Check Diagram numbers to confirm usage.

If the product you need is showing as no longer available. Please call us for a possible alternative.
