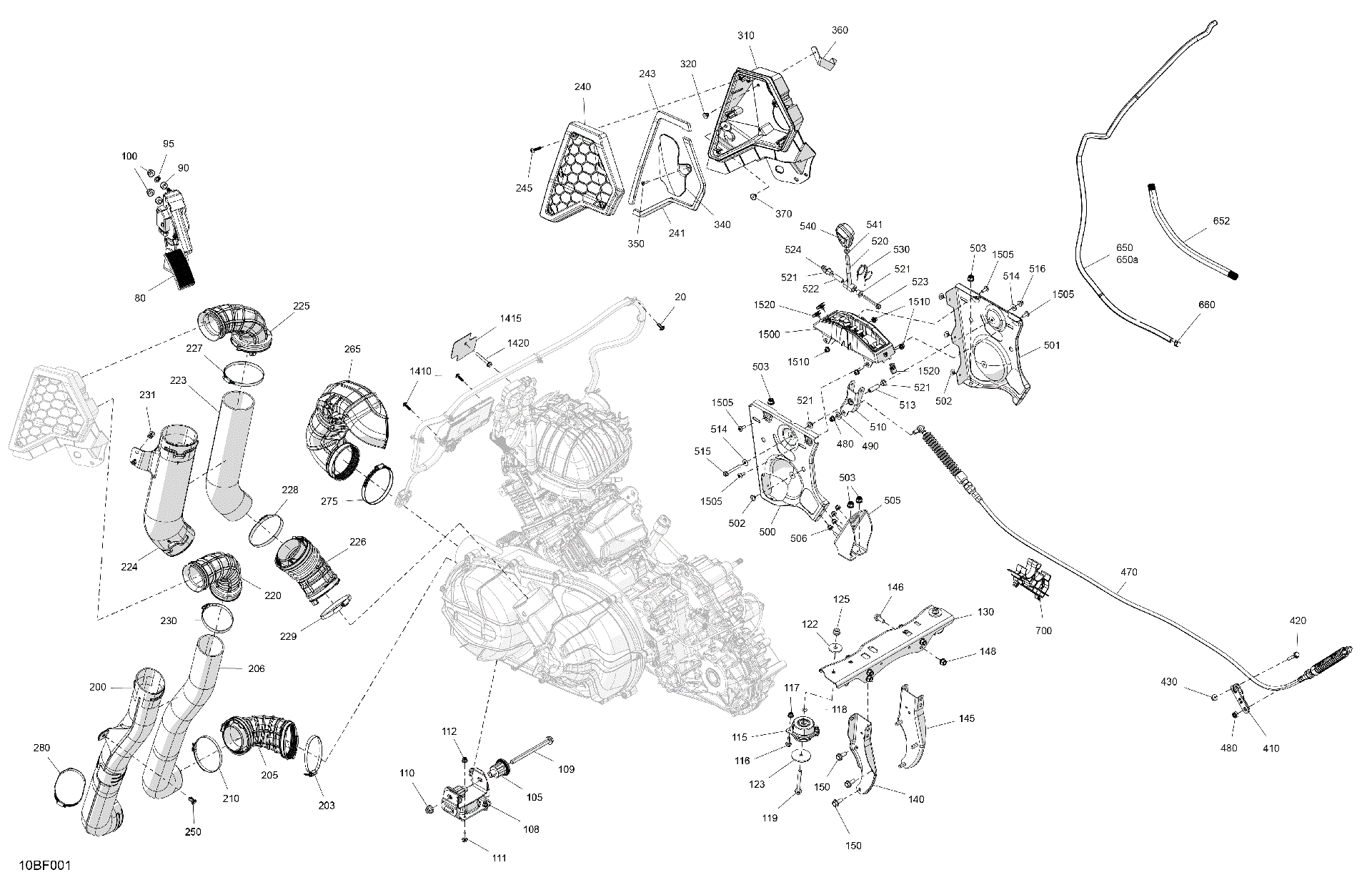

ENGINE - SYSTEM

Prices shown are USD
650a
Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
Item Not Available



20
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000959
Screw PT Type K-50x16 by Can-Am
250000959
$2.19 USD

80
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707003504
Accelerator Pedal by Can-Am
707003504
$299.99 USD

90
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707000848
Bushing by Can-Am
707000848
$1.35 USD

95
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250100031
Push Nut by Can-Am
250100031
$7.49 USD

100
Silver hex flange nut with integrated washer and internal threading.
Hex Flange Nut by Can-Am
233081436
$2.09 USD

105
Vibration Damper by Can-Am
Vibration Damper by Can-Am
707001169
$42.99 USD

108
Vibration Damper by Can-Am 707003563 OEM Hardware 707003061 Off Road Express Peach St
Vibration Damper by Can-Am
707003563
$154.99 USD

109
Hex Flange Screw M10x135 by Can-Am
Hex Flange Screw M10x135 by Can-Am
230603546
$7.59 USD

110
Silver metal hex flange elastic nut M10 with integrated locking ring.
Hex Flange Elastic Nut M10 by Can-Am
233201436
$2.19 USD

111
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662044
Hex Flange Screw M6x20 by Can-Am
207662044
$2.09 USD

112
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261414
Hex Flange Elastic Nut M6x1.0 by Can-Am
233261414
$1.49 USD

115
Rubber Mount by Can-Am
Rubber Mount by Can-Am
707002590
$58.49 USD

116
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662044
Hex Flange Screw M6x20 by Can-Am
207662044
$2.09 USD

117
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261414
Hex Flange Elastic Nut M6x1.0 by Can-Am
233261414
$1.49 USD

118
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293300215
O-Ring by Can-Am
293300215
$0.90 USD

119
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207686544
Hex Flange Screw M8x65 by Can-Am
207686544
$13.49 USD

122
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250200158
Flat Washer M8 by Can-Am
250200158
$2.19 USD

123
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250200180
Flat Washer M8 by Can-Am
250200180
$2.39 USD

125
Silver hex flange nut with integrated washer and internal threading.
Hex Flange Nut by Can-Am
233081436
$2.09 USD

130
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002290
Rear Link Bracket by Can-Am
707002290
$30.99 USD

140
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707003338
Rear Engine Support (Left) by Can-Am
707003338
$15.49 USD

145
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707003340
Rear Engine Support (Right) by Can-Am
707003340
$18.99 USD

146
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207582046
Hex Flange Screw M8x20 by Can-Am
207582046
$1.49 USD

148
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281416
Hex Elastic Flange Nut M8 by Can-Am
233281416
$1.49 USD

150
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207582046
Hex Flange Screw M8x20 by Can-Am
207582046
$1.49 USD

200
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600350
CVT Cooling Duct by Can-Am
706600350
$58.99 USD

203
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052924
Airbox Norma Gear Clamp by Can-Am
514052924
$14.49 USD

205
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600349
CVT Duct Adapter by Can-Am
706600349
$24.49 USD

206
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600364
Acoustic Foam Insulation by Can-Am
706600364
$77.99 USD

210
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052924
Airbox Norma Gear Clamp by Can-Am
514052924
$14.49 USD

220
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600352
CVT Duct Adapter by Can-Am
706600352
$42.49 USD

223
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600363
Acoustic Foam Insulation by Can-Am
706600363
$77.99 USD

224
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600351
CVT Cooling Duct by Can-Am
706600351
$58.99 USD

225
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600353
CVT Duct Adapter by Can-Am
706600353
$42.49 USD

226
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600386
CVT Duct Adapter by Can-Am
706600386
$36.99 USD

227
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052924
Airbox Norma Gear Clamp by Can-Am
514052924
$14.49 USD

228
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052924
Airbox Norma Gear Clamp by Can-Am
514052924
$14.49 USD

229
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052924
Airbox Norma Gear Clamp by Can-Am
514052924
$14.49 USD

230
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052924
Airbox Norma Gear Clamp by Can-Am
514052924
$14.49 USD

231
Black plastic rivet with a flat circular head and tapered split shaft for secure fastening.
Tuflok Plastic Rivet by Can-Am
293150230
$2.68 USD

240
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600417
CVT Filter by Can-Am
706600417
$44.99 USD

241
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600191
Engine Gasket by Can-Am
706600191
$41.99 USD

243
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600231
Engine Gasket by Can-Am
706600231
$12.16 USD

245
Hex. Screw Pt K60 X 25 by Can-Am 250000980 OEM Hardware 250000980 Off Road Express Peach St
Hex Screw Pt K60x25 by Can-Am
250000980
$2.19 USD

250
Black plastic rivet with a flat circular head and tapered split shaft for secure fastening.
Tuflok Plastic Rivet by Can-Am
293150230
$2.68 USD

265
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600192
CVT Cooling Duct by Can-Am
706600192
$33.99 USD

275
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052983
Airbox Norma Gear Clamp by Can-Am
514052983
$15.99 USD

280
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 514052924
Airbox Norma Gear Clamp by Can-Am
514052924
$14.49 USD

310
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600360
Air Intake Box by Can-Am
706600360
$43.99 USD

320
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293150321
Pop Rivet 3/16 x 550 by Can-Am
293150321 Replaces 293150292
$1.09 USD

340
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600286
Baffle by Can-Am
706600286
$26.49 USD

350
Black Torx screw with a wide flat head and threaded shaft, size K50 x 16.
Torx Screw K50x16 by Can-Am
250000720
$1.69 USD

360
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706600237
Support by Can-Am
706600237
$6.49 USD

370
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 293150321
Pop Rivet 3/16 x 550 by Can-Am
293150321 Replaces 293150292
$1.09 USD

410
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707000911
Gear Shift Lever by Can-Am
707000911
$20.49 USD

420
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207663544
Hex Flange Screw M6x35 by Can-Am
207663544
$0.92 USD

430
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261414
Hex Flange Elastic Nut M6x1.0 by Can-Am
233261414
$1.49 USD

470
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002270
Gear Shift Cable by Can-Am
707002270
$71.99 USD

480
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232581414
Hex Elastic Stop Nut M8 by Can-Am
232581414
$0.58 USD

490
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 234001410
Flat Washer 10mm by Can-Am
234001410
$1.29 USD

500
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002099
Bracket (Left) by Can-Am
707002099
$24.99 USD

501
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 707002100
Bracket (Right) by Can-Am
707002100
$24.99 USD

502

Item No Longer Available



503
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281416
Hex Elastic Flange Nut M8 by Can-Am
233281416
$1.49 USD

505

Item No Longer Available



506
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261414
Hex Flange Elastic Nut M6x1.0 by Can-Am
233261414
$1.49 USD

510

Item No Longer Available



513

Item No Longer Available



514

Item No Longer Available



515

Item No Longer Available



516
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261414
Hex Flange Elastic Nut M6x1.0 by Can-Am
233261414
$1.49 USD

520

Item No Longer Available



521

Item No Longer Available



522

Item No Longer Available



523

Item No Longer Available



524
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233261414
Hex Flange Elastic Nut M6x1.0 by Can-Am
233261414
$1.49 USD

530

Item No Longer Available



540

Item No Longer Available



541

Item No Longer Available



650

Item No Longer Available



652

Item No Longer Available



660

Item No Longer Available



700

Item No Longer Available



1410

Item No Longer Available



1415

Item No Longer Available



1420

Item No Longer Available



1500

Item No Longer Available



1505

Item No Longer Available



1510

Item No Longer Available



1520

Item No Longer Available




ENGINE - SYSTEM - 2026 CAN AM COMMANDER MAX 1000R EFI DPS - COMPASS GREEN - 60" WIDTH - (2)

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: CAN-AM-UTV-SCHEM-806

Can-Am UTV/ATV OEM Parts Schematic: The Ultimate Precision Repair Tool

Schematic Group: Genuine OEM CAN-AM - ENGINE - SYSTEM - 2026 CAN AM COMMANDER MAX 1000R EFI DPS - COMPASS GREEN - 60" WIDTH

Whether you are deep-cleaning a Can-Am Outlander after a mud run or performing a precision engine rebuild on a Maverick RR X MR, accuracy is everything. Using a Can-Am UTV/ATV OEM Parts Schematic from Witchdoctors.com is the only way to ensure every seal, bolt, and bearing is an exact factory match.

Our high-resolution diagrams act as your digital blueprint, showing you the precise location and assembly order for every component. By choosing Genuine Original Equipment Manufacturer (OEM) parts, you guarantee that your Can-Am maintains the same engineering standards, safety ratings, and resale value it had the day it left the assembly line.

Extensive Can-Am Model Fitment

We host a massive database of parts diagrams covering the latest 2026 models back to 2015. Browse our schematics for these popular Can Am families:

Popular UTV Models:

Popular ATV Models:

Important: ⚠️ Always check your owner’s manual or the fitment tab on witchdoctors.com to make sure this part fits your specific year, make, and model before ordering.

Why Trust Genuine Can-Am OEM Parts?

While aftermarket parts might save a few dollars upfront, they rarely meet the strict tolerances required for high-performance off-roading. Using our Can-Am UTV/ATV OEM Parts Schematic ensures:

  • Perfect Compatibility: Every part is designed specifically for your frame and engine configuration. No "universal" fitment headaches.
  • Factory-Grade Materials: OEM components are built to handle the heat, vibration, and torque Can-Am vehicles are known for.
  • Visual Confidence: Our schematics prevent the "where does this washer go?" mystery by providing an exploded view of the entire assembly.
  • Maximum Performance: Keep your machine running like new by using the same parts Can-Am engineers used during development.

How to Use Our Parts Finder

Finding your part is simple. Select your year and model, then browse the specific system you need—such as the Cylinder Head Cover, CVT Assembly, or Front Suspension. Once you locate the item on the visual diagram, the corresponding part number and price will be listed for immediate checkout.

Frequently Asked Questions (FAQs)

What is a Can-Am OEM Parts Schematic?

It is an "exploded view" diagram of your vehicle's specific systems (like the engine, suspension, or brakes). It allows you to identify every individual part by its official OEM part number.

How do I find my specific Can-Am part number?

Simply select your year and model on Witchdoctors.com. Browse the relevant system schematic, find the item on the drawing, and click the corresponding number to see the part name and price.

Why should I buy from Witchdoctors.com?

We provide fast shipping, competitive pricing, and a user-friendly interface that makes finding complex Can-Am parts easy for both DIY riders and professional mechanics.

Restore Your Ride Today

Don't let a missing clip or a worn-out belt end your weekend. Trust the visual accuracy of our Can-Am UTV/ATV OEM Parts Schematics to get the job done right the first time.

Shop Can-Am OEM Parts Schematics Now

Are You Looking to Find Great Places & Adventurous Trails to Ride Your Can-AM UTV, Side by Side or ATV? Check out these highly recommended places:

  1. Mulberry Mountain in Arkansas
  2. WindRock Park in Tennessee
  3. Look Here in Ohio

General Safety Warning & Installation Requirements

Your safety is our top priority. Whether you are maintaining a Victory® or Indian® Motorcycle, or servicing a UTV, ATV, or Side-by-Side, proper installation is vital to the performance and safety of your vehicle.

Important:
Warning: Failure to follow manufacturer-specified installation procedures and safety requirements can result in mechanical failure, loss of vehicle control, serious injury, or death.

Important Fitment Disclosure

At Witchdoctors, we want to ensure you get back on the road or trail as quickly as possible. Correct fitment is the most critical step in purchasing parts for your Victory® or Indian® Motorcycle. Also for your Polaris®, CFMoto®, Arctic Cat®, Yamaha®, Honda®, Can-Am®, Kawasaki® UTV and ATV.

Verification Required: While we strive for 100% accuracy, vehicle manufacturers often make mid-year production changes. Always verify your specific year, make, and model before finalizing your order.
Read More

Shipping

Qualifying Retail orders $159.99 or more will receive free ground shipping. Free Shipping Terms and conditions.

All orders over $500 will require a signature.

Please see International Shipping page for orders shipping outside the US.

See our full Shipping Policy page for further details.

Product Availability

We show real time product availability. These products normally ship the same business day but may ship from one of our warehouses across the country. If an item requires additional processing time you will be notified.

Returns

If your order arrives and it is not right, we will we'll fix it. We promise!

Doesn't fit or just not happy with it? You can return any new, unopened, unused or unaltered item within 30 business days of delivery receipt of your item. We will issue a refund to your original payment method.

See our full Return Policy for all of the pertinent details.
