Grommet Routing 5417945 by Polaris

Price
$24.99 USD
Normally Ships in 5-7 Business Days

Inventory:

Loading..
SKU: 5417945
In stock and ready for shipping

SKU: 5417945

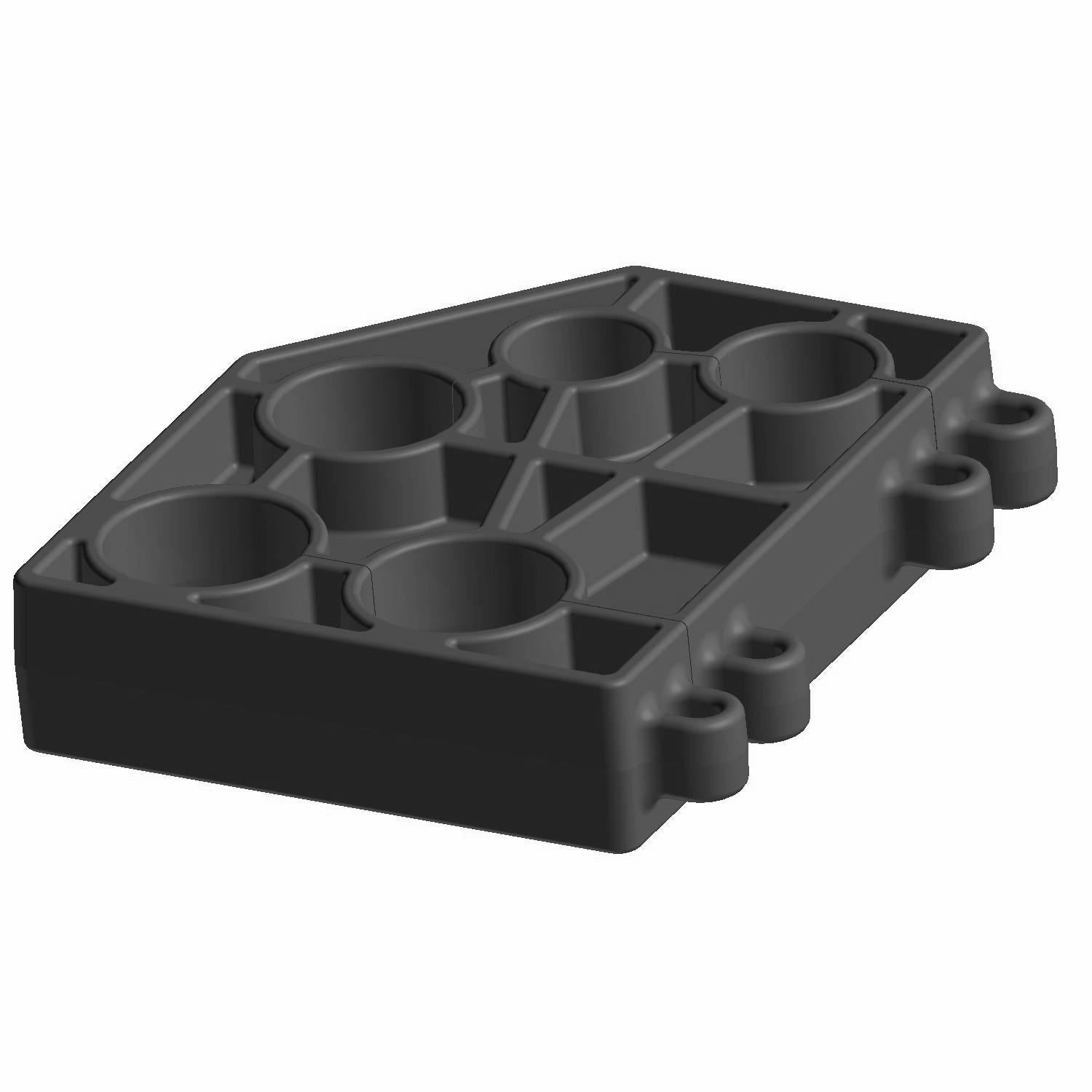

Genuine Polaris Grommet Routing — OEM Part #5417945

Small parts hold big things together. The genuine Polaris Grommet Routing is the exact factory fastener specified for your Ranger 1000 or Ranger XP, with the correct size, thread, length, grade and finish, so it fits right and holds torque.

OEM hardware is engineered for a specific location and load. The wrong grade, length or thread can strip threads, loosen under vibration or let critical parts shift. This part is confirmed for 26 Polaris models from 2022 to 2026. See the full fitment list below.

Grommet Routing at a Glance

  • OEM part number: 5417945
  • Brand: Polaris (genuine factory part)
  • Part type: HVAC System
  • Fits: Ranger utility side-by-side models, 2022–2026
  • Condition: New

Polaris Models and Years This Grommet Routing Fits

Genuine Polaris part #5417945 fits the models and years below. To be certain, match the part number to the factory parts diagram for your machine or contact us with your VIN before ordering.

Polaris Ranger utility side-by-side Fitment

Model Model Years
Polaris Ranger 1000 XP Crew Northstar 2024
Polaris Ranger 1000 XP Crew Northstar Premium 2025–2026
Polaris Ranger 1000 XP Crew Northstar Premium Tip Out Windshield 2025
Polaris Ranger 1000 XP Crew Northstar Texas Edition 2025–2026
Polaris Ranger 1000 XP Crew Northstar Ultimate 2025–2026
Polaris Ranger 1000 XP Crew Northstar Ultimate Trail Boss 2024–2026
Polaris Ranger 1000 XP Northstar 2024, 2026
Polaris Ranger 1000 XP Northstar Premium 2025
Polaris Ranger 1000 XP Northstar Premium Tip Out Windshield 2025
Polaris Ranger 1000 XP Northstar Ultimate 2024–2026
Polaris Ranger 1000 XP Northstar Ultimate Crew 2024
Polaris Ranger 1000 XP Northstar Ultimate Trail Boss 2024–2026
Polaris Ranger Crew XP 1000 Northstar 2022–2023
Polaris Ranger Crew XP 1000 Northstar Edition 2022–2023
Polaris Ranger Crew XP 1000 Northstar Edition Trail Boss 2022–2023
Polaris Ranger Crew XP 1000 Northstar Edition Ultimate 2022–2023
Polaris Ranger Crew XP 1000 Northstar Ultimate 2022–2023
Polaris Ranger Crew XP 1000 Northstar Ultimate Big Game 2022
Polaris Ranger Crew XP 1000 Northstar Ultimate Trail Boss 2023
Polaris Ranger Crew XP 1000 Northstar Ultimate Trail Boss Evap 2022
Polaris Ranger XP 1000 Northstar Edition Premium 2023
Polaris Ranger XP 1000 Northstar Edition Trail Boss 2022–2023
Polaris Ranger XP 1000 Northstar Edition Ultimate 2022–2023
Polaris Ranger XP 1000 Northstar Evap 2022–2023
Polaris Ranger XP 1000 Northstar Ultimate Evap 2022–2023
Polaris Ranger XP 1000 Northstar Ultimate Trail Boss 2022–2023

Why Choose a Genuine Polaris OEM Grommet Routing?

  • Exact factory size, thread pitch and length
  • Correct strength grade for its location
  • Factory corrosion-resistant finish
  • No guessing at sizes or grades
  • Sold by Witchdoctors, with factory part numbers and parts diagrams for every Polaris model we support

Features and Materials

Key Features

  • Genuine Polaris OEM hardware, part #5417945
  • Matches the original thread, length, head style and grade
  • Plated or coated to resist corrosion (where applicable)
  • Used across several Polaris assemblies, as listed in the fitment table
  • Ideal for replacing lost, stripped or one-time-use fasteners

Materials and Construction

Polaris fasteners are heat-treated alloy or carbon steel, or stainless steel where corrosion resistance matters most, with zinc or similar plating. Washers, clips and bushings are steel, spring steel, nylon or rubber depending on the job.

Common Reasons Riders Replace This Part

  • Replacing hardware lost on the trail
  • Replacing stretched, rusted or stripped fasteners
  • Rebuilds that call for new one-time-use hardware
  • Keeping spares for common repairs

Signs Your Grommet Routing Needs Replacing

  • Rounded heads or damaged threads
  • Rust that weakens the fastener
  • Missing hardware that leaves a part loose
  • Bolts that will not hold torque
  • Self-locking nuts or one-time bolts that were already reused

Installation Tips

  1. Check the Polaris parts diagram for the location and quantity you need.
  2. Clean the threads in the mating part, chasing damaged threads with a tap if needed.
  3. Apply thread locker or anti-seize only where the service manual specifies.
  4. Start the fastener by hand to avoid cross-threading.
  5. Tighten to the factory torque spec with a calibrated torque wrench.

Not sure whether to tackle it yourself? Read when to seek professional help or DIY before you start.

Polaris Parts Diagrams for Your Machine

Find part #5417945 and every part installed with it in the factory Polaris parts diagrams for your model:

Related OEM Parts for the Same Machines

Doing the job right? These genuine Polaris parts fit the same models and are often replaced at the same time:

Recommended Accessories and Maintenance Supplies

Pair your Grommet Routing with these parts and supplies:

Helpful Guides from the Witchdoctors Blog

Frequently Asked Questions

What is the OEM part number for this Polaris Grommet Routing?

The genuine Polaris part number is 5417945. Use it to match this part to your factory parts diagram.

Which Polaris models does part #5417945 fit?

It fits 26 Polaris Ranger models from 2022 to 2026. The complete list is in the fitment tables above.

Is this a genuine Polaris part?

Yes. This is a genuine Polaris OEM part, the same part number used at the factory, not an aftermarket copy.

Can I use a hardware-store bolt instead?

It may look the same, but grade, pitch, length and finish often differ. For suspension, brakes or engine parts, use the specified OEM fastener.

Is this sold individually?

This listing is for the part number shown. Check the parts diagram for the quantity at each location.

Should I reuse self-locking nuts?

No. Self-locking and torque-to-yield fasteners are designed for one use.

Order Your Genuine Polaris Grommet Routing Today

Get your Ranger 1000 or Ranger XP back to factory condition. Add the genuine Polaris Grommet Routing (part #5417945) to your cart today, and order the related parts above at the same time so you can finish the job in one go.
