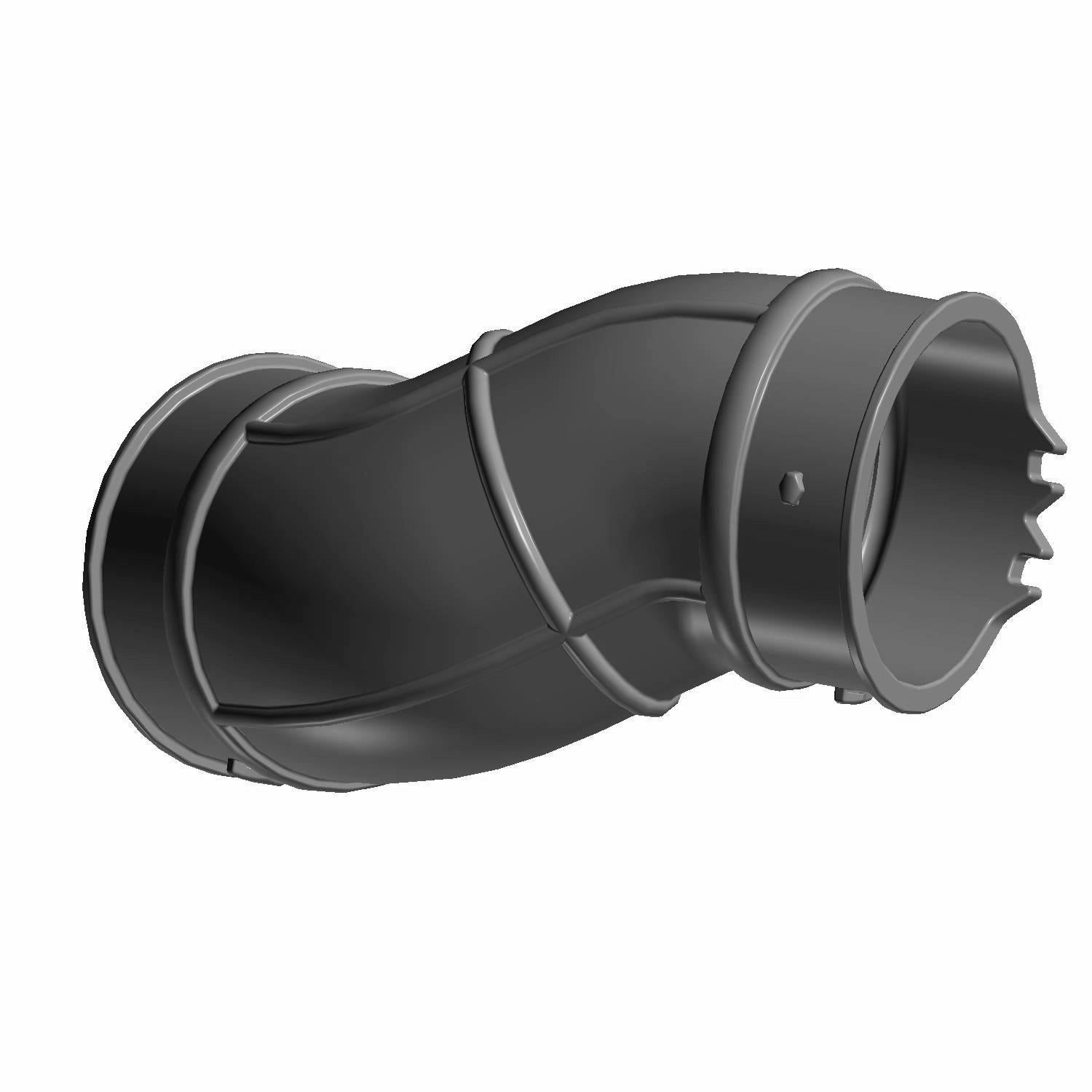

Joint Hose 5416135 by Polaris

Price
$54.99 USD
Normally Ships in 5-7 Business Days

Inventory:

Loading..
SKU: 5416135
In stock and ready for shipping

SKU: 5416135

Genuine Polaris Joint Hose — OEM Part #5416135

Get crisp engagement and smooth acceleration back with a genuine Polaris Joint Hose. Built for the Ranger models, it matches the original PVT clutch specification, so belt alignment, shift points and cooling airflow stay where they should.

The drive and driven clutches, belt, covers and cooling ducts work as one system. Worn or mismatched parts cause belt slip, harsh engagement, overheating and early belt failure. This part is confirmed for 150 Polaris models from 2018 to 2026. See the full fitment list below.

Joint Hose at a Glance

  • OEM part number: 5416135
  • Brand: Polaris (genuine factory part)
  • Part type: CVT Air Components
  • Fits: Ranger utility side-by-side models, 2018–2026
  • Condition: New

Polaris Models and Years This Joint Hose Fits

Genuine Polaris part #5416135 fits the models and years below. To be certain, match the part number to the factory parts diagram for your machine or contact us with your VIN before ordering.

This part is shared across 150 Polaris model variants, so the table below groups them by model family. Your exact trim is listed in the parts diagrams linked further down.

Polaris Ranger utility side-by-side Fitment

Model Family Model Years Trims
Polaris Ranger 2018–2020 3
Polaris Ranger 902 2019–2022 1
Polaris Ranger 902D 2020–2022 3
Polaris Ranger 1000 2018–2026 32
Polaris Ranger Diesel 2020, 2022–2026 10
Polaris Ranger FC 2020 2
Polaris Ranger HD 2020 1
Polaris Ranger Intl 2018 1
Polaris Ranger Is 2020 1
Polaris Ranger MD 2024–2025 1
Polaris Ranger Northstar 2018–2020 12
Polaris Ranger RC 2020 2
Polaris Ranger SP 2026 1
Polaris Ranger Texas 2020 1
Polaris Ranger Tx 2020 1
Polaris Ranger Winter 2020 2
Polaris Ranger XP 2018–2026 76

Why Choose a Genuine Polaris OEM Joint Hose?

  • Factory calibration for engagement, shift-out and backshift
  • Correct belt alignment and deflection
  • Keeps clutch cooling and sealing at factory standard
  • Helps your drive belt last longer
  • Sold by Witchdoctors, with factory part numbers and parts diagrams for every Polaris model we support

Features and Materials

Key Features

  • Genuine Polaris OEM clutch part, part #5416135
  • Built to Polaris's original clutch specifications
  • Precision-machined surfaces where applicable
  • Designed for the listed Polaris PVT clutch systems
  • Works with OEM belts, covers, seals and ducts

Materials and Construction

Polaris clutch parts use precision-machined aluminum sheaves and housings, hardened steel shafts and rollers, wear-resistant bushings, and heat-stable plastic or composite covers and ducts sealed against water and dust.

Common Reasons Riders Replace This Part

  • Fixing belt slip, jerky engagement or poor top speed
  • Replacing worn sheaves, rollers, springs or bushings
  • Repairing covers, seals and ducts after water intrusion
  • Routine clutch service and belt replacement

Signs Your Joint Hose Needs Replacing

  • Belt slipping, squealing or a burning smell
  • Jerky, harsh or delayed engagement
  • Loss of top speed or acceleration
  • Glazed belt or frequent belt failures
  • Water or debris inside the clutch cover

Installation Tips

  1. Remove the clutch cover and clean out belt dust before taking anything apart.
  2. Use the correct Polaris clutch tools; clutches are under spring tension.
  3. Inspect sheave faces, rollers, bushings and the belt while you are in there.
  4. Assemble to factory torque specs and check belt deflection and alignment.
  5. Replace cover seals and follow the belt break-in procedure.

Not sure whether to tackle it yourself? Read when to seek professional help or DIY before you start.

Polaris Parts Diagrams for Your Machine

Find part #5416135 and every part installed with it in the factory Polaris parts diagrams for your model:

Related OEM Parts for the Same Machines

Doing the job right? These genuine Polaris parts fit the same models and are often replaced at the same time:

Recommended Accessories and Maintenance Supplies

Pair your Joint Hose with these parts and supplies:

Helpful Guides from the Witchdoctors Blog

Frequently Asked Questions

What is the OEM part number for this Polaris Joint Hose?

The genuine Polaris part number is 5416135. Use it to match this part to your factory parts diagram.

Which Polaris models does part #5416135 fit?

It fits 150 Polaris Ranger models from 2018 to 2026. The complete list is in the fitment tables above.

Is this a genuine Polaris part?

Yes. This is a genuine Polaris OEM part, the same part number used at the factory, not an aftermarket copy.

Should I replace the belt at the same time?

If the belt is glazed, cracked or worn to minimum width, replace it with the clutch parts.

What causes belts to burn up?

Riding in high range at low speed, heavy loads, water in the clutch housing and worn clutch parts. Use low range for slow, heavy work.

Do I need special tools?

Yes. Most Polaris clutches need specific holding and puller tools to service safely.

Order Your Genuine Polaris Joint Hose Today

Ride with confidence on parts built for your machine. Order the genuine Polaris Joint Hose, OEM part #5416135, from Witchdoctors today and keep your Ranger models running the way Polaris designed it.
