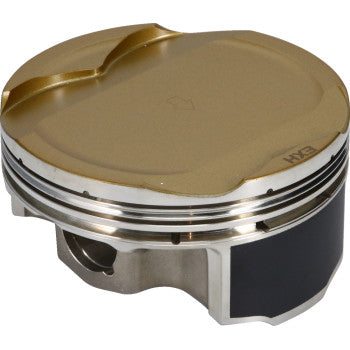

Building a Kawasaki Teryx KRX 1000 for big boost or serious horsepower? The stock pistons are the weak link. The JE Pistons 92.0 mm 11.5:1 Piston Kit for Kawasaki Teryx KRX 1000 is a forged JE piston kit built to handle the heat and cylinder pressure of turbo and high-output builds.
JE Pistons is a US maker of forged pistons trusted in professional racing. Pair it with fresh parts from our engine gaskets and seals collection.
Why Choose the JE Pistons 92.0 mm 11.5:1 Piston Kit for Kawasaki Teryx KRX 1000
Key Features
- Aligned Grain Flow forging directs the aluminum grain around critical areas for strength
- Lateral gas ports push the top ring against the cylinder for a better seal, which is critical with boost
- Ultra-thick ring lands keep the rings stable in turbo and high-horsepower engines
- Thermal barrier ceramic crown coating cuts heat transfer into the piston
- Moly-based dry film skirt coating reduces friction and wear
- Accumulator groove traps gases below the top ring to protect ring seal
- Two oil channels feed the pin bore for better wrist pin lubrication
- Upgraded 9310 wrist pins are stronger and thicker for added load
- Complete kit: all pistons, rings, wrist pins and wire locks under one part number
Great For
- Turbocharged and supercharged builds
- High-horsepower naturally aspirated engines
- Race and big-power trail machines
Specifications
-
Brand: JE Pistons
-
Part number: 379449
-
Bore: 92.0 mm
-
Compression ratio: 11.5:1
-
Construction: Forged aluminum with Aligned Grain Flow
-
Wrist pin: 9310 steel (upgraded)
-
Made in: USA
-
Price: $774.99
Fitment
Per our fitment data, this kit fits:
- Kawasaki Teryx KRX 1000 (2020–2022)
Check your current bore size before ordering. An oversize bore usually means the cylinder must be bored or replaced.
How to Choose Compression
-
Lower compression: Better for turbo or supercharged builds and pump fuel. Easier on parts.
-
Stock-like compression: A good fit for a rebuild or mild build on pump gas.
-
Higher compression: More power on naturally aspirated engines, but it usually needs higher-octane or race fuel and a matching tune.
Not sure? Tell us your fuel, mods and how you ride, and we’ll help you pick.
Before You Order
- Measure your cylinder bore or have a machine shop check it.
- Plan for a top-end gasket kit; gaskets are not listed as included.
- Check whether your cams, fuel system and tune match the new compression.
- Have your service manual or JE spec sheet ready for clearances.
How to Install
- Have a machine shop bore or hone the cylinder to the piston-to-wall clearance on the JE spec sheet.
- Check ring end gaps and file the rings if needed.
- Install the rings, pin and locks; make sure every lock is fully seated.
- Reassemble with new gaskets and torque everything to spec.
- Follow a careful break-in, then change the oil and filter.
Engine building takes precision tools. If you’re not set up for it, have a qualified engine builder do the work.
Care Tips
- Use quality oil and change it on schedule.
- Keep your air filter clean; dirt wears pistons and rings fast.
- Watch for blow-by, smoke or lost compression, and check it early.
Other JE Kits for the Kawasaki Teryx KRX 1000
More JE Piston Kits
Shop More Engine Parts
Helpful Guides From the Witchdoctors Blog
Frequently Asked Questions
What comes in the kit?
All pistons, rings, wrist pins and wire locks for the engine, under one part number.
Are gaskets included?
Gaskets are not listed as included. Plan on a top-end gasket kit.
Will I need to bore my cylinder?
It depends on your current bore and the size of this kit. A machine shop can measure it and tell you.
Does higher compression need race fuel?
Often, yes. Higher compression usually needs higher-octane fuel and a tune. Ask us before you order.
Can I return it?
Unused items in original packaging can usually be returned. Contact our customer service team, and we’ll help.
Where to Ride
Put that fresh top end to work at one of these riding areas:
Order the JE Pistons 92.0 mm 11.5:1 Piston Kit for Kawasaki Teryx KRX 1000 Today
Build it strong. Add it to your cart, and Witchdoctors will get it moving. Questions about fit? Contact our team, and we’ll help.
