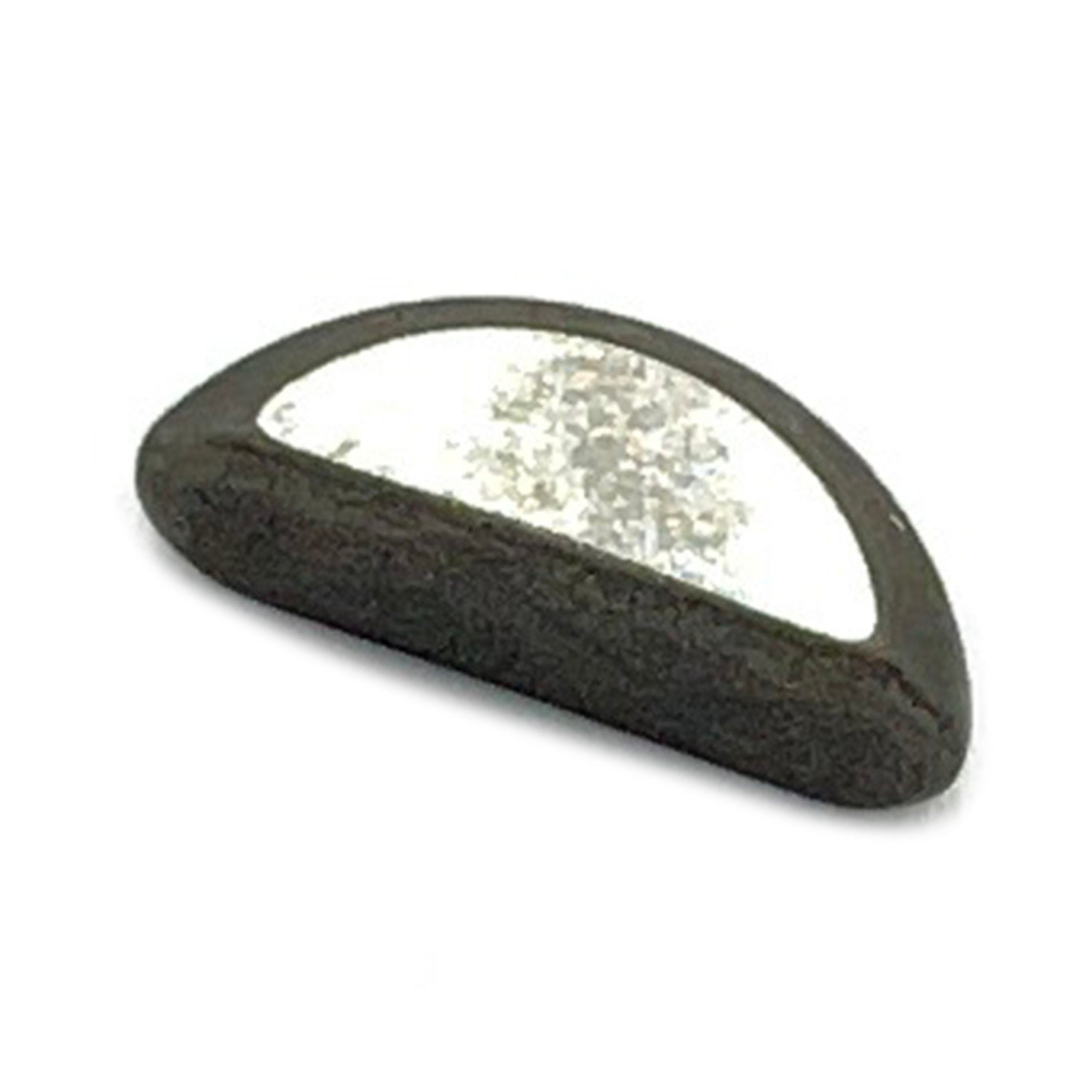

Genuine Polaris Woodruff Key — OEM Part #3240168
When you are inside the engine, there is no room for guesswork. The genuine Polaris Woodruff Key is built to the exact tolerances of the original part in your Polaris ATV or side-by-side, so it fits the mating parts correctly and keeps the engine running the way it was designed.
Engine internals and castings work under heat, pressure and constant vibration. A part that is even slightly off can cause oil leaks, low compression, noise or major engine damage. This part is confirmed for 45 Polaris models from 2003 to 2014. See the full fitment list below.
Woodruff Key at a Glance
-
OEM part number: 3240168
-
Brand: Polaris (genuine factory part)
-
Part type: Crankshaft
-
Fits: ATP ATV, Hawkeye ATV, Magnum ATV, Outlaw ATV, Predator ATV, Ranger utility side-by-side, Scrambler ATV, Sportsman ATV, Trail Blazer ATV and Trail Boss ATV models, 2003–2014
-
Condition: New
Polaris Models and Years This Woodruff Key Fits
Genuine Polaris part #3240168 fits the models and years below. To be certain, match the part number to the factory parts diagram for your machine or contact us with your VIN before ordering.
This part is shared across 45 Polaris model variants, so the table below groups them by model family. Your exact trim is listed in the parts diagrams linked further down.
Polaris ATP ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris ATP 330 |
2004–2005 |
1 |
| Polaris ATP 500 |
2004–2005 |
1 |
Polaris Hawkeye ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Hawkeye 400 |
2011–2013 |
2 |
Polaris Magnum ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Magnum 330 |
2003–2006 |
2 |
Polaris Outlaw ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Outlaw 500 |
2006–2007 |
1 |
Polaris Predator ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Predator |
2003–2004, 2007 |
1 |
| Polaris Predator 500 |
2005–2006 |
1 |
Polaris Ranger utility side-by-side Fitment
| Model Family |
Model Years |
Trims |
| Polaris Ranger 4x4 |
2007 |
1 |
| Polaris Ranger 400 |
2010–2014 |
5 |
| Polaris Ranger 500 |
2006–2007 |
2 |
Polaris Scrambler ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Scrambler 2x4 |
2008–2009 |
1 |
| Polaris Scrambler 500 |
2003–2012 |
2 |
Polaris Sportsman ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Sportsman 400 |
2008–2014 |
2 |
| Polaris Sportsman 450 |
2006–2007 |
1 |
| Polaris Sportsman 500 |
2003–2013 |
7 |
| Polaris Sportsman 550 |
2010 |
1 |
| Polaris Sportsman Forest |
2011–2012 |
3 |
| Polaris Sportsman Touring |
2008–2013 |
3 |
| Polaris Sportsman X2 |
2006–2010 |
3 |
| Polaris Sportsman XP |
2009–2010 |
2 |
Polaris Trail Blazer ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Trail Blazer 330 |
2008–2013 |
1 |
Polaris Trail Boss ATV Fitment
| Model Family |
Model Years |
Trims |
| Polaris Trail Boss 330 |
2003–2013 |
2 |
Why Choose a Genuine Polaris OEM Woodruff Key?
- Factory tolerances for correct clearances and fit
- Designed to work with the other OEM parts in the engine
- Helps protect any applicable factory warranty coverage
- Lowers the risk of a repeat teardown from a poor-fitting part
- Sold by Witchdoctors, with factory part numbers and parts diagrams for every Polaris model we support
Features and Materials
Key Features
- Genuine Polaris OEM engine part, part #3240168
- Machined to Polaris's original specifications
- Matches factory sealing surfaces and mounting points
- Made for the heat and loads of the listed engines
- Pairs with the gaskets and seals on the same parts diagram
Materials and Construction
Polaris engine parts use materials chosen for their location: aluminum alloy castings for cases, cylinders and covers; hardened, heat-treated steel for shafts, gears and valvetrain parts; and multi-layer or composite gaskets with elastomer oil seals.
Common Reasons Riders Replace This Part
- Full or partial engine rebuilds
- Repairs after overheating or oil starvation
- Fixing oil leaks at cases, covers and seals
- Restoring compression and power on a high-hour engine
Signs Your Woodruff Key Needs Replacing
- Oil leaks around covers, cases or seals
- Ticking, knocking or rattling from the engine
- Low compression or noticeable power loss
- Blue or white smoke, or high oil use
- Metal debris in the oil or on the drain plug magnet
Installation Tips
- Follow the Polaris service manual for your model; engine work needs exact procedures and torque specs.
- Clean all mating surfaces and replace any gaskets and seals you disturb.
- Measure critical clearances with proper tools before final assembly.
- Lubricate moving parts with clean engine oil or assembly lube as specified.
- Torque fasteners in sequence, refill fluids and check for leaks.
Not sure whether to tackle it yourself? Read when to seek professional help or DIY before you start.
Related OEM Parts for the Same Machines
Doing the job right? These genuine Polaris parts fit the same models and are often replaced at the same time:
Recommended Accessories and Maintenance Supplies
Pair your Woodruff Key with these parts and supplies:
Helpful Guides from the Witchdoctors Blog
Frequently Asked Questions
What is the OEM part number for this Polaris Woodruff Key?
The genuine Polaris part number is 3240168. Use it to match this part to your factory parts diagram.
Which Polaris models does part #3240168 fit?
It fits 45 Polaris ATP, Hawkeye, Magnum, Outlaw, Predator, Ranger, Scrambler, Sportsman, Trail Blazer and Trail Boss models from 2003 to 2014. The complete list is in the fitment tables above.
Is this a genuine Polaris part?
Yes. This is a genuine Polaris OEM part, the same part number used at the factory, not an aftermarket copy.
Should I replace gaskets and seals at the same time?
Yes. Replace any gasket or seal you disturb. They are on the same Polaris parts diagram.
Is OEM worth it over aftermarket engine parts?
For internals, OEM parts match the exact clearances the engine was designed around, which helps avoid noise, wear and leaks.
Can I do this repair myself?
Experienced home mechanics can do many engine repairs with the service manual and the right tools. Precision internal work is best left to a qualified technician if you are not set up for it.
Order Your Genuine Polaris Woodruff Key Today
Get your Polaris ATV or side-by-side back to factory condition. Add the genuine Polaris Woodruff Key (part #3240168) to your cart today, and order the related parts above at the same time so you can finish the job in one go.
