Raceline Krank Wheel, 14x7, Black, 4/137, 5+2 (+10mm) for Can-Am & Kawasaki

Price
$189 USD
Normally ships in 2-3 business days

Inventory:

Loading..
SKU: A94B-47037+10

Pickup available at Elm Rd. Warehouse

learn more in checkout

View store information
In stock and ready for shipping

SKU: A94B-47037+10

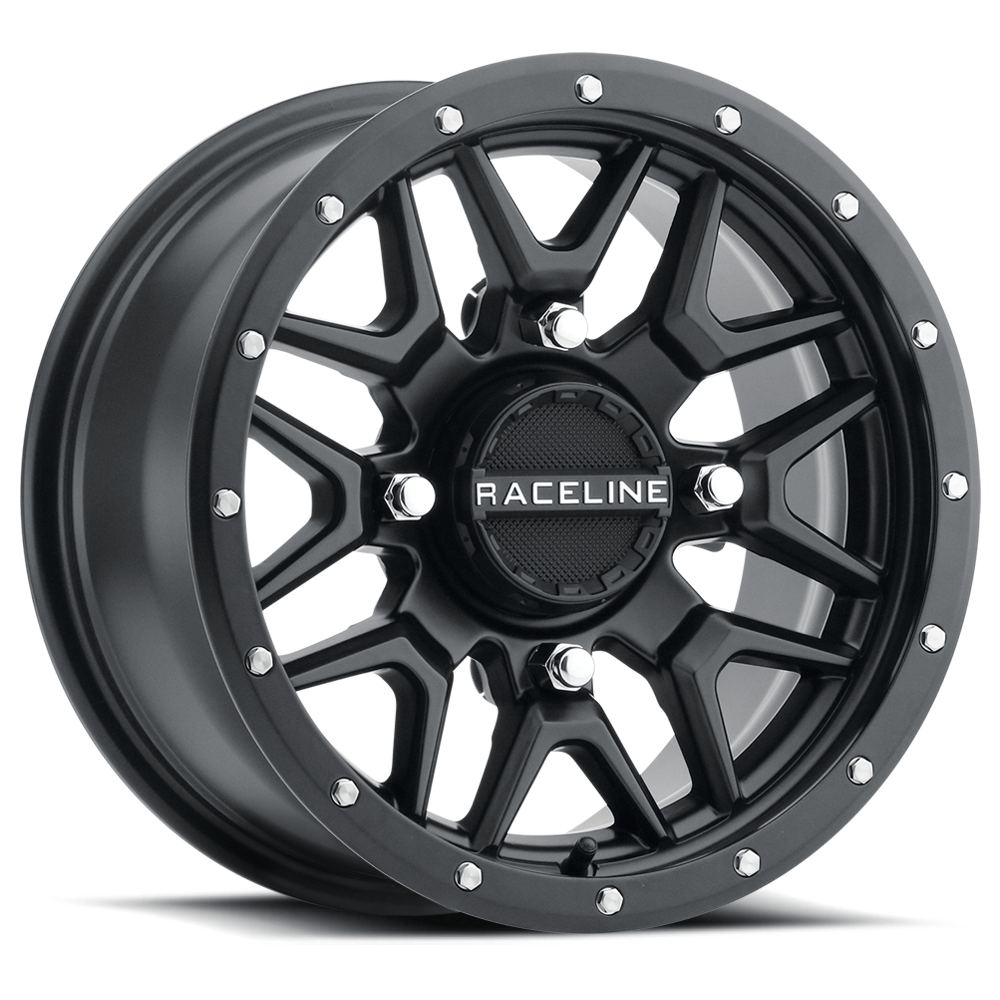

Raceline Krank Wheel, 14x7, Black, 4/137, 5+2 (+10mm) for Can-Am & Kawasaki — Raceline Part #A94B-47037+10

Raceline has built off-road wheels for decades and supplies wheels to top off-road race series. A split V-spoke design with a simulated beadlock ring finished in stainless steel bolts.

Raceline Krank Wheel, 14x7, Black, 4/137, 5+2 (+10mm) for Can-Am & Kawasaki at a Glance

  • Raceline part number: A94B-47037+10
  • Brand: Raceline
  • Model: Krank
  • Size: 14x7
  • Type: Simulated beadlock look (not a true beadlock)
  • Finish: Black
  • Bolt pattern: 4/137
  • Offset: 5+2 (+10mm)
  • Material: A356 cast aluminum
  • Condition: New

Fitment

Fits vehicles with a 4/137 bolt pattern, used on many Can-Am and Kawasaki ATVs and UTVs.

Offset 5+2 (+10mm) means 5 inches of backspacing and 2 inches outboard. Lower backspacing pushes the wheel out for a wider stance.

Check brake, tie rod and suspension clearance before mounting. Raceline notes these wheels may require aftermarket lug nuts.

Why Choose Raceline?

  • Heavy-duty A356 aluminum wheels engineered for strength
  • Forged 6061 beadlock rings with USA-made Grade 8 hardware on true beadlock models
  • Official wheel of top off-road race series
  • Sold and shipped by Witchdoctors

Features and Benefits

Key Features

  • 8 split V-spoke design
  • Constructed out of heavy duty A356 aluminum with a simulated beadlock ring area finished off with stainless steel bolts
  • Engineered to be one of the strongest wheels available
  • Available in Red, Satin Black and Bronze finishes
  • Includes a satin black snap-in cap with embossed chrome Raceline logo
  • Available in both 14 and 15 diameters for most ATV/UTV bolt patterns
  • May require aftermarket lug nuts

Installation Tips

  1. Check bolt pattern, offset and clearance against your vehicle.
  2. Mount and balance the tire. For beadlocks, torque ring bolts to 17 ft-lb in a star pattern by hand.
  3. Use lug nuts that match your studs and the wheel's seat; Raceline notes aftermarket lug nuts may be needed.
  4. Torque lug nuts in a star pattern to spec.
  5. Re-torque lug nuts and beadlock bolts after the first ride.

Complete Your Setup

Recommended Accessories

Helpful Guides from the Witchdoctors Blog

Frequently Asked Questions

What is the Raceline part number?

The Raceline part number is A94B-47037+10.

Will it fit my vehicle?

It fits vehicles with a 4/137 bolt pattern, common on Can-Am and Kawasaki models. Confirm your bolt pattern and clearance, or contact us.

Is this a true beadlock?

Ryno, Podium, Squad, Mamba and Alpha beadlock models use a real forged beadlock ring. Trophy and Krank have a simulated beadlock look and mount tires normally.

What does offset like 5+2 mean?

It is backspacing plus outboard spacing in inches. 5+2 places 5 inches of the 7-inch width inside the mounting face.

Are lug nuts included?

No. Raceline notes these wheels may require aftermarket lug nuts.

Order Your Raceline Krank Wheel, 14x7, Black, 4/137, 5+2 (+10mm) for Can-Am & Kawasaki Today

Built to take a beating and look good doing it. Add the Raceline Krank Wheel, 14x7, Black, 4/137, 5+2 (+10mm) for Can-Am & Kawasaki (Raceline #A94B-47037+10) to your cart today.
