Pinion 10T 3233802 by Polaris

Price
$369.99 USD

Inventory:

Loading..
No longer available
SKU: 3233802

Ships Free to USA

Stock Notification

Get notified when this product is available again

Out of stock

SKU: 3233802

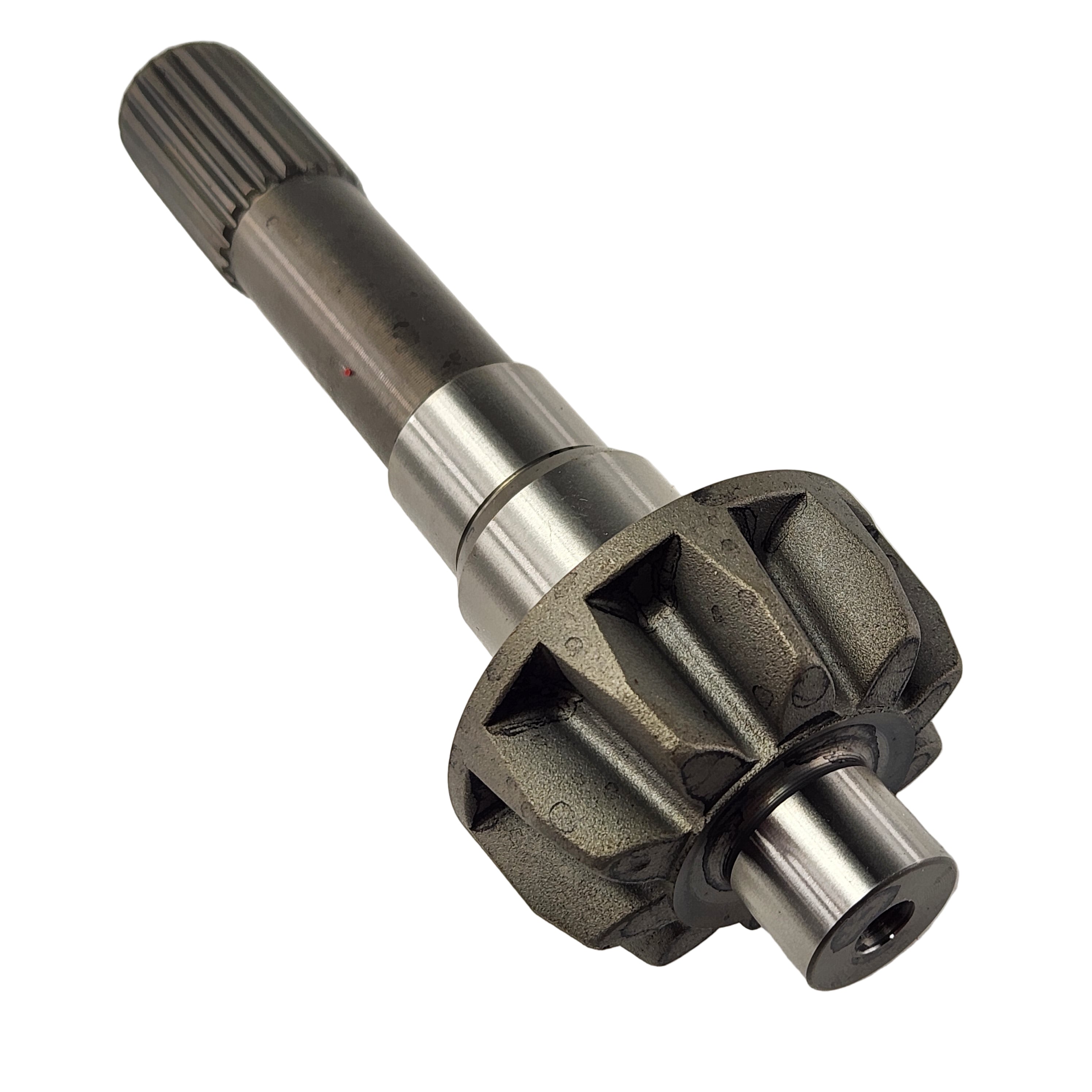

Genuine Polaris Pinion 10T — OEM Part #3233802

Grinding gears, popping out of range and vibration all point to the drivetrain. The genuine Polaris Pinion 10T restores factory shifting and power delivery on your Polaris ATV or side-by-side, built to the exact dimensions of the original so it meshes and mounts correctly.

The transmission, shift mechanism, gearcases and drive shafts carry the full torque of the engine. Worn or mismatched parts cause noise, hard shifting and expensive failures. This part is confirmed for 15 Polaris models from 2003 to 2009. See the full fitment list below.

Pinion 10T at a Glance

  • OEM part number: 3233802
  • Brand: Polaris (genuine factory part)
  • Part type: Rear Gearcase
  • Fits: Ranger utility side-by-side and Series 10/11 ATV models, 2003–2009
  • Condition: New

Polaris Models and Years This Pinion 10T Fits

Genuine Polaris part #3233802 fits the models and years below. To be certain, match the part number to the factory parts diagram for your machine or contact us with your VIN before ordering.

Polaris Ranger utility side-by-side Fitment

Model Model Years
Polaris Ranger 2x4 2004–2005
Polaris Ranger 4x4 2004–2005
Polaris Ranger 6x6 2004–2005
Polaris Ranger 6x6 700 EFI 2006–2009
Polaris Ranger 500 Tm 2x4 2006
Polaris Ranger 700 EFI 6x6 2006
Polaris Ranger Tm 2004–2006
Polaris Series 10 Ranger 500 4x4 2003
Polaris Series 10 Ranger 500 6x6 2003
Polaris Series 11 Ranger 2003

Polaris Series 10/11 ATV Fitment

Model Model Years
Polaris Series 10 UTV 2x4 2003
Polaris Series 10 UTV 4x4 2003
Polaris Series 11 UTV 2x4 2003
Polaris Series 11 UTV 4x4 2003
Polaris Series 11 UTV 6x6 2003

Why Choose a Genuine Polaris OEM Pinion 10T?

  • Exact gear, spline and bearing fit
  • Restores smooth, positive shifting and range selection
  • Designed for full engine torque and load
  • Lowers the risk of repeat failures
  • Sold by Witchdoctors, with factory part numbers and parts diagrams for every Polaris model we support

Features and Materials

Key Features

  • Genuine Polaris OEM drivetrain part, part #3233802
  • Machined to Polaris's original specifications
  • Hardened surfaces where applicable
  • Matches factory seals, bearings and mounting
  • Designed for the listed Polaris models

Materials and Construction

Polaris drivetrain parts use heat-treated alloy steel for gears, shafts, forks and splines, sealed bearings, and aluminum or cast housings, with oil- and weather-resistant seals and boots.

Common Reasons Riders Replace This Part

  • Fixing grinding, popping out of gear or hard shifting
  • Rebuilding transmissions, gearcases and differentials
  • Fixing AWD/4WD engagement problems
  • Repairing leaks and vibration from drive shafts and U-joints

Signs Your Pinion 10T Needs Replacing

  • Grinding, clunking or whining
  • Popping out of gear or trouble selecting range
  • Vibration that grows with speed
  • Oil leaks at seals, covers or gearcases
  • AWD that will not engage or release

Installation Tips

  1. Drain transmission or gearcase fluid before disassembly.
  2. Follow the Polaris service manual for shimming, preload and torque specs.
  3. Replace seals, O-rings and gaskets you disturb.
  4. Lubricate gears and bearings with the specified fluid during assembly.
  5. Refill with the correct fluid and amount, then test-ride and check for leaks.

Not sure whether to tackle it yourself? Read when to seek professional help or DIY before you start.

Related OEM Parts for the Same Machines

Doing the job right? These genuine Polaris parts fit the same models and are often replaced at the same time:

Recommended Accessories and Maintenance Supplies

Pair your Pinion 10T with these parts and supplies:

Helpful Guides from the Witchdoctors Blog

Frequently Asked Questions

What is the OEM part number for this Polaris Pinion 10T?

The genuine Polaris part number is 3233802. Use it to match this part to your factory parts diagram.

Which Polaris models does part #3233802 fit?

It fits 15 Polaris Ranger and Series models from 2003 to 2009. The complete list is in the fitment tables above.

Is this a genuine Polaris part?

Yes. This is a genuine Polaris OEM part, the same part number used at the factory, not an aftermarket copy.

What fluid should I use?

Use the transmission and gearcase fluids in your Polaris owner's manual. The wrong fluid can cause wear and engagement problems.

Should I replace bearings and seals during a rebuild?

Yes. They are inexpensive compared to labor.

Can a bad drivetrain part damage other components?

Yes. Worn parts shed metal into the fluid and damage gears and bearings. Repair problems early.

About Availability of Part #3233802

This part is marked as no longer available. It may have been replaced by a newer part number. Contact our customer service team with your VIN and we will help you find the current replacement, or read more about parts that are no longer available.
