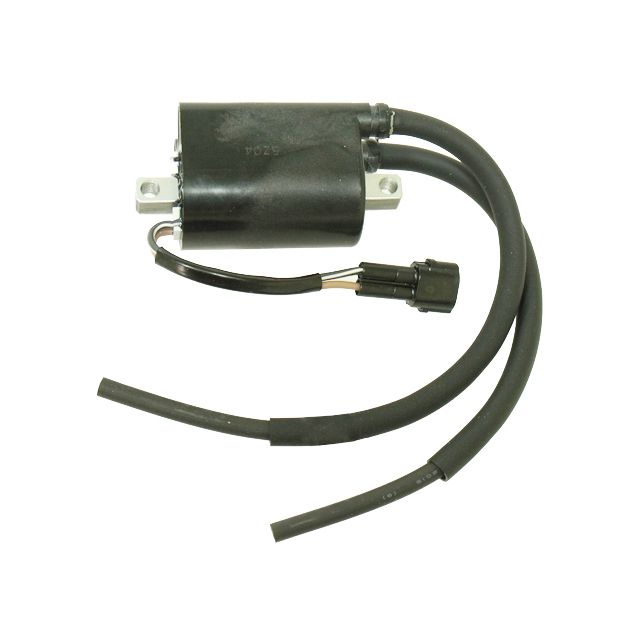

Bronco Suzuki KingQuad AXI Ignition Coil

Price
$79.95 USD
Normally ships in 2-3 business days

Inventory:

Loading..
Shipping delay
SKU: AT-01693
In stock and ready for shipping

SKU: AT-01693

Hard starts, misfires and a loss of power can often be traced to the ignition system. The Bronco Suzuki KingQuad AXI Ignition Coil (part number AT-01693) is a replacement ignition coil from Bronco ATV/UTV Components, listed for the Suzuki KingQuad AXI.

It's designed as a direct replacement for the original ignition coil, so you can fix the problem without buying a full ignition system.

Why Choose Bronco

Bronco ATV/UTV Components makes replacement parts for the most popular ATVs and UTVs, focused on direct fit and value compared with dealer parts.

Key Features

  • Direct OEM-style bolt-on replacement
  • Copper windings for efficient energy transfer
  • Epoxy fill for insulation and resistance to vibration and moisture
  • Impact-resistant housing
  • Corrosion-resistant connectors
  • Heat-resistant materials for off-road conditions

Specifications

  • Part number: AT-01693
  • Type: ignition coil
  • Resistance values and connector type: not listed; compare with your original part or service manual

Fitment and Compatibility

The listing title names the Suzuki KingQuad AXI, but it doesn't list model years or specific models. Ignition parts vary by year, engine and model, so confirm fitment before ordering: compare the part number on your old part, check Bronco's application chart, or contact our team with your year, make, model and VIN.

Signs of a Failing Ignition Coil

  • Hard starting or no start
  • Misfires and stumbling under load
  • Rough idle or stalling
  • Backfiring
  • Loss of power and poor acceleration
  • Weak or intermittent spark, often worse when the engine is hot

How to Test Before You Buy

  • Pull the spark plug, ground it against the engine and crank to check for a strong blue spark.
  • Measure primary and secondary resistance with a multimeter and compare with your service manual.
  • Inspect the plug wire and cap for cracks and corrosion.
  • Check connectors and grounds; a corroded connection can cause the same symptoms.
  • Rule out the spark plug, CDI, stator and kill switch wiring.

Installation Steps

  • Turn the key off and disconnect the battery.
  • Locate the coil, usually under the seat, tank or body panels.
  • Note wire routing and connector positions, or take a photo.
  • Remove the old coil and install the new one in the same position.
  • Reconnect wiring, check grounds and secure wires away from heat.
  • Reconnect the battery and test start the engine.

While You're In There

Replace the spark plug if it's worn or fouled, check the plug wire and boot, and clean the ground connections. A fresh plug and good grounds help any ignition part perform its best.

Common Use Cases

  • Restoring an ATV or UTV that won't start or misfires
  • Preventive maintenance on an older machine
  • Engine rebuilds and restorations
  • Keeping a work machine running without dealer prices

How an ATV/UTV Ignition System Works

As the engine turns, a magnet on the flywheel passes the stator and pickup coil. The stator charges the system, and the pickup coil sends a timing signal to the CDI or ignition module. At the right moment, the module sends power to the ignition coil, which steps it up to tens of thousands of volts and fires it through the plug wire to the spark plug. A weak link anywhere in that chain can cause hard starting, misfires or no spark.

Diagnosing No Spark, Step by Step

  • Check the obvious first: kill switch, key, fuses, battery charge and neutral or brake safety switches.
  • Install a new or known-good spark plug and check for spark.
  • Inspect the plug wire, boot and coil connectors for cracks, corrosion and loose terminals.
  • Test the ignition coil's primary and secondary resistance against your service manual.
  • Test the pickup coil and stator outputs against your service manual.
  • If those all check out, the CDI or ignition module may be the cause.

Coil, CDI and Stator: What Fails?

Coils usually fail from heat, vibration and moisture breaking down their insulation, and failures are often worse when the engine is hot. Stators can fail from heat and overcharging, and CDI units from water intrusion or electrical faults. Because the symptoms overlap, testing each part with a multimeter saves money compared with replacing parts until the problem goes away.

Spark Plug Tips

Use the plug type, heat range and gap your vehicle maker specifies. A worn electrode, carbon fouling or the wrong gap makes the coil work harder and can mimic a failing coil. Replace plugs at the interval in your owner's manual, and more often if you ride in dust, mud or water.

Tools You'll Need

  • Basic socket and wrench set
  • Multimeter for resistance testing
  • Spark tester or spare spark plug
  • Dielectric grease for connectors
  • Your vehicle's service manual

Protecting Your Ignition From Water and Mud

Apply dielectric grease to connectors, keep plug boots seated firmly and route wires away from exhaust heat. After water crossings or washing, let the machine dry and check that connectors are clean and tight.

Why Buy From Witchdoctors

Witchdoctors carries suspension, ignition and replacement parts for Polaris, Can-Am, Honda, Yamaha, Kawasaki, Suzuki, Arctic Cat, CFMoto and more. Our team can help you confirm the right part for your machine.

Related Products

Bronco Products · UTV Ignition · ATV & UTV Voltage Regulators & Stators · Spark Plugs

Helpful Guides From the Witchdoctors Blog

Frequently Asked Questions

How do I know it fits my machine?

Compare the part number on your old part, or contact our team with your year, make, model and VIN.

Is installation difficult?

No. It's a direct replacement that installs with basic hand tools on most machines.

Will it fix my no-spark problem?

Only if the coil is the cause. Test the spark plug, wiring, CDI and stator too.

Is there a warranty?

Contact our team for current warranty information.

Where to Ride

Get your machine back on the trail at one of these riding areas:

Order Today

Add the Bronco Suzuki KingQuad AXI Ignition Coil to your cart. Not sure it fits? Contact our team with your year, make, model and VIN.
