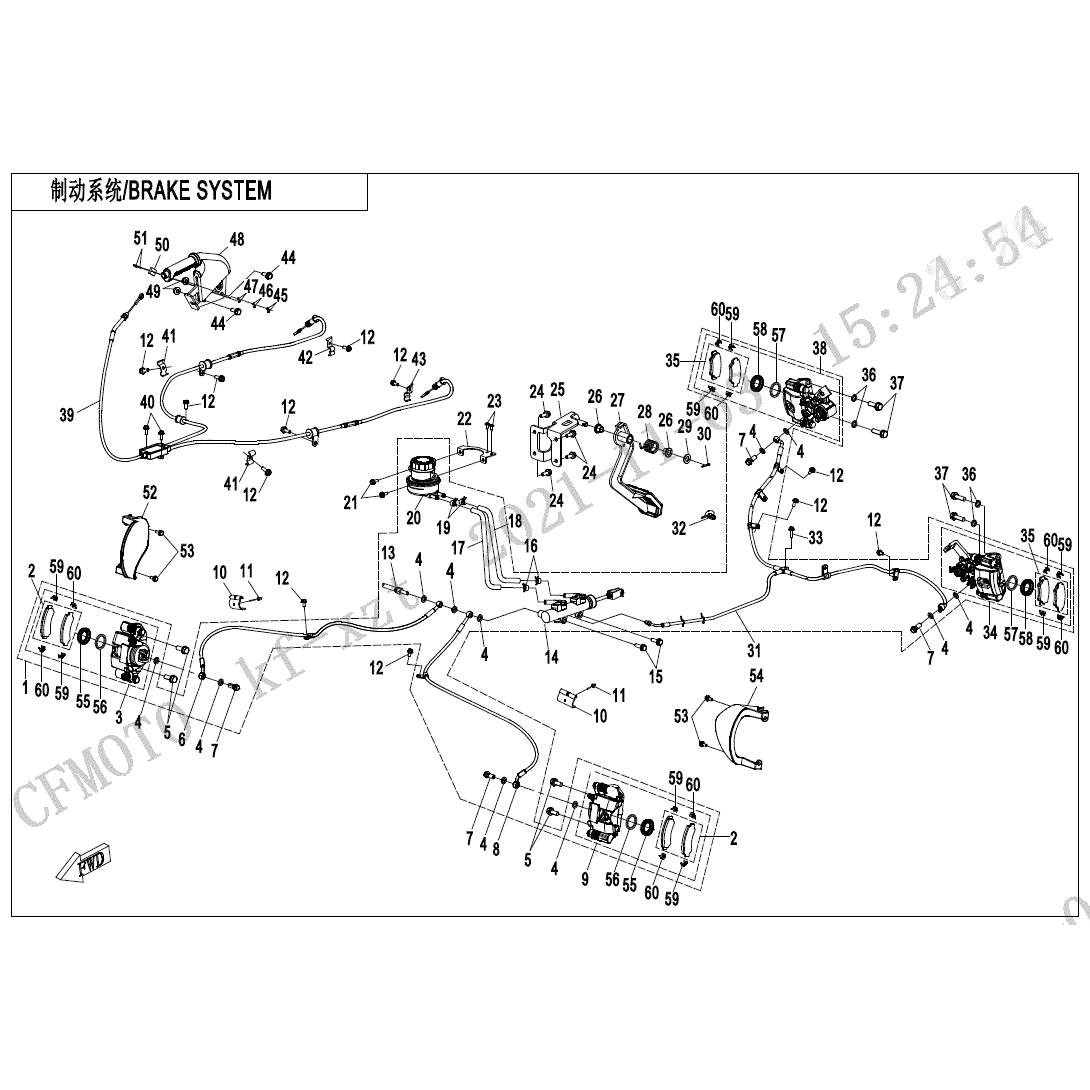

BRAKE SYSTEM

Prices shown are USD
1
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BYV-081000-A501
Hydraulic Brake by CFMOTO
5BYV-081000-A501 Replaces 5BYV-081000-A100
$1,499.99 USD

2
Front Brake Pads by CFMOTO
Front Brake Pads by CFMOTO
5HYV-0811A0
$79.99 USD

3
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWV-081200-4000
Front Brake Caliper, Right by CFMOTO
9AWV-081200-4000 Replaces 9AWA-081200
$229.99 USD

4
Washer by CFMOTO
Washer by CFMOTO
0010-060010 Replaces 901B-080102
$2.99 USD

5
Silver hex flange bolt with threaded shaft and flat top, labeled M10x1.25x25.
Bolt M10x1.25x25 by CFMOTO
30006-102025810
$1.99 USD

6
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-081030
Front Brake Fluid Hose, Right by CFMOTO
5BY0-081030
$59.99 USD

7
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 7020-081004
Banjo Bolt by CFMOTO
7020-081004
$2.99 USD

8
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-081010
Brake Fluid Hose, Left Front by CFMOTO
5BY0-081010
$49.99 USD

9
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9AWV-081100-4000
Front Brake Caliper, Left by CFMOTO
9AWV-081100-4000 Replaces 9AWA-081100
$229.99 USD

10
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-080002
Plastic Clip by CFMOTO
5BY0-080002
$1.99 USD

11
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30902-0401320
Pop Rivet 4X13 by CFMOTO
30902-0401320
$1.09 USD

12
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30006-060012870
Bolt M6x12 by CFMOTO
30006-060012870 Replaces 30006-060012810
$1.09 USD

13
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5HY0-080010-20000
Brake Switch by CFMOTO
5HY0-080010-20000
$39.99 USD

14
Master Cylinder (Replaces 5Bwb-081100) by CF Moto 5BWB-081100-00002 OEM Hardware 5BWB-081100-00002 OFF ROADS CF MOTO
Master Cylinder by CFMOTO
5BWB-081100-00002 Replaces 5BWB-081100
$169.99 USD

15
Bolt M8x25 by CFMOTO
Bolt M8x25 by CFMOTO
30006-080025810
$1.09 USD

16
Brake Line Clip by CFMOTO
Brake Line Clip by CFMOTO
7020-081002
$1.99 USD

17
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-081001
Front Brake Reservoir Hose by CFMOTO
5BY0-081001
$29.99 USD

18
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-081002
Front Brake Reservoir Hose by CFMOTO
5BY0-081002
$29.99 USD

19
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9010-080405
Clamp by CFMOTO
9010-080405
$2.99 USD

20
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BW1-080150-20000
Brake Fluid Reservoir by CFMOTO
5BW1-080150-20000
$59.99 USD

21
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30006-060016810
Bolt by CFMOTO
30006-060016810
$1.09 USD

22
Brake Reservoir Bracket by CFMOTO
Brake Reservoir Bracket by CFMOTO
5UWB-030110
$6.99 USD

23
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30110-481130070
Tapping Screw St4.8X13 by CFMOTO
30110-481130070
$1.09 USD

24
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30006-080025870
Bolt M8x25 by CFMOTO
30006-080025870
$1.99 USD

25
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-080010
Foot Pedal Fixed Bracket by CFMOTO
5BY0-080010
$39.99 USD

26
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9060-105002
Bushing by CFMOTO
9060-105002
$3.99 USD

27
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5HYV-082000-1201
Brake Pedal by CFMOTO
5HYV-082000-1201
$21.99 USD

28
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 9060-080003
Brake Pedal Return Spring by CFMOTO
9060-080003
$4.99 USD

29
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30306-120112
Plain Washer 12 by CFMOTO
30306-120112
$1.09 USD

30
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30903-0322210
Cotter Pin 3.2X22 by CFMOTO
30903-0322210
$1.09 USD

31
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-081020
Rear Brake Fluid Hose by CFMOTO
5BY0-081020
$229.99 USD

32
Zip Tie by CFMOTO
Zip Tie by CFMOTO
7030-150005
$2.99 USD

33
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30006-060020870
Bolt M6x20 by CFMOTO
30006-060020870 Replaces 30006-060020810
$1.99 USD

35
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5ASV-0813A0
Rear Brake Pads by CFMOTO
5ASV-0813A0
$69.99 USD

36
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30300-100112
Washer by CFMOTO
30300-100112
$1.09 USD

37
Silver metal bolt with a flat slotted head and threaded shaft, M10x1.2x35 size.
Bolt M10x1.2x35 by CFMOTO
30006-102035810
$1.99 USD

39
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-083100
Parking Brake Cable by CFMOTO
5BY0-083100
$69.99 USD

40
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30006-050016810
Bolt M5x16 by CFMOTO
30006-050016810
$1.09 USD

41
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-080001
Oil Hose Clip, Left by CFMOTO
5BY0-080001
$4.99 USD

42
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-080006
Oil Hose Clip, Right by CFMOTO
5BY0-080006
$4.99 USD

43
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-080005
Oil Hose Clip, Left by CFMOTO
5BY0-080005
$4.99 USD

44
Bolt M8x20 by CFMOTO
Bolt M8x20 by CFMOTO
30006-080020810
$1.09 USD

45
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30200-020500
Nut M2 by CFMOTO
30200-020500
$1.09 USD

46
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30303-020900
Parking Brake Washer by CFMOTO
30303-020900
$1.09 USD

47
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30306-020800
Parking Brake Washer by CFMOTO
30306-020800
$1.09 USD

48
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BYV-083200-B000
Parking Brake Lever by CFMOTO
5BYV-083200-B000
$99.99 USD

49
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30204-080810
Nut M8 by CFMOTO
30204-080810
$1.09 USD

50
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 7000-082210-20000
Micro Switch by CFMOTO
7000-082210-20000
$21.99 USD

51
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 30105-020016700
Screw M2X16 by CFMOTO
30105-020016700
$1.09 USD

52
An Image of the Genuine CFMOTO Logo reading 'GENUINE OEM PART' 5BY0-080008
Brake Caliper Guard, Front Right by CFMOTO
5BY0-080008
$5.99 USD

53

Item No Longer Available



54

Item No Longer Available



55

Item No Longer Available



57

Item No Longer Available



58

Item No Longer Available



59

Item No Longer Available



60

Item No Longer Available



61

Item No Longer Available



62

Item No Longer Available



63

Item No Longer Available
