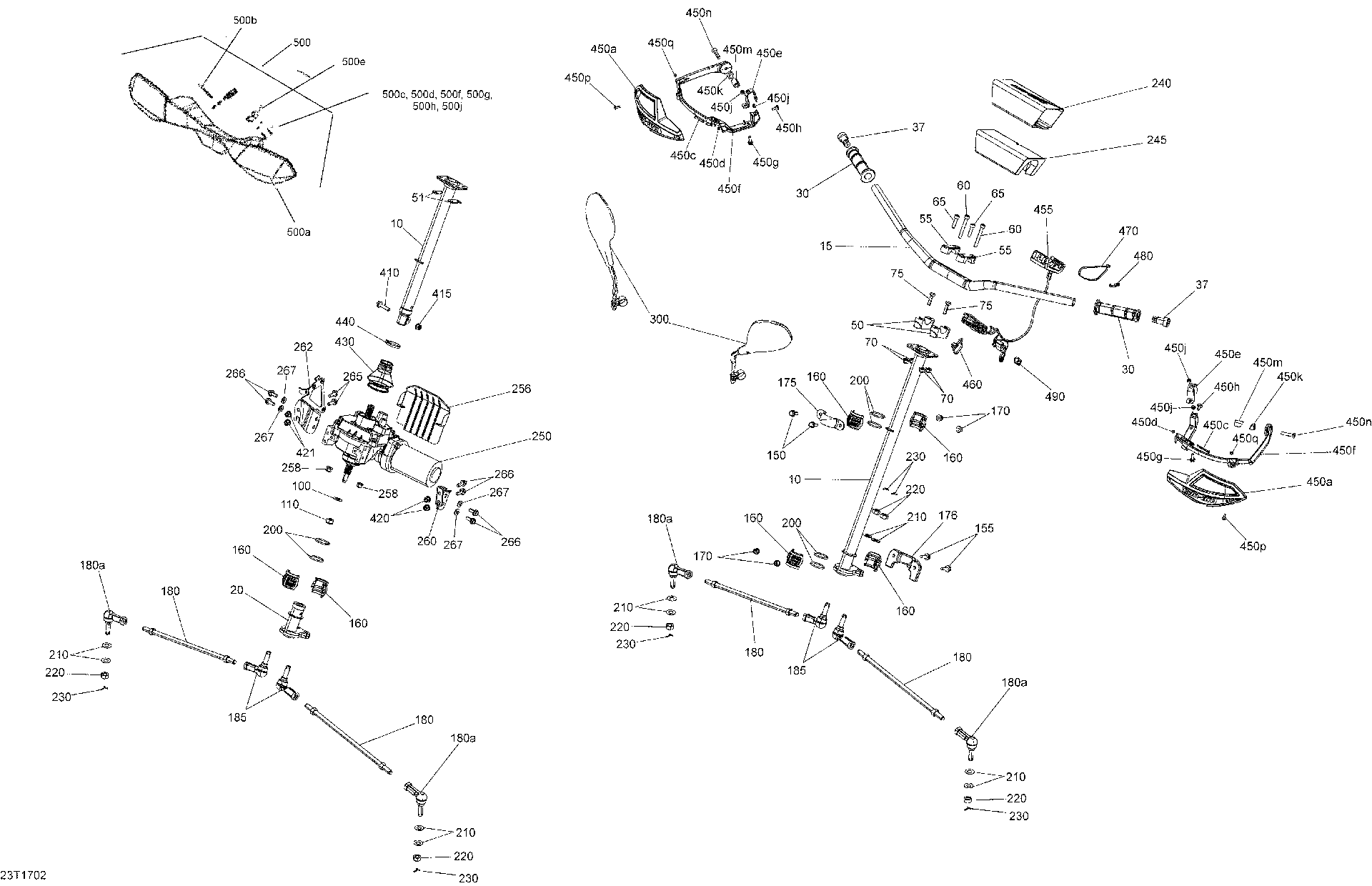

STEERING - ALL MODELS

Prices shown are USD
450n
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 205384034
Socket Head Screw by Can-Am
205384034
$6.59 USD

450c
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 205444056
Socket Head Screw M4x40 by Can-Am
205444056
$2.19 USD

450g
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207662044
Hex Flange Screw M6x20 by Can-Am
207662044
$2.09 USD

450d
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232541414
Elastic Stop Nut M4 by Can-Am
232541414
$0.60 USD

500j
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232541414
Elastic Stop Nut M4 by Can-Am
232541414
$0.60 USD

450q
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232551600
Hex Elastic Nut M5 by Can-Am
232551600
$1.19 USD

450j
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 232561600
Hex Elastic Stop Nut M6 by Can-Am
232561600
$1.19 USD

500d
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 211200035
Flat Washer by Can-Am
211200035
$0.57 USD

500h
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 234042600
Flat Washer 4mm Stainless by Can-Am
234042600
$1.19 USD

500c
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 241142560
Hex Flange Screw K40x25 by Can-Am
241142560
$2.69 USD

500g
Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
Item Not Available



450h
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000717
Torx Head Screw M6x16 by Can-Am
250000717
$2.19 USD

450p
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000742
Torx Screw M5x14 by Can-Am
250000742
$1.49 USD

500e
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 517308718
Mounting Clamp by Can-Am
517308718
$12.99 USD

500>500e
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402845
Handlebar Air Deflector Kit by Can-Am
709402845
$98.49 USD

500>500j
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402847
Handle Guard LTD by Can-Am
709402847 Replaces 703100357
$92.99 USD

450>450q
Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
Item Not Available



450>450q
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715003811
Deflector Kit by Can-Am
715003811
$34.99 USD

180>180a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 703501038
Tie Rod Ass`y [Includes 180a to 180a1] by Can-Am
703501038
$96.49 USD

180>180a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 703501037
Tie Rod [Includes 180 to 180b] by Can-Am
703501037
$110.99 USD

500b
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 704902966
Decal by Can-Am
704902966
$14.49 USD

450k
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400161
Small Bracket by Can-Am
709400161
$21.99 USD

450m
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400162
Large Bracket by Can-Am
709400162
$20.99 USD

500f
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400781
Rubber Bumper by Can-Am
709400781
$4.39 USD

500a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400822
Handle Bar Protector by Can-Am
709400822
$90.99 USD

500a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402847
Handle Guard LTD by Can-Am
709402847 Replaces 703100357
$92.99 USD

450a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709401620
Deflector (Right) by Can-Am
709401620
$34.99 USD

450a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709401621
Deflector (Left) by Can-Am
709401621
$35.99 USD

450a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709401667
Deflector (Right) {Red} by Can-Am
709401667
$35.99 USD

450a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709401668
Deflector (Left) {Red} by Can-Am
709401668
$35.99 USD

180a
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402303
Ball Joint (Left) by Can-Am
709402303
$36.99 USD

450e
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715001378
Air Deflector Support Kit by Can-Am
715001378
$138.49 USD

450f
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 715001378
Air Deflector Support Kit by Can-Am
715001378
$138.49 USD

10
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402806
Steering Axle [Includes 10 to 10a8] by Can-Am
709402806
$174.99 USD

10
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 703501137
Upper Main Tube {Black} by Can-Am
703501137 Replaces 709400703
$184.99 USD

15
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400513
Aluminum Handlebar by Can-Am
709400513
$63.49 USD

15
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402872
Handlebar {Deep Black} by Can-Am
709402872
$56.99 USD

15
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400513
Aluminum Handlebar by Can-Am
709400513
$63.49 USD

20
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 703500785
Pitman Kit [With DPS Except XMR] by Can-Am
703500785
$159.99 USD

20
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 703500812
Pitman Kit [Package XMR] by Can-Am
703500812
$159.99 USD

30
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400443
Handlebar Grip by Can-Am
709400443
$13.77 USD

30
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400493
Handlebar Grip by Can-Am
709400493
$14.83 USD

37
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400449
End Piece by Can-Am
709400449
$8.49 USD

50
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402750
Lower Mounting Clamp by Can-Am
709402750
$25.99 USD

50
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709401799
Steering Support by Can-Am
709401799
$22.49 USD

51
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709400509
Stiffner by Can-Am
709400509
$4.79 USD

55
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709402749
Upper Mounting Clamp by Can-Am
709402749
$25.99 USD

55
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 709401799
Steering Support by Can-Am
709401799
$22.49 USD

60
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 205086060
Socket Head Screw M8x60 by Can-Am
205086060
$4.19 USD

60
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207086046
Hex Screw M8x60 by Can-Am
207086046
$2.89 USD

65
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 205583060
Socket Screw M8 x 30 by Can-Am
205583060 Replaces 205083060
$3.69 USD

70
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 233281416
Hex Elastic Flange Nut M8 by Can-Am
233281416
$1.49 USD

75
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207183060
Hex Screw M8x30 by Can-Am
207183060
$1.59 USD

100
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706200281
Hardened Washer by Can-Am
706200281 Replaces 250200086
$2.89 USD

110
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 250000047
Hex Flange Elastic Nut M12 by Can-Am
250000047
$1.99 USD

150
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 207682044
Hex Flange Screw M8x20 by Can-Am
207682044
$1.19 USD

155

Item No Longer Available



160

Item No Longer Available



170

Item No Longer Available



175

Item No Longer Available



176

Item No Longer Available



185

Item No Longer Available



200

Item No Longer Available



210
An Image of the Genuine Can-Am Logo reading 'GENUINE OEM PART' 706200281
Hardened Washer by Can-Am
706200281 Replaces 250200086
$2.89 USD

220

Item No Longer Available



230

Item No Longer Available



240

Item No Longer Available



240

Item No Longer Available



240

Item No Longer Available



245

Item No Longer Available



250

Item No Longer Available



256
Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
Item Not Available



258

Item No Longer Available



260

Item No Longer Available



262
Item No Longer Available ITEM-NLA SCHEMATIC REQUIREMENT
Item Not Available



265

Item No Longer Available



266

Item No Longer Available



267

Item No Longer Available



300

Item No Longer Available



300

Item No Longer Available



410

Item No Longer Available



415

Item No Longer Available



420

Item No Longer Available



421

Item No Longer Available



430

Item No Longer Available



440

Item No Longer Available



455

Item No Longer Available



460

Item No Longer Available



470

Item No Longer Available



480

Item No Longer Available



490

Item No Longer Available




STEERING - ALL MODELS - 2017 CAN AM OUTLANDER 650 EFI PRO

$0 USD

Inventory:

Loading..
In stock and ready for shipping

SKU: CAN-AM-ATV-SCHEM-30980

Can-Am UTV/ATV OEM Parts Schematic: The Ultimate Precision Repair Tool

Schematic Group: Genuine OEM CAN-AM - STEERING - ALL MODELS - 2017 CAN AM OUTLANDER 650 EFI PRO

Whether you are deep-cleaning a Can-Am Outlander after a mud run or performing a precision engine rebuild on a Maverick RR X MR, accuracy is everything. Using a Can-Am UTV/ATV OEM Parts Schematic from Witchdoctors.com is the only way to ensure every seal, bolt, and bearing is an exact factory match.

Our high-resolution diagrams act as your digital blueprint, showing you the precise location and assembly order for every component. By choosing Genuine Original Equipment Manufacturer (OEM) parts, you guarantee that your Can-Am maintains the same engineering standards, safety ratings, and resale value it had the day it left the assembly line.

Extensive Can-Am Model Fitment

We host a massive database of parts diagrams covering the latest 2026 models back to 2015. Browse our schematics for these popular Can Am families:

Popular UTV Models:

Popular ATV Models:

Important: ⚠️ Always check your owner’s manual or the fitment tab on witchdoctors.com to make sure this part fits your specific year, make, and model before ordering.

Why Trust Genuine Can-Am OEM Parts?

While aftermarket parts might save a few dollars upfront, they rarely meet the strict tolerances required for high-performance off-roading. Using our Can-Am UTV/ATV OEM Parts Schematic ensures:

  • Perfect Compatibility: Every part is designed specifically for your frame and engine configuration. No "universal" fitment headaches.
  • Factory-Grade Materials: OEM components are built to handle the heat, vibration, and torque Can-Am vehicles are known for.
  • Visual Confidence: Our schematics prevent the "where does this washer go?" mystery by providing an exploded view of the entire assembly.
  • Maximum Performance: Keep your machine running like new by using the same parts Can-Am engineers used during development.

How to Use Our Parts Finder

Finding your part is simple. Select your year and model, then browse the specific system you need—such as the Cylinder Head Cover, CVT Assembly, or Front Suspension. Once you locate the item on the visual diagram, the corresponding part number and price will be listed for immediate checkout.

Frequently Asked Questions (FAQs)

What is a Can-Am OEM Parts Schematic?

It is an "exploded view" diagram of your vehicle's specific systems (like the engine, suspension, or brakes). It allows you to identify every individual part by its official OEM part number.

How do I find my specific Can-Am part number?

Simply select your year and model on Witchdoctors.com. Browse the relevant system schematic, find the item on the drawing, and click the corresponding number to see the part name and price.

Why should I buy from Witchdoctors.com?

We provide fast shipping, competitive pricing, and a user-friendly interface that makes finding complex Can-Am parts easy for both DIY riders and professional mechanics.

Restore Your Ride Today

Don't let a missing clip or a worn-out belt end your weekend. Trust the visual accuracy of our Can-Am UTV/ATV OEM Parts Schematics to get the job done right the first time.

Shop Can-Am OEM Parts Schematics Now

Are You Looking to Find Great Places & Adventurous Trails to Ride Your Can-AM UTV, Side by Side or ATV? Check out these highly recommended places:

  1. Mulberry Mountain in Arkansas
  2. WindRock Park in Tennessee
  3. Look Here in Ohio

General Safety Warning & Installation Requirements

Your safety is our top priority. Whether you are maintaining a Victory® or Indian® Motorcycle, or servicing a UTV, ATV, or Side-by-Side, proper installation is vital to the performance and safety of your vehicle.

Important:
Warning: Failure to follow manufacturer-specified installation procedures and safety requirements can result in mechanical failure, loss of vehicle control, serious injury, or death.

Important Fitment Disclosure

At Witchdoctors, we want to ensure you get back on the road or trail as quickly as possible. Correct fitment is the most critical step in purchasing parts for your Victory® or Indian® Motorcycle. Also for your Polaris®, CFMoto®, Arctic Cat®, Yamaha®, Honda®, Can-Am®, Kawasaki® UTV and ATV.

Verification Required: While we strive for 100% accuracy, vehicle manufacturers often make mid-year production changes. Always verify your specific year, make, and model before finalizing your order.
Read More

Shipping

Qualifying Retail orders $159.99 or more will receive free ground shipping. Free Shipping Terms and conditions.

All orders over $500 will require a signature.

Please see International Shipping page for orders shipping outside the US.

See our full Shipping Policy page for further details.

Product Availability

We show real time product availability. These products normally ship the same business day but may ship from one of our warehouses across the country. If an item requires additional processing time you will be notified.

Returns

If your order arrives and it is not right, we will we'll fix it. We promise!

Doesn't fit or just not happy with it? You can return any new, unopened, unused or unaltered item within 30 business days of delivery receipt of your item. We will issue a refund to your original payment method.

See our full Return Policy for all of the pertinent details.
