James Gaskets Beaded Cam Cover Gasket for Victory (SKU JGI-58118-14-VIC)

Stop oil leaks the right way with the James Gaskets Beaded Cam Cover Gasket for Victory. James Gaskets is a respected name in motorcycle gaskets and seals, known for precise fit and durable materials.

Oil leaks on a Victory Freedom V-twin usually start at a cover gasket, an O-ring or a shaft seal. Heat cycles harden rubber and compress gaskets, and every time a cover comes off the old seal is spent. A quality replacement gasket or seal is the cheapest insurance against drips, low oil and a dirty engine.

At a Glance

  • Brand: James Gaskets
  • SKU: JGI-58118-14-VIC
  • Product type: Engine Gaskets & Seals
  • Fits: Victory Steel-Frame Cruisers 2004–2017; Victory Cross Bikes 2010–2017; Victory V92 2003
  • Use: Cam cover removal for tensioner or cam service

About This Beaded Cam Cover Gasket

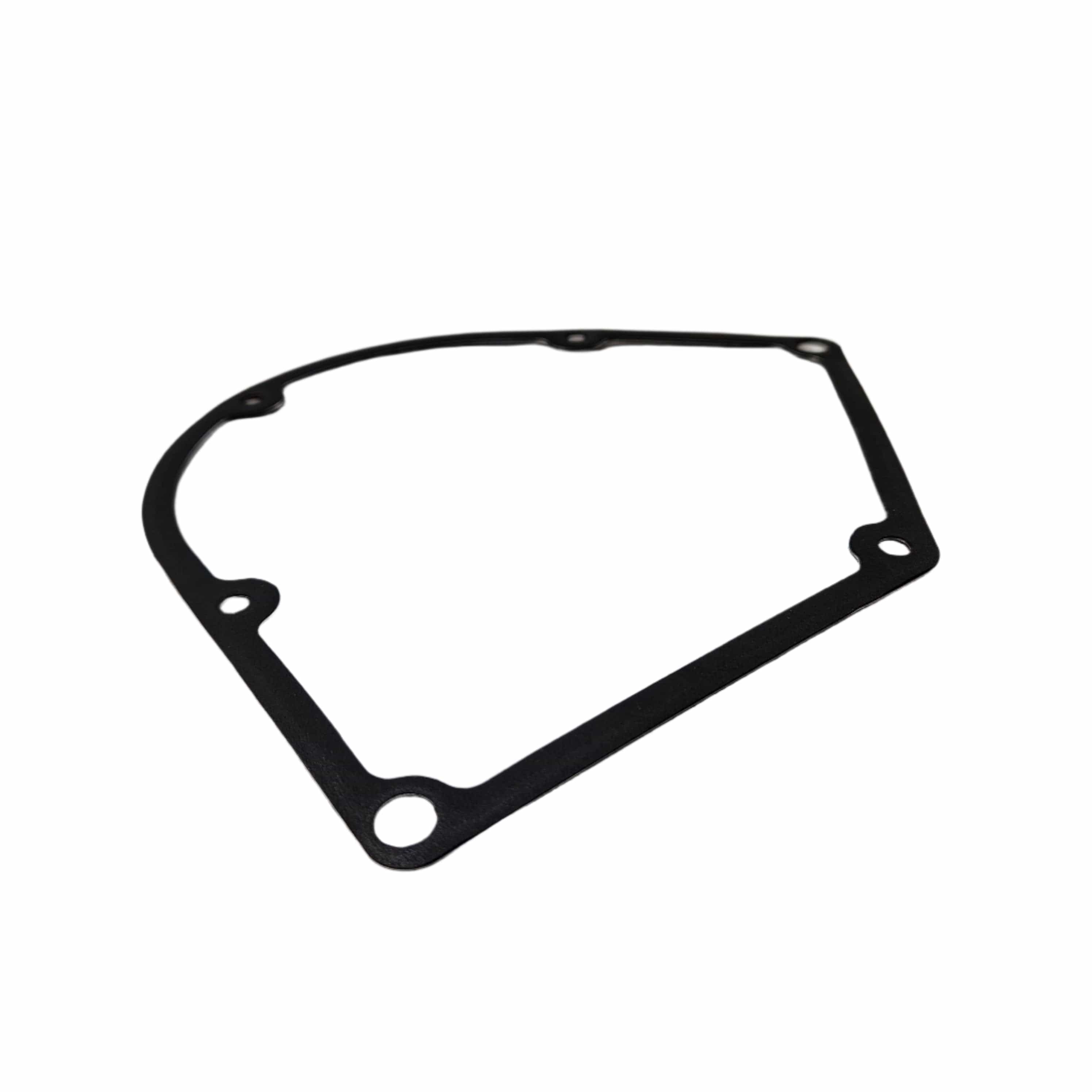

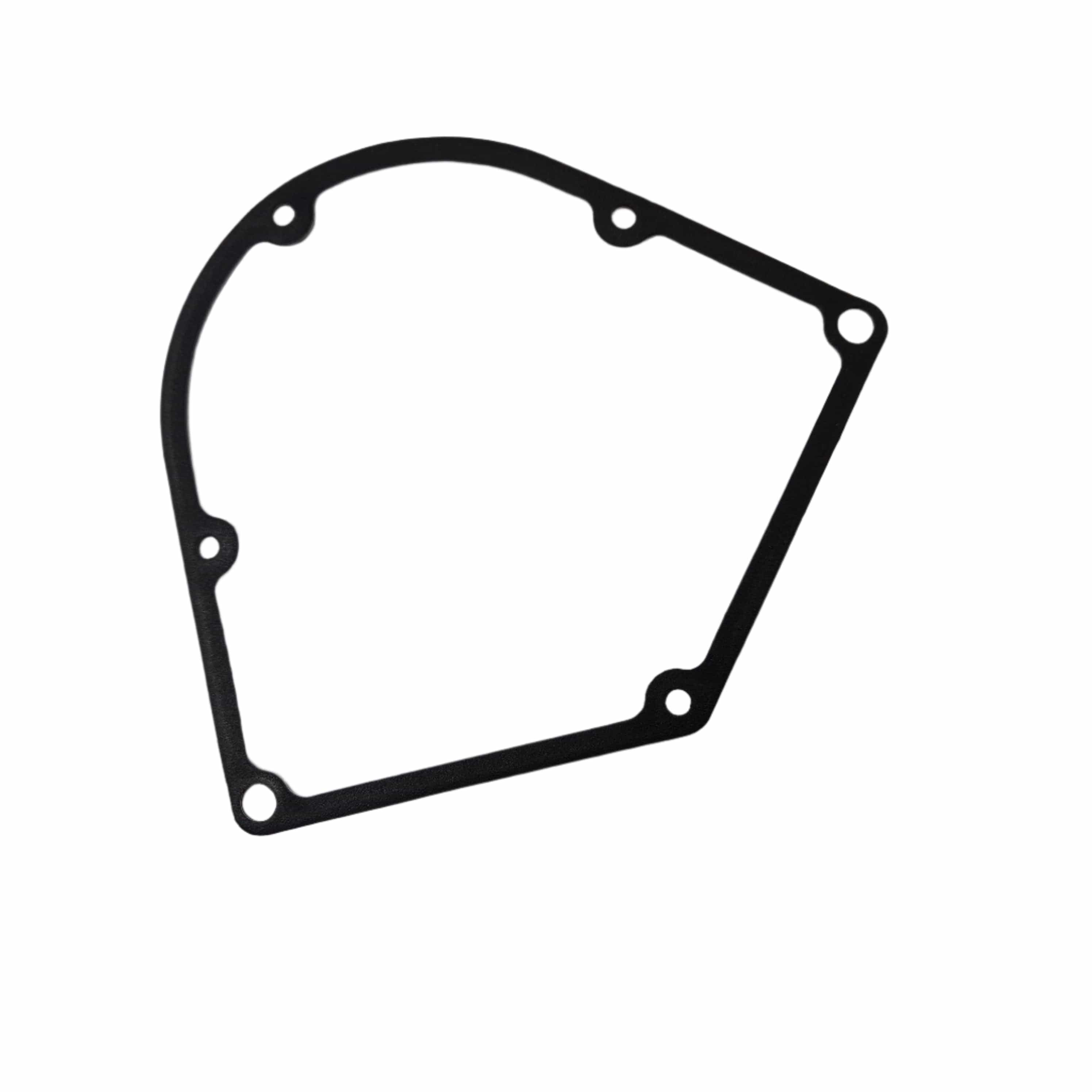

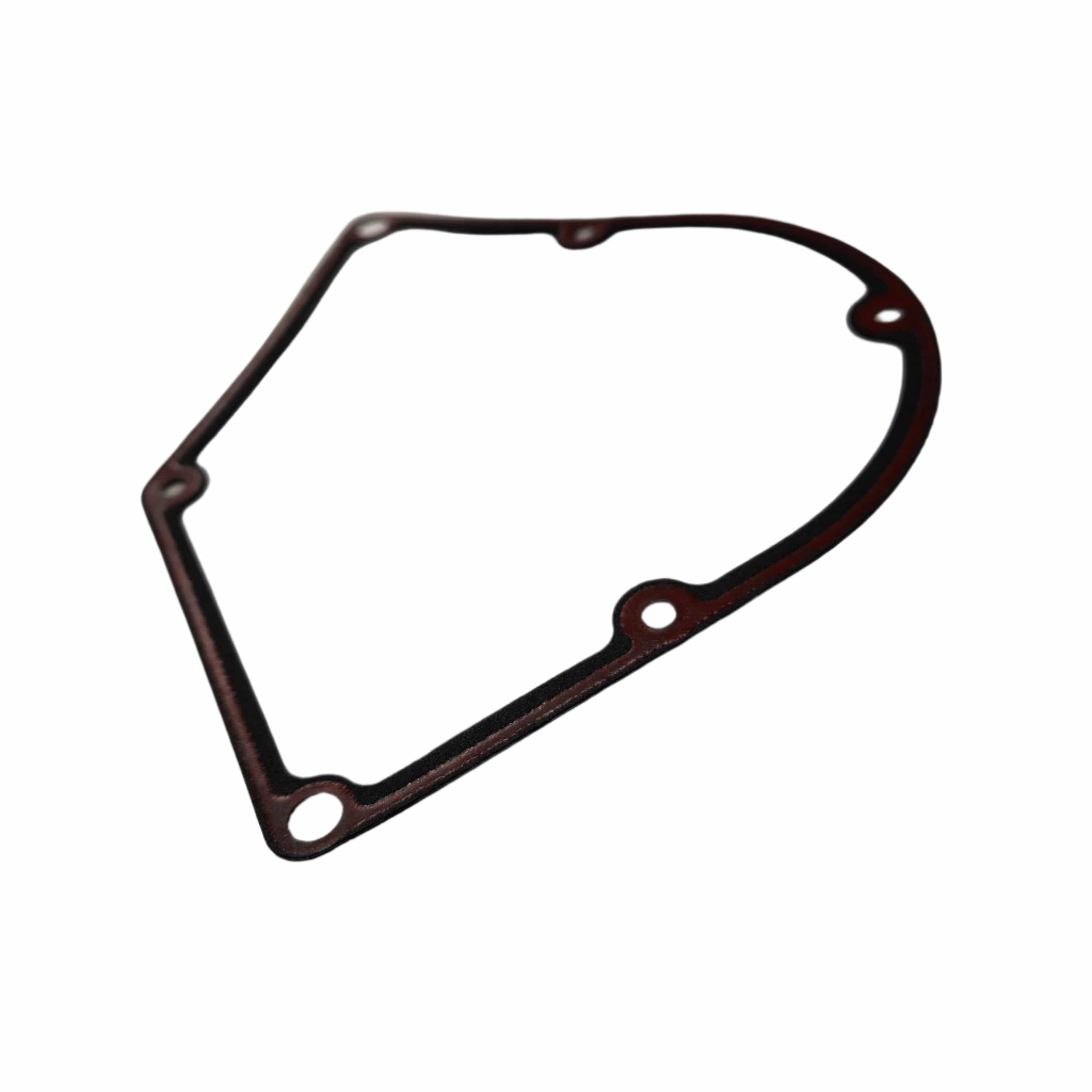

The cam cover gasket seals the cam side of the Victory Freedom engine. This James Gaskets version has a raised sealing bead that concentrates clamping force and helps seal small surface imperfections, reducing the chance of seepage after reassembly.

When to Replace It

  • Cam chain tensioner or cam work
  • Any time the cam cover is removed
  • Oil seeping along the cam cover edge

Fitment

Listed for the Victory models below. Confirm your model and year, or contact us with your VIN before ordering.

Model Model Years
Victory Boardwalk 2013–2015
Victory Cross Country 2010–2017
Victory Cross Roads 2010–2014
Victory Gunner 2015–2017
Victory Hammer 2005–2017
Victory Hard-Ball 2012–2013
Victory High-Ball 2012–2017
Victory Jackpot 2006–2016
Victory Judge 2013–2017
Victory Kingpin 2004–2012
Victory Magnum 2015–2017
Victory V92 Ca Classic Cruiser 2003
Victory Vegas 2004–2017
Victory X1 2015–2017

Why Choose James Gaskets?

  • Precise fit for the listed applications
  • Durable materials made for engine heat and oil
  • Beaded designs on select gaskets for a better seal
  • A trusted name among V-twin mechanics

James Gaskets has made gaskets, seals and O-rings for V-twin motorcycles for decades. Witchdoctors stocks James Gaskets parts for Victory motorcycles because they fit right and seal reliably.

Signs You Need a New Gasket or Seal

  • Oil drips or wet spots under the engine
  • Oil seeping along a cover edge
  • Oil on the shifter, clutch arm or boots
  • A cover was removed and the old gasket or O-ring was reused

Installation Overview

  1. Let the engine cool and drain oil if the job requires it.
  2. Remove the cover or old seal following your service manual.
  3. Clean all sealing surfaces completely, removing every bit of old gasket material without scratching the aluminum.
  4. Install the new gasket, O-ring or seal and torque fasteners to spec in a cross pattern.
  5. Refill oil, run the engine and check for leaks after the first ride.

Not sure about doing it yourself? Read when to seek professional help or DIY.

Tips from the Witchdoctors Garage

  • Use a plastic scraper on aluminum covers.
  • Never reuse a gasket, O-ring or crush washer.
  • Use a torque wrench; overtightening crushes gaskets and cracks covers.
  • Clean bolt holes so fasteners reach full torque.
  • Recheck cover bolts after the first heat cycle if your manual allows.

More James Gaskets Parts for Victory

Complete the Job

Helpful Guides from the Witchdoctors Blog

Frequently Asked Questions

What is the part number?

The SKU is JGI-58118-14-VIC.

Is this genuine James Gaskets?

Yes. Witchdoctors sells genuine James Gaskets products.

Should I use sealant with this gasket?

Most James gaskets install dry. Use sealant only where your service manual calls for it.

Can I reuse my old gasket or O-ring?

No. Gaskets and O-rings compress and harden in service and should be replaced whenever a cover is removed.

Will this fit my Victory?

See the fitment table above. Contact us if you are unsure.

How fast does Witchdoctors ship?

See how long it will take to receive your order for current timing.

Order Today

Keep your Victory dry and leak-free. Order the James Gaskets Beaded Cam Cover Gasket for Victory from Witchdoctors today.
